| Brand Name: | Keysight |
| Model Number: | N5225B |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T，Western Union |

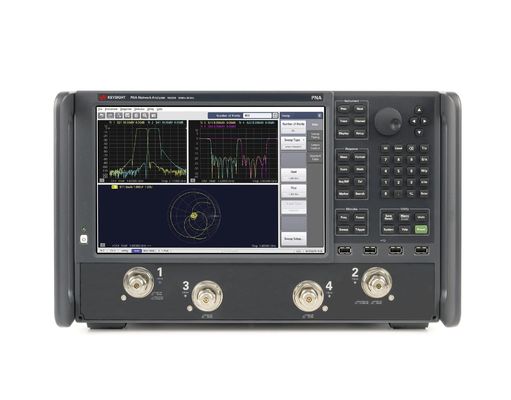

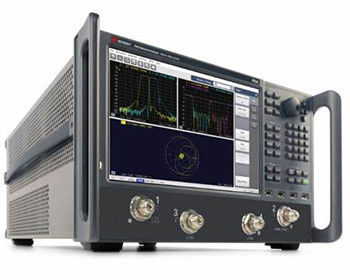

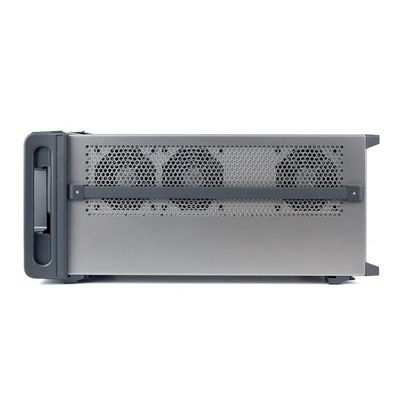

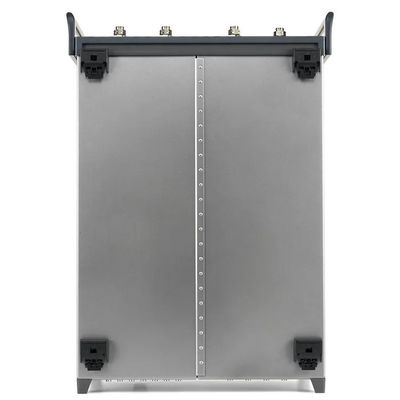

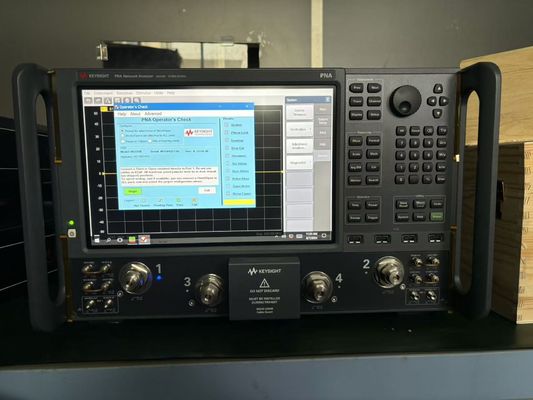

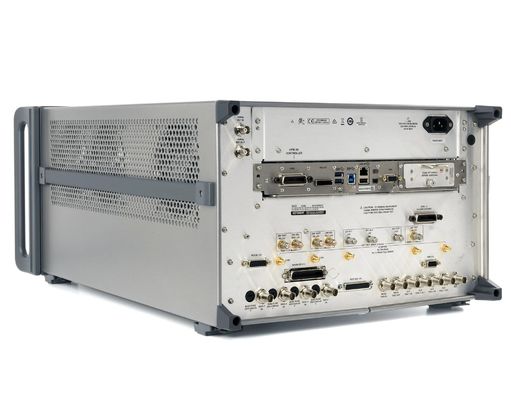

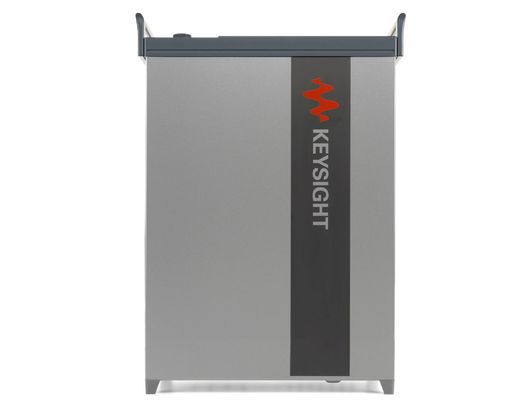

Keysight N5225B PNA Microwave Network Analyzer
10 MHz to 50 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF performance.
Highlights of Keysight N5225B PNA Microwave Network Analyzer
A Powerful Combination of Hardware and Software
The N5225B PNA network analyzer combines integrated hardware and advanced software applications to provide the highest measurement accuracy and speed for active device characterization. Tackle your most troublesome measurement difficulties with the industry-leading capabilities of the N5225 PNA network analyzer. Built-in pulse modulators and pulse generators provide pulsed S-parameter measurements. Examine and resolve nonidealities in your designs by using a diverse set of software applications hosted on the N5225 network analyzer.
Definitions of Keysight N5225B PNA Microwave Network Analyzer
All specifications and characteristics apply over a 25 °C ±5 °C range (unless otherwise stated) and 90 minutes after the instrument has been turned on.
Specification (spec.): Warranted performance. Specifications include guardbands to account for the expected statistical performance distribution, measurement uncertainties, and changes in performance due to environmental conditions.
Characteristic (char.): A performance parameter that the product is expected to meet before it leaves the factory, but that is not verified in the field and is not covered by the product warranty. A characteristic includes the same guardbands as a specification.
Typical (typ.): Expected performance of an average unit which does not include guardbands. It is not covered by the product warranty.
Nominal (nom.): A general, descriptive term that does not imply a level of performance. It is not covered by the product warranty.
Supplemental performance data (SPD): A performance parameter that is tested on a minimal set of products during design validation. It does not include guardbands, and is not covered by the product warranty.
Calibration: The process of measuring known standards to characterize a network analyzer's systematic (repeatable) errors.
Corrected (residual): Indicates performance after error correction (calibration). It is determined by the quality of calibration standards and how well "known" they are, plus system repeatability, stability, and noise.
Uncorrected (raw): Indicates instrument performance without error correction. The uncorrected performance affects the stability of a calibration.
Standard: When referring to the analyzer, this includes no options unless noted otherwise.
Standard and LFE measurements: With an LFE option, which adds low frequency extension (LFE) hardware, the LFE measurement range overlaps with the standard measurement range from 10 MHz to 100 MHz. With LFE Enabled, measurements from 500 Hz to 100 MHz use LFE hardware. With LFE Disabled, measurements from 10 MHz to 100 MHz use standard hardware. To measure below 10 MHz, LFE must be enabled. All measurements above 100 MHz use standard hardware, regardless of the LFE Enabled/Disabled setting.
Definitions of Keysight N5225B PNA Microwave Network Analyzer
| Option 200 | 2-port base model with standard test set |
| Option 201 | To base model, adds front-panel jumpers and R1 receiver switch |
| Option 217 | To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range) |
| Option 219 | To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees |
| Option 400 | 4-port base model with standard test set |
| Option 401 | - To base model, adds front-panel jumpers and R1 receiver switch |
| Option 417 | To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range) |
| Option 419 | To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees |
FAQ:
1. Can you ship the order to Canada or Australia?
Yes, we can. We send orders worldwide.
2. What delivery method do you use ? and delivery time?
We can ship by EMS, DHL, FedEx, UPS, and TNT with tracking numbers. The usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
|
|
