Keysight 104 DB PNA Network Analyser , Agilent E8364B VNA Tester

Keysight 104 DB PNA Network Analyser , Agilent E8364B VNA Tester

  • Keysight 104 DB PNA Network Analyser , Agilent E8364B VNA Tester
  • Keysight 104 DB PNA Network Analyser , Agilent E8364B VNA Tester
Keysight 104 DB PNA Network Analyser , Agilent E8364B VNA Tester
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: E8364B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T,
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: PNA Network Analyzer Frequency: 10 MHz To 50 GHz
Type: Vector Network Analyzer (VNA) Dynamic Range: 104 DB
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Highlight:

Keysight PNA Network Analyser

,

104 dB PNA Network Analyser

,

Agilent E8364B

Keysight Agilent E8364B PNA Network Analyzer 10 MHz to 50 GHz

Description of Keysight Agilent E8364B



Overview and Features of E8364B PNA Network Analyzer

  • 104 dB of dynamic range and <0.006 dB trace noise
  • <26 usec/point measurement speed, 32 channels, 16,001 points
  • TRM/LRM calibration for the most accurate on-wafer, in-fixture, waveguide and antenna measurements
  • Mixer conversion loss, return loss, isolation, and absolute group delay
  • Amplifier gain compression, harmonic, IMD, and pulsed-RF
List of Options
010 Time Domain
014 Configurable Test Set Option (front panel access loops between source output and coupler input)
016 Add Reciever Attenuators (35 dB in 5 dB steps)
022 Extended Memory 512MB
067 67 GHz Upgrade kit for non option 014 test set.
068 67 GHz Upgrade Kit for option 014 and 014/080 Test Sets
080 Frequency- Offset ( for use with mixers, converters and amplifiers)
081 Reference Channel Switch (Adds internal switch to R1 Path)
082 Scalar calibrated converter measurements
083 Frequency Converter Measurement Application S/W
084 Embedded LO measurements
1A7 ISO 17025 Compliant Calibration
1CM Rackmount Kit
1CP Rackmount and Handle Kit
550 4 Port Measurement Application (Enables full 4-port error correction and differential measurements on 2 Port N/A.)
551 Adds N-port calibrated measurements
700 Standard test set
720 Extended Memory 512 MB
810 Standard test set and standard power range (700+711)
811 Standard test and extended power range (700-UNL)
812 Configurable test set deck and standard power range ( 014-711 )
813 Configurable test set deck and extended power range (014-UNL)
830 Option Bundle Package of UNL, 014,016,080,081,and H11
831 Option Bundle Package of UNL, 014,080,081,and H11
A6J ANSI Z540 compliant calibration with test data
AB1 Korea Quick Users Guide (Korean localization)
AB2 China Quick Users Guide (Chinese localization)
ABA U.S. Quick Users Guide (English localization)
ABD Germany Quick Users Guide (German localization)
ABE Spain Quick Users Guide (Spanish localization)
ABF France Quick Users Guide (French localization)
ABJ Japan Quick Users Guide (Japanese localization)
ABZ Italy Quick Users Guide (Italian localization)
H08 Pulsed-RF measurement capability
H11 IF Access (for antenna,point in pulse,pulse profile and broadband MM wave measurements.)
H85 High Power Option w/o Bias Tees. (allows RF Amplifiers between RF Source and Coupler Input)
N4688A USB CD R/W drive, an external read/write CD drive with a USB cable
N4689A USB Hub for connecting additional USB peripherals to PNA network analyzer
P02 2 Port unit
R-51B-001-3C 1 year Return-to-Agilent warranty extended to 3 years
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data
UNL High Power Measurement w/ Bias tees Configuration (Allows Ext. Amplifiers between RF Source and Coupler Input)
Z5623A-H81 2 GHz - 20 GHz Uni Directional Pulse Test Set
Z5623A-H83 2 GHz - 20 GHz Dual Directional Pulse Test Set.
Z5623A-H84 2GHz-40 GHz Dual Directional Pulse Test Set
Z5623A-H85 1GHz-40 GHz Dual Directional Pulse Test Set
Z5623A-H86 2GHz-40 GHz Uni Directional Pulse Test Set
Z5623A-H87 1GHz-50 GHz Dual Directional Pulse Test Set
Z5623A-H88 1GHz-50 GHz Dual Directional Pulse Test Set (No HPIB)
Z5623A-H89 10 MHz - 5 GHz Uni Directional Pulse Test Set (no HPIB)
Z5623A-H90 1GHz-50 GHz Dual Directional Pulse Test Set (Test Ports on Test Set)



FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .

Keysight 104 DB PNA Network Analyser , Agilent E8364B VNA Tester 0

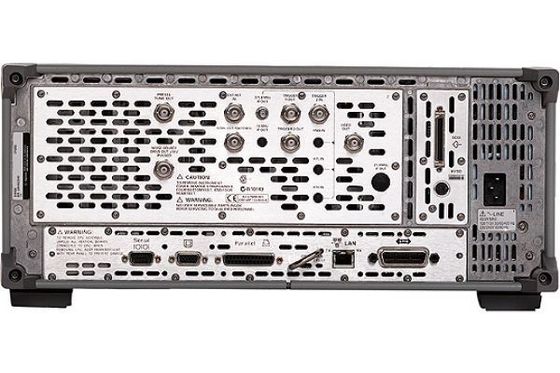

Keysight 104 DB PNA Network Analyser , Agilent E8364B VNA Tester 1
