| Place of Origin: | Malaysia |
| Brand Name: | Keysight (Agilent) |
| Model Number: | 8711b |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | in stock |
| Product Name: | Economy Network Analyzer | Form Factor: | Rackmount ( /1CM ) |
|---|---|---|---|
| Frequency: | 300 KHz - 1.3 GHz | System Dynamic Range: | 100 DB |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |
| High Light: | Rackmount Vector Network Analyzer,100dB Vector Network Analyzer,8711B |
||

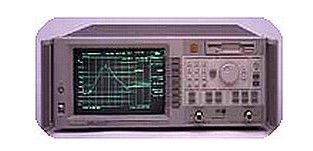

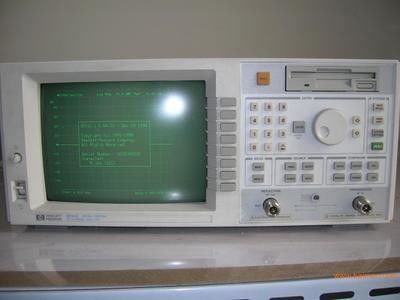

Keysight Agilent 8711B Economy Network Analyzer 300 KHz - 1.3 GHz
Description of Keysight Agilent 8711B
The 8711B RF Network Analyzer 300kHz to 1300MHz frequency range, 1Hz frequency resolution, 0dBm to 16dBm power range, 100dB of system dynamic range, Integrated transmission / reflection test set, Built-in 3.5 inch floppy disk drive, HPIB.
The 8711B economy network analyzers provide speed, accuracy, and measurement versatility in a compact, integrated instrument for high-volume RF component manufacturing, inspection, and maintenance. An integrated synthesized source and transmission/ reflection test set enable complete swept frequency characterization of RF components with a single connection. For testing narrowband devices, the internal synthesized source provides a fast (50 ms/sweep), stable (1 Hz resolution) stimulus. Calculate and display specified device characteristics in real time. Eight markers per channel, marker search, tracking, bandwidth, and a variety of math functions speed component testing.
Overview and Features of 8711B Economy Network Analyzer
Number of display channels
Two display channels are available.
Measurements
•Narrowband: reflection (A/R),transmission (B/R),A,B, R,
•Broadband: X, Y, Y/X, X/Y, Y/R*, power (B*, R*), conversion loss (B*/R*)
Formats Rectilinear:
log/linear magnitude, SWR, real and imaginary, and dBv, dBmv and dBuv (75 ohm only)
Data markers
Each display channel has eight markers. Markers are coupled between channels. Any one of eight markers can be the reference marker for delta marker operation. Annotation for up to four markers can be displayed at one time.
Marker functions
Markers can be used for various functions: marker search, mkr to max, mkr to min, mkr → target, mkr bandwidth and notch. Also with user-defined target values, mkr → center, mkr → reference, mkr → electrical delay are available. The tracking function enables continuous update of marker search values on each sweep. For testing cable TV broadband amplifiers, the slope and flatness functions enable rapid tuning. Marker statistics enable measurement of the mean, peak-to-peak and standard deviation of the data between two markers.
Storage
Internal memory 400 Kbytes of nonvolatile storage are available to store up to 100 instrument states via the save/recall menu. Instrument states include all control settings, active limit lines, memory trace data, active calibration coefficients, and custom display titles.
| 0B0 | Do not include manuals |
| 0B1 | Add Manual Set |
| 0Q8 | Factory Delivered Service Training |
| 100 | Fault Location and Structural Return Loss (SRL) |
| 1C2 | HP Instrument BASIC |
| 1CF | Soft carrying case |
| 1CL | Add keyboard |
| 1CM | Rackmount Kit |
| 1DA | 50 ohm AM Delay capability |
| 1DB | 75 ohm AM Delay capability |
| 1E1 | Step Attenuator |
| 1EC | 75 Ohm output impedance |
| 1FP | NFA Series Calibration, performance verification and adjustment software |
| AFN | Add Extra Economy 50 Ohm Cable and Type-N (f-f) Adapter |
| AFP | Add Extra Economy 75 Ohm Cable and Type-N (f-f) Adapter |
| H21 | |
| UK6 | Commercial calibration with test results data |
| W08 | 1 year on-site warranty converted to 3 year return-to-Agilent warranty |
