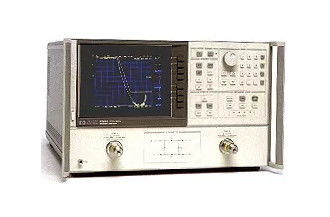

Benchtop VNA Network Analyzer Microwave Keysight Agilent 8720C

Benchtop VNA Network Analyzer Microwave Keysight Agilent 8720C

  • Benchtop VNA Network Analyzer Microwave Keysight Agilent 8720C
  • Benchtop VNA Network Analyzer Microwave Keysight Agilent 8720C
Benchtop VNA Network Analyzer Microwave Keysight Agilent 8720C
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: 8720C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Microwave Network Analyzer Frequency: 50MHz To 20GHz
Form Factor: Benchtop Type: Vector Network Analyzer (VNA)
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Benchtop Vector Network Analyzer

,

8720C Vector Network Analyzer

,

Agilent VNA Microwave

Keysight Agilent 8720C Microwave Network Analyzer 50MHz To 20GHz



Description of  Keysight Agilent 8720C



The Keysight 8720C vector network analyzer characterizes RF and microwave components down to 50 MHz and up to 20 GHz. This analyzer includes a fast-sweeping synthesized source, S-parameter test set, tuned receiver, and large color display in a single package. The Keysight 8720C is an ideal choice for cost- and space-conscious engineers in research and development, manufacturing, incoming inspection, or quality assurance.



Overview and Features of 8720C Microwave Network Analyzer



  • Fast-sweeping built-in synthesized source with optional 1 Hz frequency resolution
  • Integrated switching test set measures all four S-parameters with a single connection
  • Vector accuracy enhancement
  • Optional time domain capability computes and displays response versus time or distance
  • Optional solid state switch allows simultaneous measurement of forward and reverse parameters and continuous update for all four s-parameters as required for two-part error correction
  • Productivity is enhanced with pass/fail testing, direct printer/plotter output of results, advanced marker functions, and save/recall of test configurations.
  • Two independent display channels for simultaneous measurement of reflection and transmission characteristics

The Agilent 8720C Option H85 is a modified version of the standard Agilent 8720C Vector Network Analyzer.

The purpose of Option H85 is to provide high-power measurement capability. This document describes Option H85 operating features and performance specifications that differ from those of the standard 8720C Network Analyzer.

Refer to the 8720C User’s Guide (Agilent Part No. 08720-90157) for all other features and specifications.

The 8720C Option H85 has three different operating configurations:

• Bypass

• Single Connection Multiple Measurement (SCMM)

• High Power All three configurations have a frequency range of 50 MHz to 20 GHz.

Benchtop VNA Network Analyzer Microwave Keysight Agilent 8720C 0



List of Options



001 1Hz Frequency Resolution
003 High Dynamic Range Capability.
006 Solid-state Switching Test Set
010 Time Domain Capability
011 Direct-Access Receiver Config
0Q8 Factory Delivered Service Training
1BN Military Standard 45662A Calibration Certification
1BP Military Standard 45662A Calibration with Test Data
802 Add HP 9122C Dual Disk Drive
830 Add 85052D Cal Kit and 85131E Cable
8ZE Factory Refurbished
910 Additional operating and service manual
913 Rack Mount Flange Kit
C02 Direct Sampler Access
H03 High Forward (S21)Dynamic Range
H85 High-Power Handling Capability
H87 High-Power Mixer Test Set
H88 Hi-Power Direct Sampler Access
H89 Mixer Test Set
UK6 Commercial calibration with test results data
W08 1 year on-site warranty converted to 3 year return-to-Agilent warranty

FAQ:

1. Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
