110GHz Scalar Vector Network Analyzer Keysight Agilent 8757D With Color Display

Brand Name: Keysight (Agilent)
Model Number: 8757D
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Malaysia
Product Name:
Scalar Network Analyzer
Frequency:
110 GHz
Form Factor:
Benchtop
Type:
Scalar Network Analyzer (SNA)
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:

110GHz Vector Network Analyzer

,

Scalar Vector Network Analyzer

,

Color Display Scalar Network Analyzer

Product Description

Keysight Agilent 8757D Scalar Network Analyzer 110 GHz Color Display



Description of  Keysight Agilent 8757D



The Keysight 8757D scalar network analyzer allows you to measure insertion loss, gain, return loss, SWR, and power quickly and accurately . With high-performance detectors and directional bridges, and a companion Keysight source and printer, this analyzer becomes the basis of a complete measurement system with superb performance.

Setup time is reduced by external disk save/recall, and measurement data can be sent directly to a printer while you proceed to the next measurement.

You can configure your system using a Keysight PSG signal generator with ramp sweep capability. The dynamic range can be extended from 75 dB to 83 dB using the PSG's high power option.



Overview and Features of 8757D Scalar Network Analyzer 110 GHz

  • Up to 83 dB dynamic range
  • Buffered plotter/printer output
  • Built-in limit testing for quick pass/fail decisions
  • External disc and internal register save/recall of test setups
  • Color display
  • Optional internal power meter calibrator and precision detectors provide near power meter accuracy

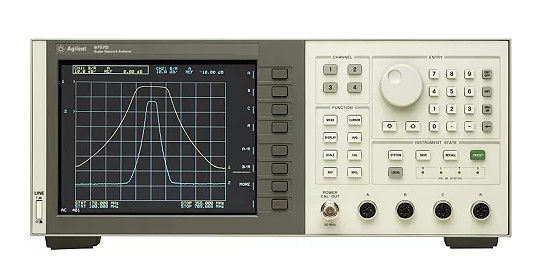

110GHz Scalar Vector Network Analyzer Keysight Agilent 8757D With Color Display 0

Display modes

All analyzer display channels can display any one of the detector inputs or any ratio combination of detector inputs.

Log magnitude

dBm: single channel power measurement dB: relative power measurement (ratio or relative to trace memory)

SWR

Relative measurements (normalized or ratio measurements) can be displayed in SWR. Channels 1 and 2 only: 401 points or fewer

AUX voltage

The rear panel BNC input ADC IN can be measured and displayed in volts (–10 to +10 volts). Typical maximum error is 60 mV. Color settings Up to 8 operator-selectable colors are available for LCD attributes, such as the grid, measurement traces, and labels



List of Options





001 Fourth Detector Input
002 Internal Power Calibrator
012 add fourth detector and internal power calibrator
0Q8 Factory Delivered Service Training
1BN Military Standard 45662A Calibration Certification
1BP Military Standard 45662A Calibration with Test Data
802 HP 9122C disk drive and GPIB cable
85022A System Cable Kit
908 Rack Flange Kit for Use without Handles
910 Additional operating and service manual
913 Rack Mount Flange Kit
E02 Scalar Network Analysis System
LCD LCD panel
UK6 Commercial calibration with test results data
W30 3 Years Return for Repair Service
W50 5 Year Customer Return Repair Service
W52 5 Years Return for Calibration Service



FAQ:

1. Can you ship order to Canada or Australia ?

    Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below .

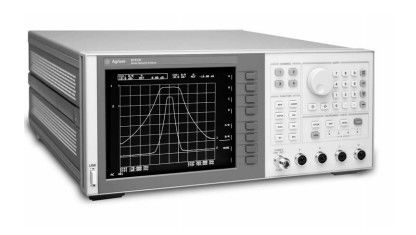

110GHz Scalar Vector Network Analyzer Keysight Agilent 8757D With Color Display 1

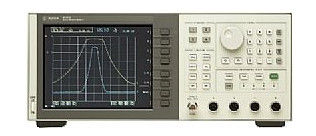

110GHz Scalar Vector Network Analyzer Keysight Agilent 8757D With Color Display 2





110GHz Scalar Vector Network Analyzer Keysight Agilent 8757D With Color Display 3
