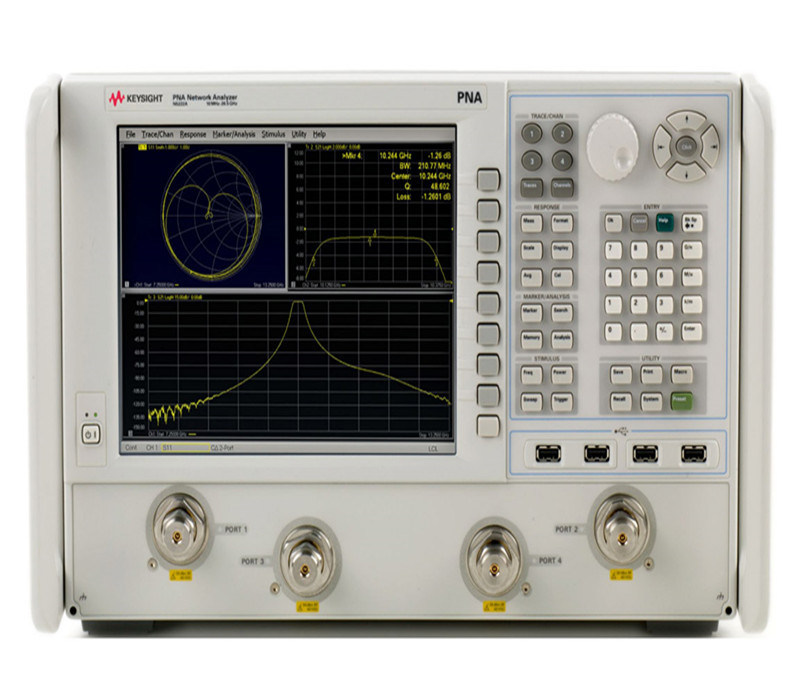

Keysight (Agilent) N5222A 10MHz-26.5GHz Microwave Network Analyzer
| Brand Name: | Agilent |
| Model Number: | N5222A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
Keysight N5222A network analyzer
,26.5GHz microwave network analyzer
,vector network analyzer with warranty
Keysight (Agilent) N5222A 10MHz-26.5GHz Microwave Network Analyzer
Description of Keysight (Agilent) N5222A
Key Features & Specifications
- 10 MHz to 26.5 GHz
- 2-ports with single source or 4-ports with two built-in sources
- 127 dB system and 132 dB receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth
- High output power (+13 dBm) and a wide power sweep range (38 dB)
- Best dynamic accuracy: 0.1 dB compression with +12 dBm input power at the test port
- Low noise floor of -114 dBm at 10 Hz IF bandwidth
Highest performance network analyzer that meets your budget
The PNA Series is the highest-performing microwave network analyzer in the industry for passive and active device test. You can choose from five frequency models, 13.5, 26.5, 43.5, 50, or 67 GHz, and customize your PNA with the just the right level of performance to meet your specific budget and measurement needs.
The Agilent PNA is used to test a wide variety of passive and active devices such as filters, duplexers, amplifiers and frequency converters. The high-performance characteristics of the PNA make it an ideal solution for these types of component characterizations as well as millimeter-wave, signal integrity and materials measurements.
Most accurate S-parameter measurements
The PNA Series provides high-power sources and the best linear receivers, giving it the most accurate S-parameter measurements with the widest power range in the market.
Applications
- S-parameters (CW and pulsed)
- Noise figure
- Gain compression
- Intermodulation and harmonic distortion
- Conversion gain/loss
- True-differential stimulus
- Millimeter-wave
- Material measurements
- Signal integrity
- Antenna test
List of options of Keysight (Agilent) N5222A
| 007 | Automatic Fixture Removal |
| 008 | Pulsed-RF Measurements |
| 010 | Time Domain |
| 015 | Dynamic Uncertainty for S-Parameter Measurements |
| 020 | Add IF inputs |
| 021 | Add pulse modulator to internal first source |
| 022 | Add pulse modulator to internal second source |
| 025 | Add four internal pulse generators |
| 028 | Noise figure measurements using standard receivers |
| 080 | Frequency- Offset ( for use with mixers, converters and amplifiers) |
| 082 | Scalar calibrated converter measurements |
| 083 | Vector and scalar calibrated converter measurements |
| 084 | Embedded LO measurements |
| 086 | Gain compression application |
| 087 | Intermodulation distortion measurements |
| 088 | Source phase control |
| 089 | Differential and I/Q devices application |
| 090 | Spectrum Analyzer |
| 093 | Extended Spectrum Analyzer to 110 GHz |
| 094 | Extended Spectrum Analyzer above 110 GHz |
| 118 | Fast CW Mode |
| 200 | 2 ports, single source, base hardware configuration |
| 201 | 2-Ports, Single Source with Configurable Test Set |
| 210 | 2 ports, single source, with metrology configuration |
| 217 | 2-Ports, Single Source, Configurable Test Set with Extended Power Range |
| 219 | 2-Ports, Single Source, Configurable Test Set, Extended Power Range, Bias-Tees |
| 301 | Application for use with standard CalPods |
| 302 | Application for use with temperature-characterized CalPods |
| 400 | 4-Ports, Dual-Source, Base Configuration |
| 401 | 4-Ports, Dual-Source with Configurable Test Set |
| 417 | 4-Ports, Dual-Source, Configurable Test Set with Extended Power Range |
| 419 | 4-Ports, Dual-Source, Configurable Test Set, Bias Tees with Extended Power Range |
| 460 | Integrated true-mode stimulus application |
| 551 | N-port calibrated measurements |
| 897 | Built-in performance test software for inclusive calibration, perpetual license |
| 898 | Built-in performance test software for standards compliant calibration, perpetual license |
| W7X | Windows 7 operating system |
| WXP | Windows XP operating system |
