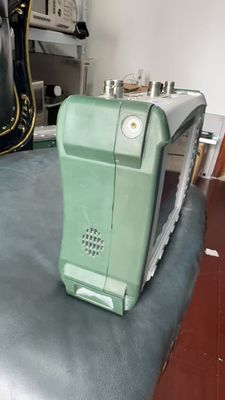

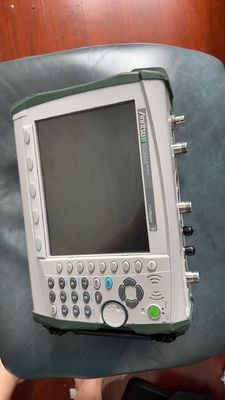

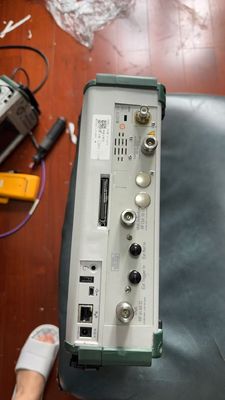

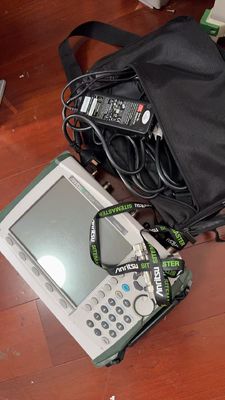

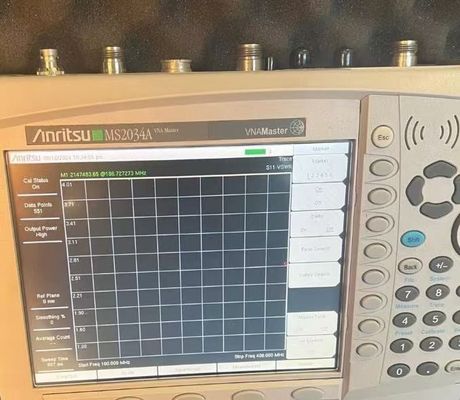

The Anritsu MS2034A VNA Master is a handheld vector network analyzer (VNA), with broad spectrum analysis (9 kHz to 4 GHz) capability. The MS2034A uses the superior Frequency Domain Reflectometry (FDR) approach instead of the DC pulse technique of older Time Domain Reflectometry (TDR) approaches. Using FDR, the VNA Master provides convenient 1-port measurements of return loss, VSWR, cable loss, Distance-To-Fault (DTF), and Smith Chart measurements in the field. Connect the VNA Master to a 2-port cable to measure cable loss, phase, and group delay. In other words, the VNA Master offers precise measurement capabilities for cables and antennas by simplifying S11 and S21 measurements in the field.

The MA2034A VNA Master employs vector correction after an open short-load calibration to ensure accuracy, repeatability, and overall quality of 1-port and 2-port measurements. As an improvement over traditional scalar measurement approaches, the MS2034A VNA Master removes all the systematic errors associated with the 1-port reflection measurements, including directivity, source match, and reflection tracking. Additionally, the MS2034A VNA Master removes transmission response errors and transmission source match errors (i.e., a 1-path, 2-port correction) when conducting 2-port transmission measurements. The vector correction of the MS2034A VNA Master offers superior measurement accuracy for detecting problems or phase matching cables in a convenient handheld product so you can perform VNA measurements anywhere, anytime.

In addition to cables and antennas, the typical communication system also contains more sophisticated transmitters, receivers, and signal separation components. These additional components increase the complexity of the overall system, which becomes especially difficult to maintain when there is an intermittent problem. A field-friendly spectrum analyzer can simplify this task. The VNA Master plus Spectrum Analysis (i.e., MS203xA) adds the capability to conduct spectrum analysis in the field to the already powerful MS202xA! Don’t let the small footprint fool you, this instrument offers performance and features that rivals bench-top alternatives for simplifying spectrum monitoring, interference analysis, and other general purpose signal measurements in the field. The VNA Master offers broad spectrum analysis frequency coverage, impressive dynamic range, and excellent phase noise performance from 9 kHz to 7.1 GHz. The VNA Master plus Spectrum Analysis includes many standard measurements. These measurements include field strength, occupied bandwidth, channel power, adjacent channel power ratio, and carrier to interference (C/I) ratio. In addition, the built-in AM/FM/SSB demodulator simplifies the task of identifying interfering signals. Overall, the VNA Master is a powerful handheld tool for general purpose spectrum analysis anywhere, anytime.

The MS2034A VNA Master performs a variety of RF measurements aimed at simplifying the task for the technician and engineer. VNA Master MS2034A is the first handheld VNA to display 1-port and 2-port S-parameter measurements. A single key selection on the bottom hard keys brings up all the RF measurements you need, whether you are performing flight-line test, cable and antenna maintenance, or S-parameters in the lab.

Features

• Two-Port Vector Network Analysis (2 MHz to 4 GHz)
• Optional Vector Voltmeter (VVM) mode
• Handheld Battery-Operated RF Test Solution
• Large 8.4 in. Full-Color TFT Display Screen
• 256 MB Storage
• Convenient VNA Measurements Anywhere, Anytime
• Typical Vector Network Analyzer Measurements
• Powerful data management software for storing and organizing measurement results
• Overlay traces and further optimize displays without re-taking measurements
• Broad Spectrum Analysis (9 kHz to 4 GHz)
• Optional power monitor measurements (1 MHz to 20 GHz)
• Optional high accuracy power meter, PSN50 and MA24106A power sensors (50 MHz to 6 GHz)
• Optional Vector Voltmeter (VVM) mode
• Ergonomically designed controls

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
