Vector Network Analyzer
Created with Pixso. Keysight E5080B VNA Complete Measurement Solution for Passive Components Amplifiers and Mixers with Integrated DC Sources 4-port test set, 9 kHz to 20 GHz with second source 4K0
Detail Information
Place of Origin:
Malaysia
Certification:
ISO17025
Frequency Range:
9 KHz To 20 GHz
VNA Type:
Benchtop
Ports:
4 Ports Test Set
Condition:
New
Packaging Details:
Carton
Supply Ability:
In Stock
Highlight:

Mixers VNA

,

Integrated DC Sources VNA

,

Passive Components VNA

Product Description

Keysight ENA Vector Network Analyzer E5080B 4K0 4 port test set 9 kHz to 20GHz

Description of Keysight Vector Network Analyzer E5080B 4K0
  • 9 kHz to 4.5/6.5/9/14/20 GHz, 100 kHz to 26.5/32/44/53 GHz
  • The most flexible and integrated ENA network analyzer
  • Choose from a wide range of measurement application to gain deeper insight into your RF test
  • Second source available on 4-port models (Opt. 4x2)
  • Features the same intuitive GUI as Keysight’s high-performance network analyzers
  • E5071C code compatibility

Maximum Frequency: 53 GHz

Minimum Frequency: 9 kHz / 100 kHz

SA Start Frequency: 9 kHz / 100 kHz

System Dynamic Range: > 140 dB

Output Power: 10 dBm

Trace Noise: 0.0015 dBrms (10 kHz IFBW)

Number of Built-In Ports: 2 or 4 ports (2nd source (optional) on 4-ports)

Harmonics: -25 dBc (Typical)

Best Speed at 201 Point, 1 Sweep: 1.6 msec

Instrument Type: Benchtop

Applications:

  • S-Parameters
  • Signal Integrity
  • Balance Measurements

Components:

  • Cables
  • Antennas
  • Mixers/Frequency Converters
  • Filters/Duplexers
  • Amplifiers
  • Connectors
  • Isolators

System Features:

  • Internal Bias-tees (optional, up to 20 GHz)
  • Built-in DC Sources (optional)
  • GPIB Interface (optional)
  • Device Handler I/O
  • Device Test, Application I/O
  • Removal SSD
  • Digital Interfaces (Ethernet, USB2.0/3.0, DisplayP

DANL @1 GHz: -150 dBm/Hz (Typical)

Phase Noise @1 GHz (1 MHz offset): -128 dBc/Hz (Typical)

Phase Noise @1 GHz (10 kHz offset): -103 dBc/Hz (Typical)

TOI @1 GHz (3rd Order Intercept): +22 dBm

Benchtop: Yes

Temperature Stability: 0.005 dB/ ⁰C (Typical)

Weight: 14 kg (2-port), 15 kg (4-port)

List of Options for E5080B
021 Add pulse modulator to internal 1st source
022 Add pulse modulator to internal 2nd source
090 Spectrum analysis hardware, 9 kHz to 4.5 GHz
091 Spectrum analysis hardware, 9 kHz to 6.5 GHz
092 Spectrum analysis hardware, 9 kHz to 9 GHz
093 Spectrum analysis hardware, 9 kHz to 14 GHz
094 Spectrum analysis hardware, 9 kHz to 20 GHz
095 Spectrum analysis hardware, 100 kHz to 26.5 GHz
096 Spectrum analysis hardware, 100 kHz to 32 GHz
097 Spectrum analysis hardware, 100 kHz to 44 GHz
098 Spectrum analysis hardware, 100 kHz to 53 GHz
120 Add internal bias tees for 2-port E5080B up to 20 GHz
140 Add internal bias tees for 4-port E5080B up to 20 GHz
172 Add GPIB interface
175 Add analog input and output
1A7 Calibration + Uncertainties + Guardbanding
1E5 Add high stability timebase
1NC Equipped with type-N connectors
240 2-port test set, 9 kHz to 4.5 GHz
260 2-port test set, 9 kHz to 6.5 GHz
290 2-port test set, 9 kHz to 9 GHz
2D0 2-port test set, 9 kHz to 14 GHz
2H0 2-port test set, 9 kHz to 18 GHz
2K0 2-port test set, 9 kHz to 20 GHz
2L0 2-port test set, 100 kHz to 26.5 GHz
2M0 2-port test set, 100 kHz to 32 GHz
2N0 2-port test set, 100 kHz to 44 GHz
2P0 2-port test set, 100 kHz to 53 GHz
440 4-port test set, 9 kHz to 4.5 GHz
442 4-port test set, 9 kHz to 4.5 GHz with second source
460 4-port test set, 9 kHz to 6.5 GHz
462 4-port test set, 9 kHz to 6.5 GHz with second source
490 4-port test set, 9 kHz to 9 GHz
492 4-port test set, 9 kHz to 9 GHz with second source
4D0 4-port test set, 9 kHz to 14 GHz
4D2 4-port test set, 9 kHz to 14 GHz with second source
4H0 4-port test set, 9 kHz to 18 GHz
4H2 4-port test set, 9 kHz to 18 GHz with second source
4K0 4-port test set, 9 kHz to 20 GHz with second source
4K2 4-port test set, 9 kHz to 20 GHz with second source
4L0 4-port test set, 100 kHz to 26.5 GHz
4L2 4-port test set, 100 kHz to 26.5 GHz with second source
4M0 4-port test set, 100 kHz to 32 GHz
4M2 4-port test set, 100 kHz to 32 GHz with second source
4N0 4-port test set, 100 kHz to 44 GHz
4N2 4-port test set, 100 kHz to 44 GHz with second source
4P0 4-port test set, 100 kHz to 53 GHz
4P2 4-port test set, 100 kHz to 53 GHz with second source
A6J ANSI Z540-1-1994 Calibration
S96007A Automatic Fixture Removal
S96007B Automatic Fixture Removal
S96010A Time Domain Analysis
S96010B Time Domain Analysis
S96011A Enhanced Time Domain Analysis with TDR
S96011B Enhanced Time Domain Analysis with TDR
S96025A Basic Pulsed-RF Measurements
S96025B Basic Pulsed-RF Measurements
S96029A Noise Figure Measurements with Vector Correction
S96029B Noise Figure Measurements with Vector Correction
S96082A Scalar Mixer/Converter Measurements
S96082B Scalar Mixer/Converter Measurements
S96083A Vector and Scalar Mixer/Converter Measurements
S96083B Vector and Scalar Mixer/Converter Measurements
S96084A Embedded LO Capability
S96084B Embedded LO Capability
S96086A Gain-Compression Measurements
S96086B Gain-Compression Measurements
S96089B Differential and I/Q Device Measurements
S96090A Spectrum Analysis
S96090B Spectrum Analysis
S96552B Multiport Calibration Assistant
U8487A 10 MHz – 50 GHz USB Thermocouple Power Sensor
WIN10

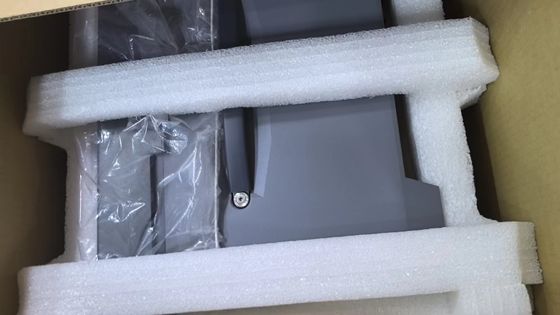

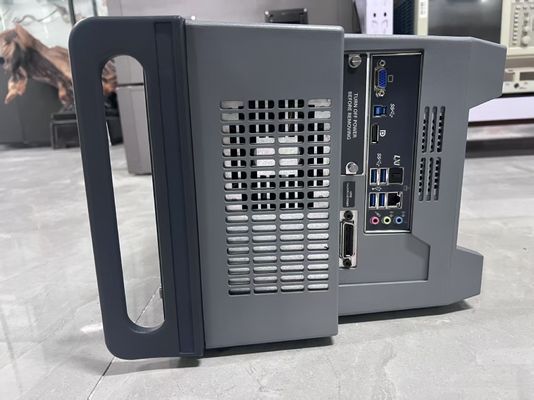

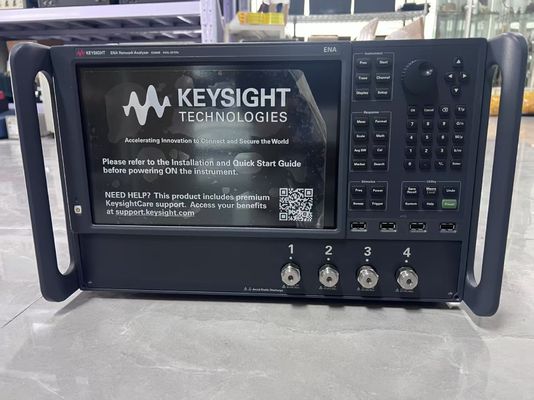

Keysight E5080B VNA Complete Measurement Solution for Passive Components Amplifiers and Mixers with Integrated DC Sources 4-port test set, 9 kHz to 20 GHz with second source 4K0 0Keysight E5080B VNA Complete Measurement Solution for Passive Components Amplifiers and Mixers with Integrated DC Sources 4-port test set, 9 kHz to 20 GHz with second source 4K0 1Keysight E5080B VNA Complete Measurement Solution for Passive Components Amplifiers and Mixers with Integrated DC Sources 4-port test set, 9 kHz to 20 GHz with second source 4K0 2
