| Place of Origin: | Germany |
| Brand Name: | Rohde and Schwarz |
| Model Number: | ZVA50 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | in stock |
| Product Name: | Vector Network Analyzer | Frequency: | 300 KHz - 50GHz |
|---|---|---|---|
| Type: | Vector Network Analyzer (VNA) | Shipping Weight: | 37kg |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |

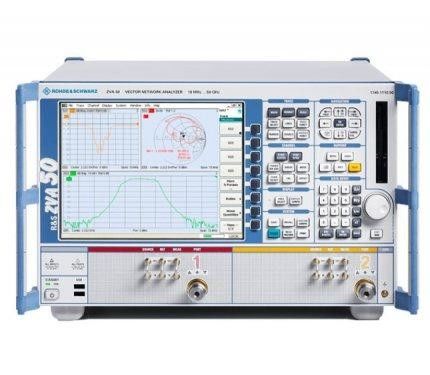

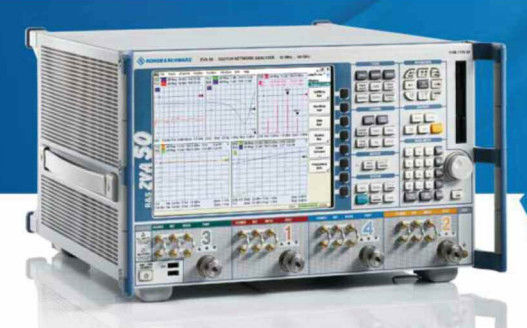

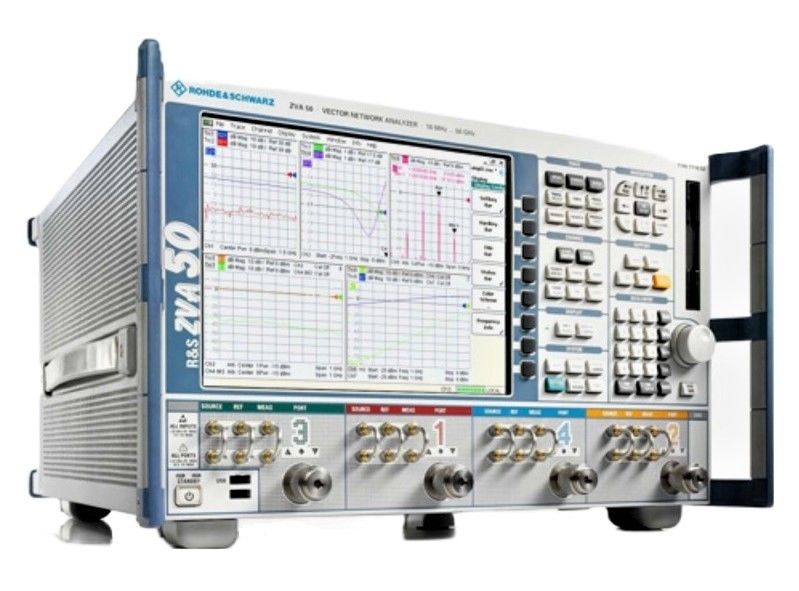

Description of Rohde And Schwarz ZVA50
The new R&S ZVA50 is the first four-port 50 GHz network analyzer in the world. Featuring two integrated sources, the analyzer makes it possible for the first time to perform measurements on multiport and balanced components in this frequency range using a single instrument. The R&S ZVA50 also offers unique features and specifications for pulsed measurements in radar and satellite applications.
In addition, the second integrated source of the R&S ZVA50 saves money by eliminating the external generator usually required for intermodulation and mixer measurements. This significantly simplifies operation and test setup. Moreover, the integrated source sweeps the frequency range to be analyzed 10 times faster than external solutions and thus substantially increases measurement throughput. Since S-parameter and intermodulation measurements can be performed simultaneously, DUTs need to be connected only once - a clear edge in measurement speed.
The four-port architecture of the R&S ZVA50 allows users to perform tests on balanced components. Such components are increasingly used for wired signal transmission at high data rates. The integrated coherent sources make it possible to measure linear and nonlinear DUTs using differential stimulus signals. The phase offset between the two signals can be selected by the user, thus allowing active components to be analyzed under real conditions.
The R&S ZVA50 features a number of wizards that provide the best possible support when performing complex measurement tasks. They guide users step-by-step through the settings for mixer measurements, pulsed and differential measurements, or calibrations to name just three examples. Up to 60,000 measurement points per trace are possible, and convenient marker and analysis functions are provided for evaluating them. A total of 100 traces can be displayed. Other highlights of the R&S ZVA50 include versatile mathematical functions, embedding/de-embedding using virtual networks for impedance matching, as well as comprehensive calibration methods.
The R&S ZVA50 supports all conventional methods required for pulsed measurements in radar and satellite applications. A large measurement bandwidth of 15 MHz combined with high sampling rates allows pulse profile measurements with a time resolution of 12.5 ns. Optimum values for dynamic range (130 dB), output power (+13 dBm) and measurement speed (3.5 µs/point) also make the R&S ZVA50 a safe investment for future applications.
Specification of Rohde And Schwarz ZVA50
List of Options of ZVA50
| B-B18 | Removable Flash Disk 4GB for ZVA/ZVB with control unit FMR6/5 (factory installed only) |
| B-B18 | Removable Flash Disk 4GB for ZVA/ZVB with controller unit FMR7/3 or FMR7/6 |
| B-B18 | Removable hard disk 160GB (including firmware) for R&S® ZVA and R&S® ZVB with FMR7 |
| B-B4 | Oven quartz (OCXO) for ZVA, ZVB, ZVT |
| B-K2 | Time domain (for ZVA, ZVB, ZVT) (software license) |
| B-K30 | Noise figure measurement on 2 port devices (for ZVA and ZVT, |
| B16 | Direct generator and receiver access for 2 port ZVA50 |
| B16 | Direct generator and receiver access for 4 port ZVA50 |
| B21 | Generator Step Attenuator Port 1, mechanical, 50dB in 10dB-steps |
| B22 | Generator Step Attenuator Port 2, mechanical, 50dB in 10dB-steps |
| B23 | Generator Step Attenuator Port 3, mechanical, 50dB in 10dB-steps |
| B24 | Generator Step Attenuator Port 4, mechanical, 50dB in 10dB-steps |
| B31 | Receiver Step Attenuator Port 1, mechanical, 35dB in 5dB-steps |
| B32 | Receiver Step Attenuator Port 2, mechanical, 35dB in 5dB-steps |
| B33 | Receiver Step Attenuator Port 3, mechanical, 35dB in 5dB-steps |
| B34 | Receiver Step Attenuator Port 4, mechanical, 35dB in 5dB-steps |
| B7 | Measurements on pulsed signals. Pulse Profile,Recording time up to 25ms, up to 30MHz bandwidth |
| B7 | Measurements on pulsed signals. Pulse profile,Recording time up to 25ms, up to 30MHz bandwidth |
| B8 | External attenuator control. Control unit for electronic attenuators of ZVAZ90E, ZVA-Z110E |
| C3 | Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. |
| C3 | Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. |
| C5 | Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. |
| C5 | Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. |
| DCV-2 | Documentation of calibration values |
| DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
| K10 | Group delay measurement on converters without LO access. For long distances via LXI network of 2 ZVA or ZVT. |
| K17 | Increases the receiver bandwidth to 5MHz (software license) |
| K27 | Two internal pulse generators (for ZVA and ZVT) (software license) |
| K4 | Mixer- and frequency converting measurements for ZVA and ZVT (software license) |
| K5 | Vector corrected mixer measurements (for R&S®ZVA, R&S®ZVT; R&S®ZVA/T-B16 and R&S®ZVA-K4 required) |
| K6 | True Differential Measurements for all 4-port ZVA and for ZVT with at least 3 ports |
| K7 | Measurements on pulsed signals pulse profile, recording time up to 3ms up to 30 MHz bandwidth |
| K8 | Control of frequency converters (for ZVA with f>20 GHz, ZVT20, includes ZVA-K4) |
| K9 | Measurement of group delay on frequency converters without LO access (for ZVA, ZVT; |
| R3 | Three years of depot repair coverage, including re-calibration if necessary to complete the repair. |
| R3 | Three years of depot repair coverage, including re-calibration if necessary to complete the repair. |
| R5 | Five years of depot repair coverage, including re-calibration if necessary to complete the repair. |
| R5 | Five years of depot repair coverage, including re-calibration if necessary to complete the repair. |
