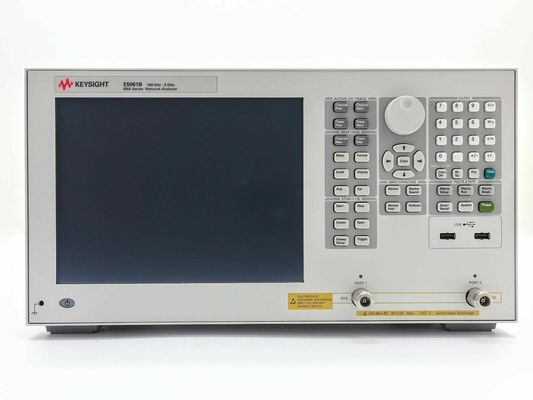

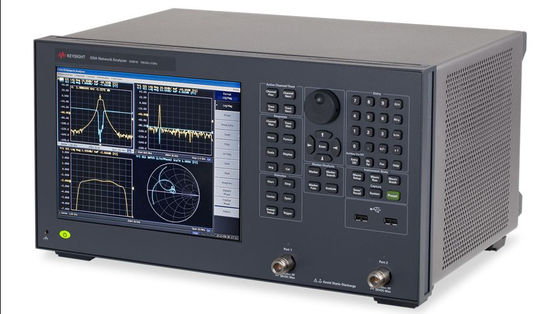

Keysight/Agilent E5061B ENA Vector Network Analyzer/portable Vector Network Analyzer-3GHz
Product Details:
Brand Name: Keysight
Model Number: E5061B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Keysight E5061B ENA Network Analyzer Frequency Range: 5 Hz To 3 GHz
Condition: Pre-Owned Resolution: 1mHz
Port: 2 Ports
High Light:

Portable ENA Vector Network Analyzer

,

3GHz ENA Vector Network Analyzer

,

Portable vector network analyzer





Keysight E5061B ENA Vetor Network Analyzer, 3GHz





Description of  Keysight E5061B



ENA Vetor Network analyzer

The Keysight Technologies, Inc. E5061B is the latest addition to the industry-standard ENA Series Network Analyzer.The Keysight E5061B 3I5 Network Analyzer can be applied to a variety of electronic component and circuit measurements from low to high frequencies. This makes the E5061B versatile enough to be used in a whole host of fields including wireless communications, aerospace and defense, computer, medical, automotive, and CATV among others.



Keysight ENA Vetor Network analyzer E5061B Key Features

Source
Frequency Range:5 Hz to 3 GHz
Resolution:1mHz
Source stability:± 7 ppm (5 to 40 °C)
CW accuracy:± 1 ppm ± 1 mHz

Level accuracy

(Option 3L3/3L4/3L5)
± 0.8 dB (at 0 dBm, 50 MHz absolute)
± 1.0 dB (at 5 Hz to 1.5 GHz, 0 dBm,
relative to 50 MHz)
± 1.5 dB (at 1.5 GHz to 3 GHz, 0 dBm,
relative to 50 MHz)



Level lineality
(Option 3L3/3L4/3L5)
± 0.75 dB (at –10 to 10 dBm, 0 dBm
reference)



Output Power Range
(Option 3L3/3L4/3L5)
–45 dBm to 10 dBm
Level resolution:0.05 dB



Input
Absolute amplitude accuracy < ± 3 dB
(at 0 dBm)



Crosstalk
(Option 3L3/3L4/3L5)
–85 dB (at 5 Hz to 100 Hz)
–100 dB (at 100 Hz to 9 kHz)
–110 dB (at 9 k to 100 kHz)
–115 dB (at 100 kHz to 3 GHz)



Noise floor (Option 3L3/3L4/3L5)
10 Hz bandwidth
-90 dBm (100 Hz to 9 kHz)
-100 dBm (9 kHz to 100 kHz)
-105 dBm (100 kHz to 1 MHz)
-110 dBm (1 MHz to 3 GHz)



E5061B-3L5 + 005 Impedance Analyzer function

Impedance parameters:IZI, θz , IYI, θy, Cp, Cs, Lp, Ls, Rp, Rs, D, Q, R, X, G, B



Measurement methods:Port 1 Reflection, Port 2 Reflection, Port 1-2 Series-thru, Port 1-2 Shunt-thru,Gain-phase Series-thru, Gain-phase Shunt-thru



Equivalent circuit analysis:3-component model (4 models: A/B/C/D), 4-component model

(1 model: E)



Test frequency: 5 Hz to 500 MHz/1.5 GHz/3 GHz (Port-1 and 2), 5 Hz to 30 MHz (Gain-Phase test port), 1 mHz resolution
AC source power(Osc level): –45 to + 10 dBm (when the source port is terminated with 50 Ω)
DC voltage bias: 0 to ±40 V (100 mA max.) 1 mV resolution (0 V to ±10 V), 4 mV resolution
(10 V to 40 V, -10 V to -40 V), DC bias monitor available (voltage or current)



E5061B List of Options
3L5 LF-RF network analyzer with DC bias source, 5 Hz to 3 GHz
1E5 High stability timebase
020 Standard Data Storage
005 Impedance analysis for LF-RF network analyzer





FAQ:

1.Can you ship order to Canada or Australia ?

    Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below.

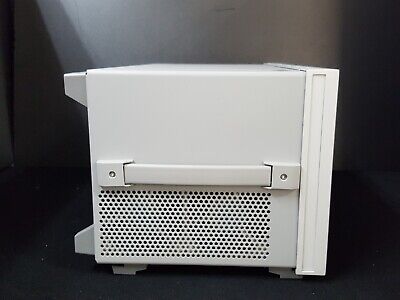

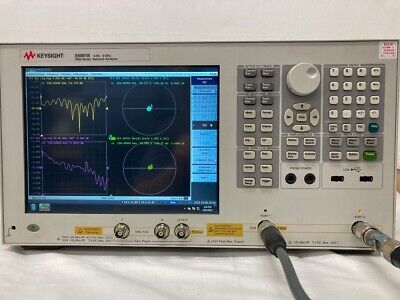

是德科技 E5061B 3L5/005/1E5 VNA+阻抗分析仪 - 第 1 张/共 7 张



是德科技 E5061B 3L5/005/1E5 VNA+阻抗分析仪 - 第 5 张/共 7 张

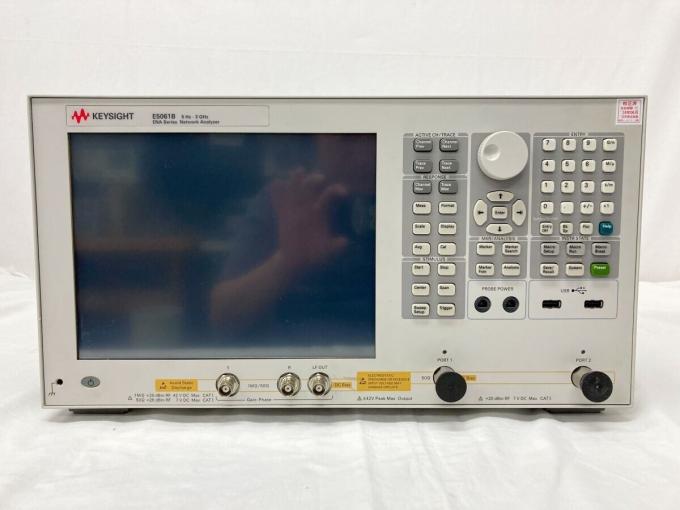

是德科技 E5061B:网络分析仪,100kHz - 3GHz,可选 020 1E5 235 WIN7 (8676) - 第 5 张/共 8 张
