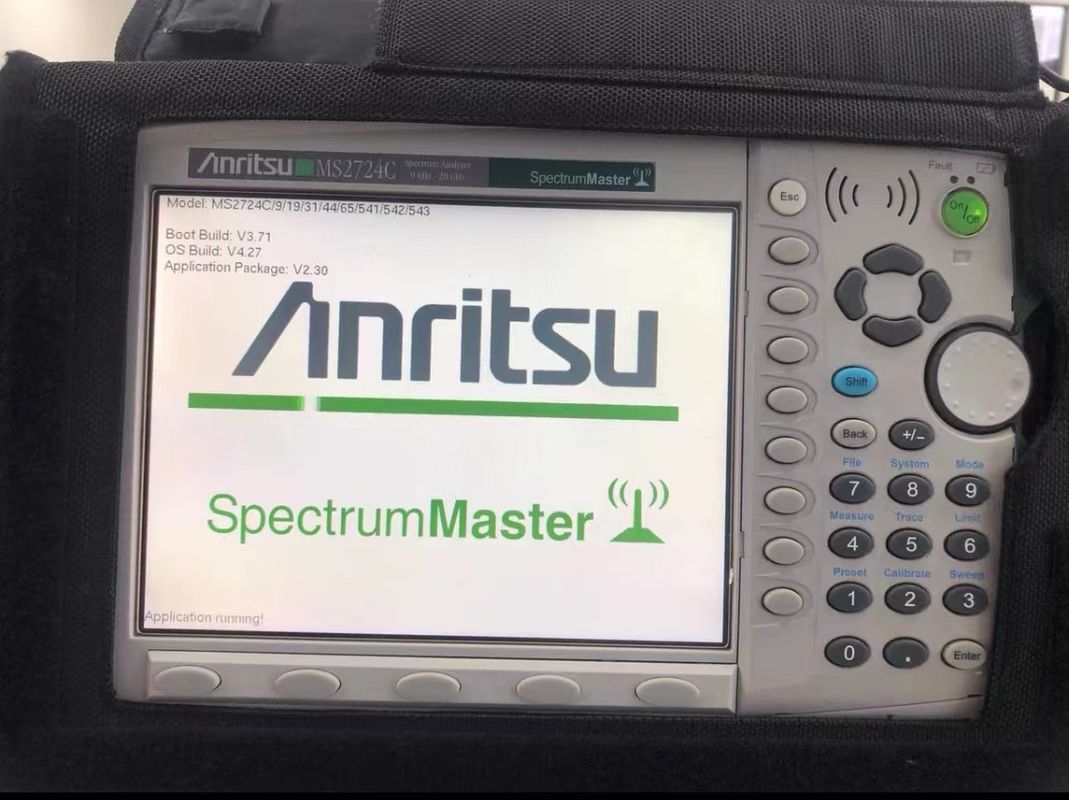

Used Anritsu MS2724C Spectrum Master High Performance Handheld Spectrum Analyzer Calibrated

Used Anritsu MS2724C Spectrum Master High Performance Handheld Spectrum Analyzer Calibrated

Description of Anritsu MS2724C:

The Anritsu MS2724C Spectrum Master Handheld Spectrum Analyzer provides the wireless professional the performance needed for the most demanding measurements in harsh RF and physical environments. Whether the Anritsu MS2724C analyzer is utilized for spectrum monitoring, broadcast proofing, interference analysis, RF and microwave measurements, regulatory compliance, or Wi-Fi and wireless network measurements, the Anritsu MS2724C Spectrum Master is the ideal instrument for making fast and reliable measurements.

The Spectrum Master MS2724C is a synthesizer‑based handheld spectrum analyzer that provides quick and accurate measurement results. Measurements can be easily made by using the main instrument functions: frequency, span, amplitude, and bandwidth. Dedicated keys for common functions and a familiar calculator‑type keypad are available for fast data entry.

• Frequency Coverage - 9 kHz to 20 GHz
• Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
• Three Sweep Modes - with improved Sweep Speed - up to 100 times faster
• Resolution Bandwidths from 1 Hz to 10 MHz
• New triggering choices including hysteresis, hold-off, and delay
• More zero-span capabilities including 10 MHz RBW & VBW
• Enhanced Spectrum Analyzer GUI including large marker display choice
• Choice of display options for readability ? normal, black and white, night vision, high contrast
• On-screen Interference Mapping as part of the Interference Analysis option
• LTE Measurements up to 20 MHz
• 30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal

Spectrum and Interference Analyzer Highlights

• Measure: Occupied Bandwidth, Channel Power, ACPR, C/I
• Interference Analyzer: Spectrogram, Signal Strength, RSSI
• Dynamic Range: > 104 dB in 1 Hz RBW
• DANL: –160 dBm in 1 Hz RBW
• Phase Noise: –100 dBc/Hz @ 10 kHz offset at 1 GHz
• Frequency Accuracy: ±25 ppb with GPS On
• 1 Hz to 10 MHz Resolution Bandwidth (RBW)
• Traces: Normal, Max Hold, Min Hold, Average, # of Averages
• Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
• Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
• Limit Lines: up to 40 segments with one-button envelope creation
• Trace Save-on-Event: crossing limit line or sweep complete
