Rohde & Schwarz ZNA Vector Network Analyzer 10 MHz to 67 GHz with Two or Four Port Models and 147 dB Dynamic Range

Brand Name:	Rohde & Schwarz
Model Number:	Rohde & Schwarz®ZNA26/43/50/67
MOQ:	1
Price:	Negotiation
Delivery Time:	1~3 Working Days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

PORTS:

Two Or Four Port Models Available

FREQUENCY:

10 MHz To 26.5/43.5/50/67 GHz

DYNAMIC RANGE:

147 DB

Product Name:

ZNA Vector Network Analyzers

Condition:

Pre-Owned

Warrenty:

30 DAYS

Functions:

Tested, In Full Working Conditions

Packaging Details:

Carton

Supply Ability:

In Stock

Highlight:

Rohde & Schwarz ZNA

67 GHz Vector Network Analyzers

Four Port Vector Network Analyzers

Product Description

Rohde & Schwarz ZNA Vector Network Analyzers 10 MHz to 26.5/43.5/50/67 GHz Two / Four Port

The R&S®ZNA Vector Network Analyzer represents the high-end line in Rohde & Schwarz's vector network analyzer portfolio. It combines exceptional RF performance, comprehensive software capabilities, and unique hardware concepts. The touch-only operation concept and device-centric approach make the R&S®ZNA a powerful, versatile, and compact measurement system for both passive and active device characterization.

Key Features

10 MHz to 26.5/43.5/50/67 GHz (R&S®ZNA26/43/50/67)
Two or four port models available
Excellent RF performance
Up to four integrated sources
Unique and intuitive touch-only operation
Versatile hardware options

Excellent RF Performance

Accurate measurement of active and passive components
Wide dynamic range for characterization even on high blocking devices under test
Excellent stability, low track noise and first-class raw system data ensure high reliability
High accuracy for measurement applications
Wide power scanning range

Available Models

Model	Ports	Frequency	Connector
R&S®ZNA26	2 ports/4 ports	10 MHz to 26.5 GHz	3.5 mm(m)
R&S®ZNA43	2 ports	10 MHz to 43.5 GHz	2.92 mm(m)/2.4 mm(m)
R&S®ZNA43	4 ports	10 MHz to 43.5 GHz	2.92 mm(m)/2.4 mm(m)
R&S®ZNA50	2 ports/4 ports	10 MHz to 50 GHz	2.4 mm(m)
R&S®ZNA67	2 ports/4 ports	10 MHz to 67 GHz	1.85 mm(m)
R&S®ZNA67EXT	2 ports/4 ports	10 MHz to 110 GHz	1.0 mm(m)

Available Options

Option Code	Description
R&S ZNA26-B26	Direct IF access
R&S ZNA26-B16	Direct source and receiver access for R&S ZNA26 (2 ports)
R&S ZNA26-B16	Direct source and receiver access for R&S ZNA26 (4 ports)
R&S ZNA26-B161	Direct source monitor access, port 1 for R&S ZNA26 (HW opt.)
R&S ZNA26-B163	Direct source monitor access, port 1+3 for R&S ZNA26 (HW opt.)
R&S ZNA43-B16	Direct source and receiver access for R&S ZNA43 (2 ports)
R&S ZNA43-B16	Direct source and receiver access for R&S ZNA43 (4 ports)
R&S ZNA43-B161	Direct source monitor access, port 1 for R&S®ZNA43 (HW opt.)
R&S ZNA43-B163	Direct source monitor access, port 1+3 for R&S ZNA43 (HW opt.)
R&S ZNA50-B16	Direct source and receiver access for R&S ZNA50 (2 ports)
R&S ZNA50-B16	Direct source and receiver access for R&S ZNA50 (4 ports)
R&S ZNA67-B16	Direct source and receiver access for R&S ZNA67 (2 ports)
R&S ZNA67-B16	Direct source and receiver access for R&S ZNA67 (4 ports)
R&S ZNA50-B161	Direct source monitor access for port 1 before the source step attenuator for R&S ZNA50
R&S ZNA50-B163	Direct source monitor access for port 1 and port 3 before the source step attenuator for R&S ZNA50 (4 ports)
R&S ZNA67-B161	Direct source monitor access for port 1 before the source step attenuator for R&S ZNA67
R&S ZNA67-B163	Direct source monitor access for port 1 and port 3 before the source step attenuator for R&S ZNA67 (4 ports)
R&S ZNA-K1	Spectrum analyzer mode for R&S ZNA
R&S ZNA-K2	Time domain analysis (TDR) for R&S ZNA
R&S ZNA-K20	Extended time domain analysis incl. eye diagram, for R&S ZNA
R&S ZNA-K4	Scalar mixer measurements and arbitrary frequency-converting measurements for R&S®ZNA
R&S ZNA-K5	Vector corrected converter measurements for R&S ZNA (without reference mixer and phase reference), requires R&S ZNA-K4
R&S ZNA-K6	Phase coherent source control for R&S ZNA
R&S ZNA-K61	True differential mode for R&S ZNA
R&S ZNA-K7	Measurements on pulsed signals. Pulse configuration, pulse profile and pulse train measurement, requires R&S ZNA-K17
R&S ZNA-K17	Increased IF bandwidth up to 30 MHz for R&S ZNA
R&S ZNA-K8	Converter Control Software (for R&S ZNA, R&S ZVA-Zxxx, R&S ZCxxx)
R&S ZNA-K9	Group delay measurements on frequency converters without LO access for R&S ZNA (4 ports strongly recommended), requires R&S ZNAxx-B16 and R&S ZNA-K4
R&S ZNA-K19	mHz frequency resolution for R&S ZNA
R&S ZNA-K30	Noise figure measurement for R&S ZNA26/43
R&S ZNA-K50	Realtime measurement uncertainty analysis for R&S ZNA26, R&S ZNA43
R&S ZNA-K50P	Realtime measurement uncertainty analysis for R&S ZNA. Including pre-installed Swiss Metrology Institute METAS Software: "VNA tools"
R&S ZNA-K51	Security write protection of internal harddisc for R&S ZNA
R&S ZNA-K210	EAZY De-embedding (EZD) based on IEEE 370 for R&S ZNA
R&S ZNA-K220	In-Situ De-embedding that covers IEEE 370 for R&S ZNA
R&S ZNA-K230	Smart Fixture De-embedding (SFD) for R&S ZNA
R&S ZNA-K231	Delta-L 4.0 PCB characterization for R&S ZNA
R&S ZNA-K980	HUMS software option - Health and Utilization Monitoring Service for R&S ZNA (software license)
R&S ZNA-K28	Continuous data recording (SL) - Continuous data acquisition: Data of periodically executed sweeps are recorded with equidistant time grid by means of a circular buffer (software license)
R&S ZNA-K100	SNP assistant

Frequently Asked Questions

Can you ship orders to Canada or Australia?

Yes, we can. We send orders worldwide.

What delivery method do you use and what is the delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

What is your payment term?

100% T/T payment before shipment.

How can I ask any other questions?

You can contact us online or leave us messages below.

Product Images

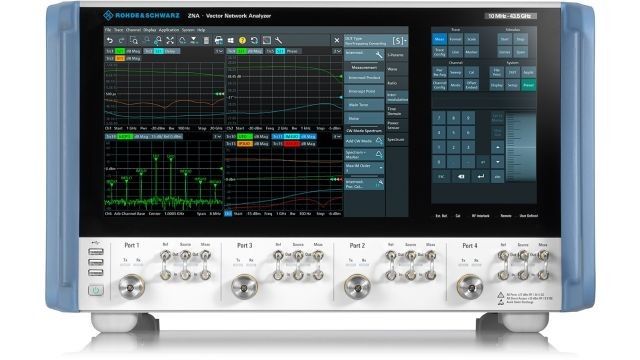

R&S®ZNA Vector Network Analyzers, Front view

R&S®ZNA Vector Network Analyzers, Side view
