| Brand Name: | Keysight（Agilent) |
| Model Number: | N5290A |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | ,T/T |

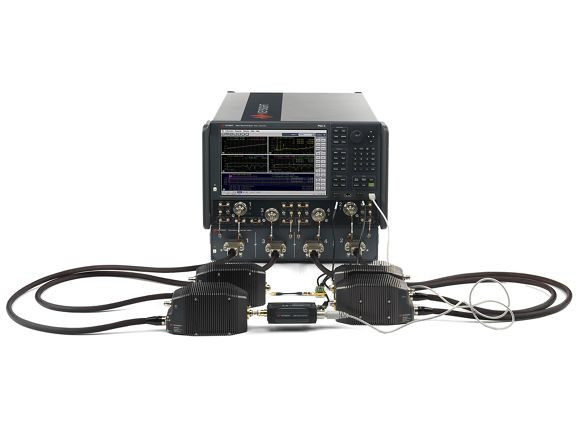

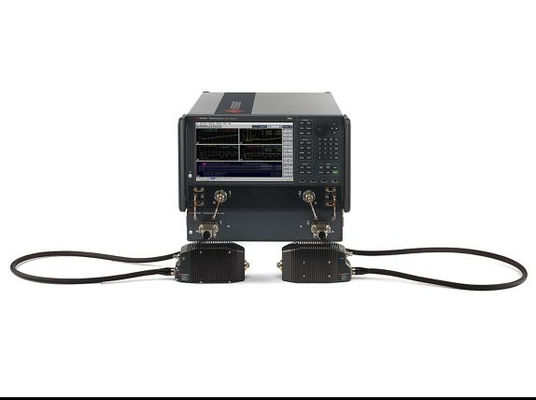

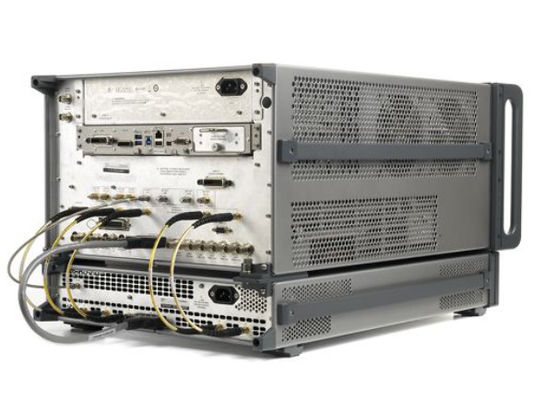

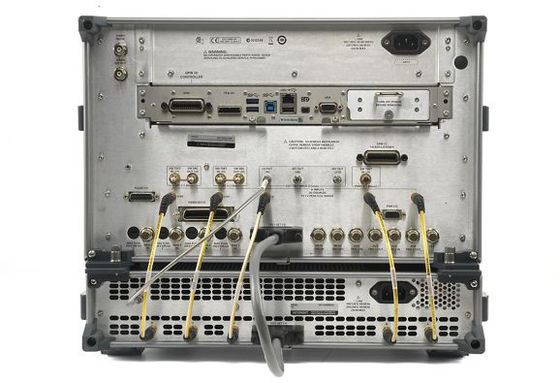

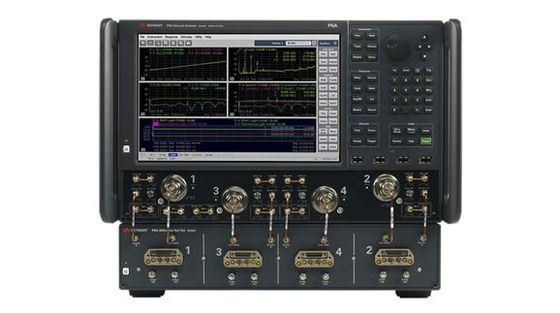

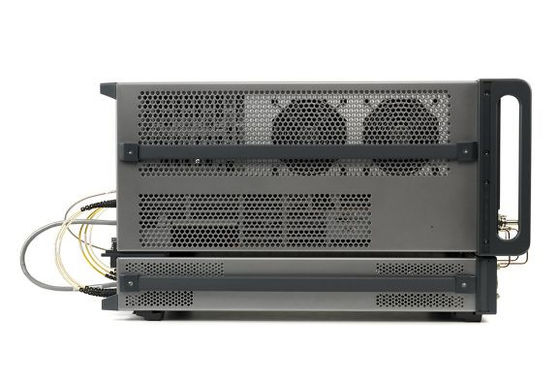

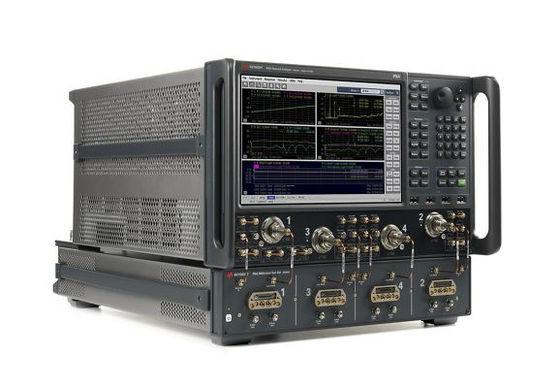

Keysight (Agilent) N5290A 900 Hz to 110 GHz PNA MM-Wave System
Key Features and Functions of N5290A 900 Hz to 110 GHz PNA MM-Wave System
Specifications of N5290A 900 Hz to 110 GHz PNA MM-Wave System
| Maximum Frequency | 110 GHz |
|---|---|
| Dynamic Range | >115 dB |
| Output Power | 0 dBm |
| Number of Built-In Ports | 2 or 4 ports |
| Harmonics | n/a |
| Best Speed at 201 Point, 1 Sweep | 6 ms |
| Network Analyzer Series | PNA-X Most Advanced and Flexible |
| Instrument Type | Vector Network Analyzer |
| Components | On Wafer |
| 201 | 2 port with N5222B 26.5 GHz PNA |
| 202 | 2 port with N5227B 67 GHz PNA |
| 401 | 4 port with N5242B 26.5 GHz PNA-X |
| 402 | 4 port with N5242B 26.5 GHz PNA-X |
| 403 | 4 port with N5247B 67 GHz PNA-X |
| N1966A | Pulse I/O Adapter |
| N5222B-020 | Add IF inputs |
| N5222B-021 | Add pulse modulator to internal 1st source |
| N5222B-022 | Add pulse modulator to internal 2nd source |
| N5222B-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| N5222B-200 | 2-port, base hardware configuration |
| N5222B-201 | 2-port, with configurable test set, reference mixer switch |
| N5222B-205 | 2-port with configurable test set, ref mixer switch, bias tees, low frequency extension |
| N5222B-210 | 2-port with metrology configuration |
| N5222B-217 | 2-port with configurable test set, reference mixer switch, source and receiver attenuators |
| N5222B-219 | 2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees |
| N5222B-220 | 2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension |
| N5222B-400 | 4-port with second source |
| N5222B-401 | 4-port with second source, configurable test set, reference mixer switch |
| N5222B-405 | 4-port with second source, configurable test set, reference mixer switch, bias tees, low frequency extension |
| N5222B-410 | 4-port with second source, metrology configuration |
| N5222B-417 | 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators |
| N5222B-419 | 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees |
| N5222B-420 | 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension |
| N5222B-A6J | ANSI Z540-1-1994 Calibration |
| N5222B-UK6 | Commercial calibration certificate with test data |
| N5227B-020 | Add IF inputs |
| N5227B-021 | Add pulse modulator to internal 1st source |
| N5227B-022 | Add pulse modulator to internal 2nd source |
| N5227B-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| N5227B-200 | 2-port, base hardware configuration |
| N5227B-201 | 2-port with configurable test set, reference mixer switch |
| N5227B-205 | 2-port with configurable test set, ref mixer switch, bias tees, low frequency extension |
| N5227B-210 | 2-port with metrology configuration |
| N5227B-219 | 2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees |
| N5227B-220 | 2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension |
| N5227B-400 | 4-port with second source |
| N5227B-401 | 4-port with second source, configurable test set, reference mixer switch |
| N5227B-405 | 4-port with second source, configurable test set, reference mixer switch, bias tees, low frequency extension |
| N5227B-410 | 4-port with second source, metrology configuration |
| N5227B-419 | 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees |
| N5227B-420 | 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension |
| N5227B-A6J | ANSI Z540-1-1994 Calibration |
| N5227B-UK6 | Commercial calibration certificate with test data |
| N5242B-020 | Add IF inputs |
| N5242B-021 | Add pulse modulator to internal 1st source |
| N5242B-022 | Add pulse modulator to internal 2nd source |
| N5242B-029 | Add noise receiver to 26.5 GHz |
| N5242B-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| N5242B-201 | 2-port, configurable test set |
| N5242B-205 | 2-port, configurable test set, bias tees, low frequency extension |
| N5242B-217 | 2-port, configurable test set, source attenuators, receiver attenuators |
| N5242B-219 | 2-port, configurable test set, source attenuators, receiver attenuators, bias tees |
| N5242B-222 | 2-port, configurable test set, source attenuators, receiver attenuators, second source, combiner, mechanical switches |
| N5242B-224 | 2-port, configurable test set, source attenuators, receiver attenuators, bias tees, second source, combiner, mechanical switches |
| N5242B-401 | 4-port, configurable test set, with second source |
| N5242B-417 | 4-port, configurable test set, second source, source attenuators, receiver attenuators |
| N5242B-419 | 4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees |
| N5242B-422 | 4-port, configurable test set, second source, source attenuators, receiver attenuators, combiner, mechanical switches |
| N5242B-423 | 4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees, combiner, mechanical switches |
| N5242B-425 | 4-port, configurable test set, second source, attenuators, combiner, mechanical switches, bias tees, low frequency extension |
| N5242B-A6J | ANSI Z540-1-1994 Calibration |
| N5242B-UK6 | Commercial calibration certificate with test data |
| N5247B-020 | Add IF inputs |
| N5247B-021 | Add pulse modulator to internal first source |
| N5247B-022 | Add pulse modulator to internal 2nd source |
| N5247B-029 | Add noise receiver to 50 GHz |
| N5247B-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| N5247B-201 | 2-port, configurable test set |
| N5247B-219 | 2-port, configurable test set, source attenuators, receiver attenuators, bias tees |
| N5247B-224 | 2-port, configurable test set, source attenuators, receiver attenuators, bias tees, second source, combiner, mechanical switches |
| N5247B-401 | 4-port, configurable test set, second source |
| N5247B-419 | 4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees |
| N5247B-423 | 4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees, combiner, mechanical switches |
| N5247B-425 | 4-port, configurable test set, second source, attenuators, combiner, mechanical switches, bias tees, low frequency extension |
| N5247B-A6J | ANSI Z540-1-1994 Calibration |
| N5247B-UK6 | Commercial calibration certificate with test data |
| N5292A-200 | Test set, 2 port |
| N5292A-222 | Interconnect Kit for 2 Port Test Set and 2 Port VNA with 3.5 mm Ports |
| N5292A-224 | Interconnect Kit for 2 Port Test Set and 2 Port VNA with 2.4 mm or 1.85 mm Ports |
| N5292A-400 | Test set, 4 port |
| N5292A-442 | Interconnect Kit for 4 Port Test Set and 4 Port VNA with 3.5 mm Ports |
| N5292A-444 | Interconnect Kit for 4 Port Test Set and 4 Port VNA with 2.4 mm or 1.85 mm Ports |
| N6171A |
MATLAB Software |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
|
|
