E5080B ENA Vector Network Analyzer Maximum Frequency 53 GHz Benchtop Type

E5080B ENA Vector Network Analyzer Maximum Frequency 53 GHz Benchtop Type

  • E5080B ENA Vector Network Analyzer Maximum Frequency 53 GHz Benchtop Type
  • E5080B ENA Vector Network Analyzer Maximum Frequency 53 GHz Benchtop Type
  • E5080B ENA Vector Network Analyzer Maximum Frequency 53 GHz Benchtop Type
  • E5080B ENA Vector Network Analyzer Maximum Frequency 53 GHz Benchtop Type
E5080B ENA Vector Network Analyzer Maximum Frequency 53 GHz Benchtop Type
Product Details:
Brand Name: Keysight
Model Number: E5080B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Minimum Frequency:: 9 KHz / 100 KHz VNA Series: ENA
VNA Type: Benchtop Dynamic Range:: 140 DB
High Light:

E5080B ENA Vector Network Analyzer

,

53 GHz ENA Vector Network Analyzer

,

Benchtop ENA Vector Network Analyzer

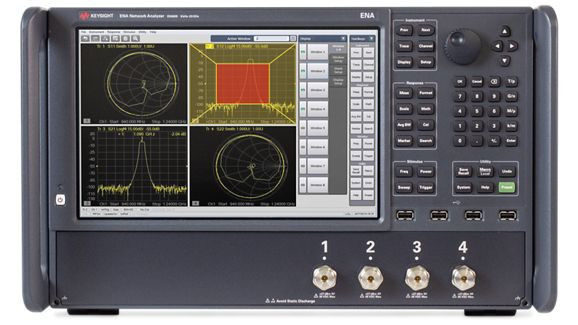

E5080B ENA Vector Network Analyzer Maximum Frequency 53 GHz Benchtop Type

Industry's Most Flexible and Integrated ENA Vector Network Analyzer

As devices become highly integrated, complete characterization requires a complete RF and microwave measurement solution. The E5080B provides R&D performance up to 53 GHz and advanced test flexibility. Best-in-class dynamic range, trace noise, and temperature stability guarantee reliability and repeatability.

The E5080B ENA Vector Network Analyzer enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. You can perform more tests with one box with integrated features such as DC sources, bias tees, pulse generators, pulse modulators, and internal second source. Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure. Choose from a 2- or 4-port option with frequency coverage from 9 kHz up to 20 GHz or for higher frequencies, 100 kHz up to 53 GHz.

The E5080B utilizes the same measurement science as other Keysight vector network analyzers (VNAs) such as the PNA, PXI, and USB VNA. A common software platform makes it easy to choose the right level of performance to match budget and measurement needs. This commonality guarantees measurement consistency, repeatability, and a common remote-programming interface across multiple instruments in R&D and manufacturing.

  • Wide frequency coverage from 9 kHz to 4.5/6.5/9/14/20 GHz or 100 kHz to 26.5/32/44/53 GHz
  • Fully capture device performance with a wide dynamic range of 140 dB
  • Achieve complete device characterization with optional built-in DC sources, bias tees, pulse generators and pulse modulators
  • Consistently test between R&D and production with the same UI and SCPI commands as high-end PNAs
  • Improve throughput by performing spectrum analysis, pulsed-RF measurements, vector mixer measurements, noise figure, and more on a single instrument



Applications:
Signal Integrity
Balance Measurements
S-Parameters
Best Speed at 201 Point, 1 Sweep:
2 ms
Components:
Cables
Antennas
Mixers/Frequency Converters
Filters/Duplexers
Amplifiers
Connectors
Isolators
Dynamic Range:
140 dB
Instrument Type:
Benchtop
Maximum Frequency:
53 GHz
Minimum Frequency:
9 kHz / 100 kHz
Number of Built-In Ports:
2 ports
Number of Internal Sources:
1
2
Output Power:
10 dBm
Type:
Benchtop
Temperature Stability:
0.005 dB/ ⁰C (Typical)
Trace Noise:
0.0015 dB rms
VNA Series:
ENA
VNA Type:
Benchtop
Weight:
14 kg (2-port), 15 kg (4-port)
