Agilent Keysight N5227A PNA Microwave Network Analyzer 10MHz-67GHz Rackmount

Name: Agilent Keysight N5227A PNA Microwave Network Analyzer 10MHz-67GHz Rackmount
Brand: Keysight (Agilent)
SKU: N5227A
Rating: 4.7 (119 reviews)

Product Details:

Place of Origin:	Malaysia
Brand Name:	Keysight (Agilent)
Model Number:	N5227A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	in stock

Contact Now

Detailed Product Description

Product Name:	PNA-X Microwave Network Analyzer	No. Of Ports:	2- Or 4-ports
Condition:	Pre-Owned	Frequency:	10MHz-67 GHz
Functions:	Tested, In Full Working Conditions	Form Factor:	Rackmount ( /1CM /1CP )
High Light:	Keysight N5227A PNA Microwave Network Analyzer , Rackmount PNA Microwave Network Analyzer , 67GHz PNA Microwave Network Analyzer

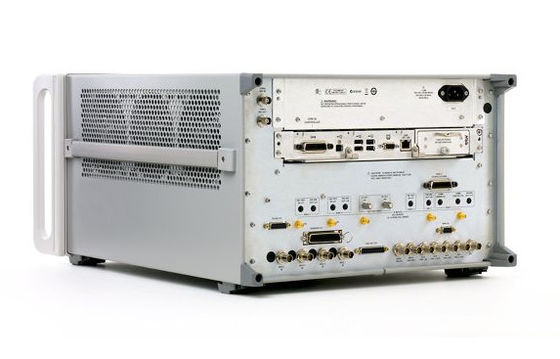

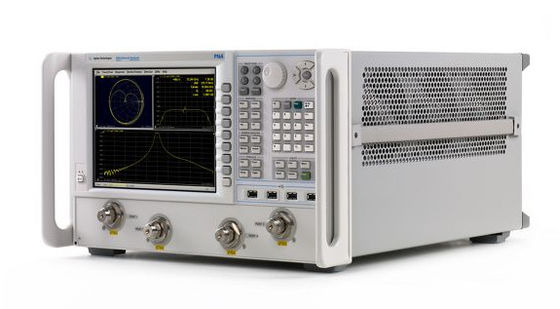

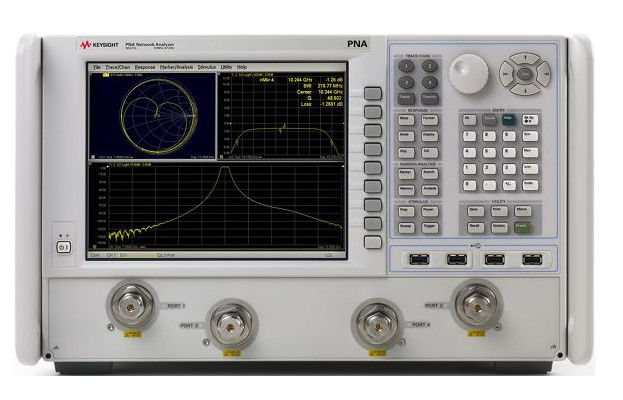

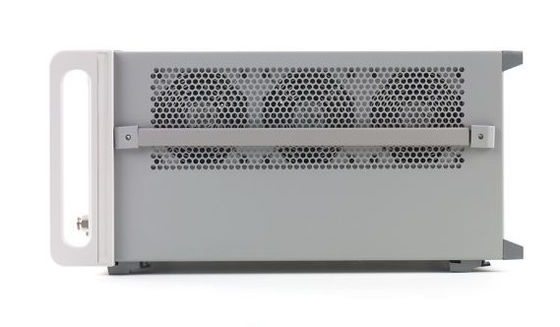

Agilent Keysight N5227A PNA Microwave Network Analyzer 10MHz-67GHz

Description of Keysight Agilent N5227A

The PNA-X network analyzer is the world´s most integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. You can choose from five frequency models to meet your specific device test needs: 13.5, 26.5, 43.5, 50, and 67 GHz. The PNA-X provides unrivaled configurability with a built-in second source, combiner, and internal signal-routing switches.

Overview and Features of N5227A PNA-X Microwave Network Analyzer

Reach for unrivaled excellence in your measurements and designs
Transform deeper understanding into better designs with the PNA’s outstanding measurement integrity
Meet your toughest measurement challenges with the highest performing microwave network analyzer in the industry
Get the best accuracy with Keysight’s S-parameter measurements
Meet your specific budget and measurement needs by customizing to just the right level of performance
10 MHz to 67 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF performance.

Applications:

S-parameters (CW and pulsed)
Noise figure
Nonlinear waveform and X-parameter® characterization
Millimeter-wave
True-differential stimulus
Conversion gain/loss
ntermodulation and harmonic distortion
Antenna test
Gain compression

Features:

10 MHz to 67 GHz
2-ports with single source or 4-ports with two built-in sources
128 dB system and 133 dB receiver dynamic range, 100,001 points, 200 channels, 15 MHz IF bandwidth
High output power (+13 dBm) and a wide power sweep range (38 dB)
Best dynamic accuracy: 0.1 dB compression with +12 dBm input power at the test port
Low noise floor of -117 dBm at 10 Hz IF bandwidth

List of Options

008	Pulsed RF Measurements
010	Time Domain
020	Add IF inputs
021	Add pulse modulator to internal first source
022	Add pulse modulator to internal second source
025	Add four internal pulse generators
028	Noise figure measurements using standard receivers
080	Frequency offset measurements
082	Scalar calibrated converter measurements
083	Vector and scalar calibrated converter measurements
084	Embedded LO measurements
086	Gain compression application
087	Intermodulation distortion measurements
088	Source Phase Control
118	Fast CW Mode
1CM	Rack mount kit for installation without handles
1CP	Rack mount kit for installation with handles
200	2 ports, single source, base hardware configuration
201	2 ports, single source, with configurable test set
210	2 ports, single source, with metrology configuration
219	2 ports, single source, configurable test set, extended power range, bias-tees
301	Application for use with standard CalPods
302	Application for use with temperature-characterized CalPods
400	4 ports, dual source, base hardware configuration
401	4 ports, dual source, with configurable test set
410	4 ports, dual source, with metrology configuration
419	4 ports, dual source, configurable test set, extended power range, bias-tees
460	Integrated true-mode stimulus application
551	N-port calibrated measurements
897	Built-in performance test software for inclusive calibration, perpetual license
898	Built-in performance test software for standards compliant calibration, perpetual license
A6J	ANSI Z540-1-1994 Calibration
N1966A	Pulse/IO Adapter
N6171A	MATLAB Software
N6171A-M01	MATLAB-Basic Package, individual license - node-locked
N6171A-M02	MATLAB-Standard Package, individual license - node-locked
N6171A-M03	MATLAB-Advanced Package, individual license - node-locked
P04	4 Port
UK6	Commercial calibration certificate with test data
