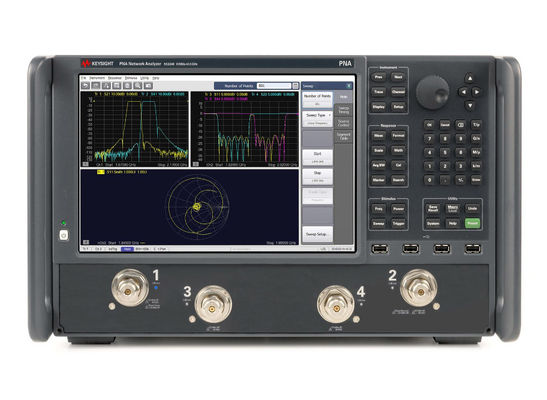

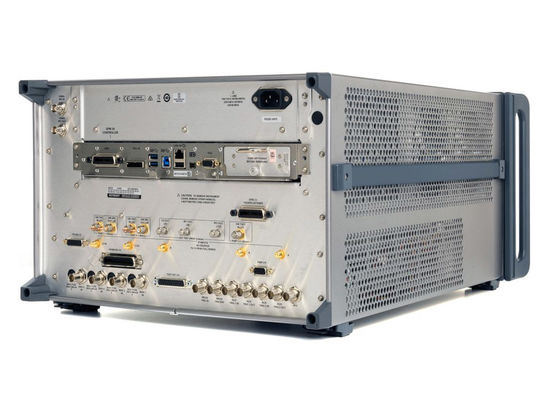

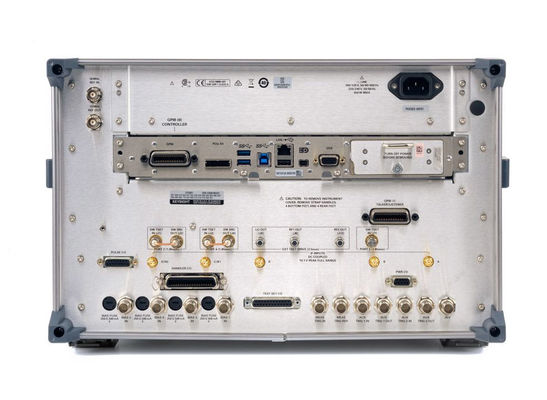

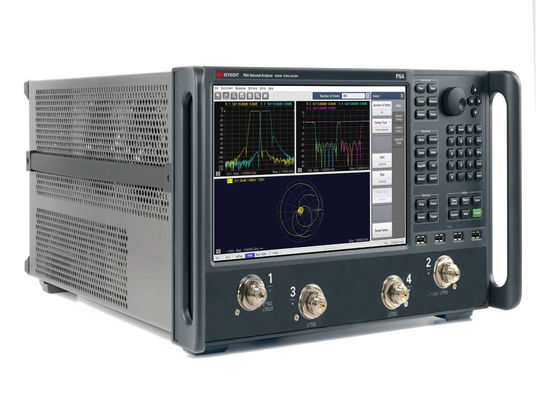

Agilent N5224B PNA Microwave Network Analyzer 900 Hz 10 MHz To 43.5 GHz

Agilent N5224B PNA Microwave Network Analyzer 900 Hz 10 MHz To 43.5 GHz

  • Agilent N5224B PNA Microwave Network Analyzer 900 Hz 10 MHz To 43.5 GHz
  • Agilent N5224B PNA Microwave Network Analyzer 900 Hz 10 MHz To 43.5 GHz
  • Agilent N5224B PNA Microwave Network Analyzer 900 Hz 10 MHz To 43.5 GHz
  • Agilent N5224B PNA Microwave Network Analyzer 900 Hz 10 MHz To 43.5 GHz
Agilent N5224B PNA Microwave Network Analyzer 900 Hz 10 MHz To 43.5 GHz
Product Details:
Place of Origin: Germany
Brand Name: Keysight (Agilent)
Model Number: N5224B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Vector Network Analyzer Frequency: 900 Hz/10 MHz To 43.5 GHz
Condition: Pre-Owned Functions: Tested In Full Working Conditions
High Light:

Agilent N5224B PNA Microwave Network Analyzer

,

43.5 GHz PNA Microwave Network Analyzer

Keysight Agilent N5224B PNA Microwave Network Analyzer 900 Hz 10 MHz to 43.5 GHz

Description of Keysight Agilent N5224B PNA Microwave Network Analyzer



Key Features and Functions

  • Meet your toughest measurement challenges with the highest performing microwave network analyzer in the industry
  • Measure S-parameters with the smallest uncertainty and highest stability
  • Efficiently characterize active components with applications that simplify setups
  • Meet your specific budget and measurement needs by customizing to just the right level of performance
  • Accelerate insight into component behavior using a multi-touch display and intuitive user interface



Maximum Frequency



43.5 GHz



Dynamic Range



127 dB



Number of Built-In Ports



2 or 4 ports



Harmonics



-60 dBc



Network Analyzer Series



PNA High Performance



Instrument Type



Vector Network Analyzer





List of Options



020       Add IF inputs
021       Add pulse modulator to internal 1st source
022       Add pulse modulator to internal 2nd source
1A7       Calibration + Uncertainties + Guardbanding (Not Accredited)
1CM       Rack mount kit for installation without handles
1CP       Rack mount kit for installation with handles
200       2 port, base hardware configuration
201       2 port with configurable test set, reference mixer switch
205       2-port, configurable test set, ref mixer switch, low frequency extension
210      2-port with metrology configuration
217      2-port with configurable test set, reference mixer switch, source and receiver attenuators
219     2-port, configurable test set, reference mixer switch, source and receiver attenuators, bias tees
220     2-port with configurable test set, reference mixer switch, source and receiver attenuators, low  frequency extension
400     4-port with second source
401     4-port with second source, configurable test set, reference mixer switch
405     4-port with second source, configurable test set, reference mixer switch, low frequency extension
410     4-port with second source, metrology configuration
417     4-port, 2nd source, configurable test set, reference mixer switch, source and receiver attenuators
419     4-port, 2nd source, configurable test set, ref mixer switch, source/receiver attenuators, bias tees
420    4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, low frequency extension
A6J    ANSI Z540-1-1994 Calibration
N1966A    Pulse I/O Adapter
N6171A    MATLAB Software
S93007B    Automatic fixture removal
S93010B    Time Domain Analysis
S93011B    Enhanced Time Domain Analysis with TDR
S93015B    Real-time S-Parameter and Power Measurement Uncertainty
S93025B    Basic Pulsed-RF Measurements
S93026B    Advanced Pulsed-RF Measurements
S93029B    Noise Figure Measurements with Vector Correction
S93080B    Frequency Offset Measurements
S93082B    Scalar Mixer/Converter Measurements
S93083B    Vector and Scalar Mixer/Converter Measurements
S93084B    Embedded LO Capability
S93086B   Gain-Compression Measurements
S93087B   Intermodulation Distortion Measurements
S93088B   Source Phase Control
S93089B   Differential and I/Q Device Measurements
S930900B   Spectrum Analysis, up to 8.5 GHz
S930901B   Spectrum Analysis, up to 13.5 GHz
S930902B   Spectrum Analysis, up to 26.5 GHz
S930904B   Spectrum Analysis, up to 43.5 GHz
S930909B   Spectrum Analysis, up to 90 GHz
S93093B   Spectrum Analysis, up to 110 GHz
S93094B   Spectrum Analysis, beyond 110 GHz
S93118B   Fast CW Measurements
S93460B   True-Mode Stimulus
S93551B   Network Analyzer N-Port Calibrated Measurements
S93898B   Built-in Performance Test Software
UK6   Commercial calibration certificate with test data
WIN10   Windows 10 Operating System
WIN7
