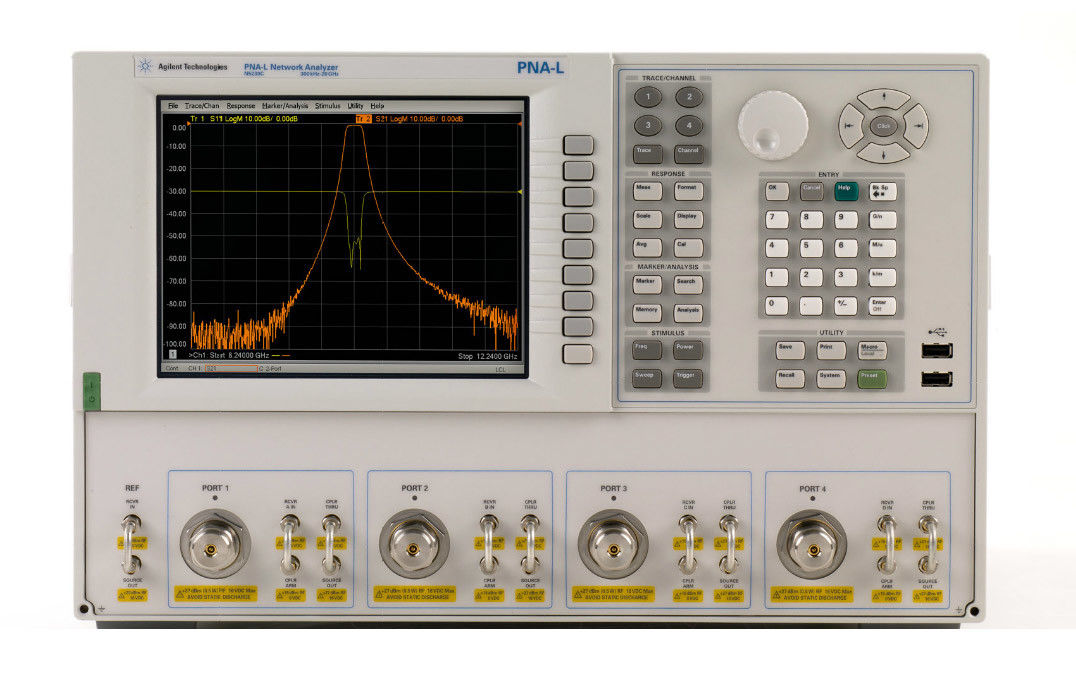

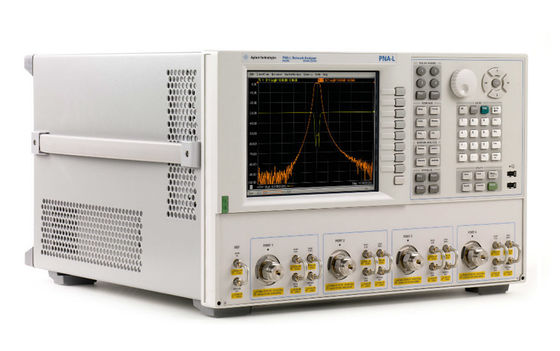

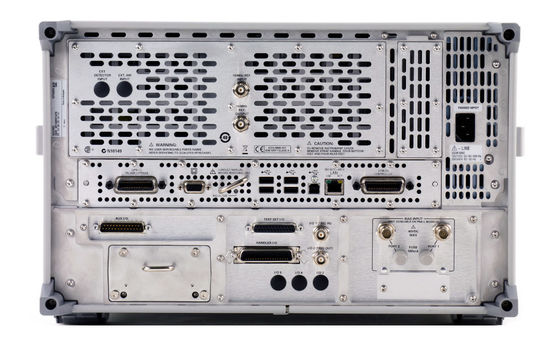

Used N5230C PNA-L Microwave Network Analyzer Vector Test Equipment

Brand Name: Keysight (Agilent)
Model Number: N5230C
MOQ: 1 set
Price: Negotiation
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
Malaysia
Product Name:
PNA-L Microwave Network Analyzer
Frequency:
6 GHz-50 GHz
Number Of Built-In Ports:
2 Or 4 Ports
Type:
Vector Network Analyzer (VNA),Scalar Network Analyzer (SNA) ( /082 )
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Packaging Details:
Carton
Supply Ability:
In Stock
Product Description

Keysight Agilent N5230C PNA L Microwave Network Analyzer Test Equipment



Description of Keysight Agilent N5230C PNA L Microwave Network Analyzer

  • 300 kHz to 6 GHz 2-port
  • 300 kHz to 13.5 GHz available in 2- and 4-port
  • 10 MHz to 20 GHz available in 2- and 4-port
  • 10 MHz to 40 GHz 2-port
  • 10 MHz to 50 GHz 2-port


The PNA-L offers a 8.4 inch touch screen, simple interface with pull down menus, hard and soft keys, and online help.

Features:

  • 300 kHz to 6/13.5/20 GHz and 10 MHz to 20/40/50 GHz
  • 2- or 4- ports with two built-in sources
  • 110 dB system and 122 dB receiver dynamic range, 32,001 points, 32 channels
  • < .006 dB rms (Option 22x)
  • Measurement speed: 4 to 9 µs per point



List of options





010



Time Domain for 13.5, 20, 40, and 50 GHZ PNA-L



014



Configurable test set



020



300 kHz to 6 GHz, 2 port, standard test set



025



300 kHz to 6 GHz, 2 port, configurable test set and extended power range



080



Frequency offset mode



082



Scalar calibrated converter measurements



120



300 kHz to 13.5 GHz, 2 port, standard test set



125



300 kHz to 13.5 GHz, 2 port, configurable test set and extended power range



140



300 KHz to 13.5 GHz, 4 port, standard test set



145



300 KHz to 13.5 GHz, 4 port, configurable test set and extended power range



146



300 KHz to 13.5 GHz, 4 port, configurable test set, extended power range, and internal second source



1A7



ISO 17025 compliant calibration



1CM



Rackmount kit for installation without handles



1CP



Rackmount kit for installation with handles



1E1



Extended Power Range



220



10 MHz to 20 GHz, 2 port, standard test set



225



10 MHz to 20 GHz, 2 port, configurable test set and extended power range



240



300 kHz to 20 GHz, 4 port, standard test set



245



300 kHz to 20 GHz, 4 port, configurable test set and extended power range



246



300 KHz to 20 GHz, 4 port, configurable test set, extended power range, and internal second source



301



Application for use with standard CalPods



302



Application for use with temperature-characterized CalPods



420



10 MHz to 40 GHz, 2 port, standard test set



425



10 MHz to 40 GHz, 2 port, configurable test set and extended power range



520



10 MHz to 50 GHz, 2 port, standard test set



525



10 MHz to 50 GHz, 2 port, configuable test set and extended power range



550



Add 4-port measurement application



551



Add N-port calibrated measurements for 40 and 50 GHz PNA-L



897



Built-in performance test software for Agilent inclusive calibration, perpetual license



898



Built-in performance test software for standards compliant calibration, perpetual license



A6J



ANSI Z540 compliant calibration



AB1



Korea Quick Users Guide (Korean localization)



AB2



China Quick Users Guide (Chinese localization)



ABA



U.S. Quick Users Guide (English localization)



ABD



Germany Quick Users Guide (German localization)



ABE



Spain Quick Users Guide (Spanish localization)



ABF



France Quick Users Guide (French localization)



ABJ



Japan Quick Users Guide (Japanese localization)



ABZ



Italy Quick Users Guide (Italian localization)



F20



20 GHz Frequency Range



H08



Pulsed-RF measurement capability



H11



IF Access (for antenna,point in pulse,pulse profile and broadband MM wave measurements.)



N5231C-010



Time domain for 6 GHz PNA-L



N5231C-551



Add N-port calibrated measurements for 6, 13.5 and 20 GHz PNA-L



P02



2 Ports



P04



4 Ports



PS-S10



Remote scheduled productivity assistance. Select 1 to 999 hours.



PS-S20



Startup assistance



PS-S20-01



Recommended Startup assistance



PS-T10-PNA



PNA operator training for 8 students at the customer's site , H7215B-203



PS-T12-PNA



PNA programming for 8 students at the customer's site , H7215B-204



R-50C-011-3



Agilent Calibration - 3 years



R-50C-011-5



Agilent Calibration - 5 years



R-50C-016-3



ISO 17025 Compliant Calibration - 3 years



R-50C-016-5



ISO 17025 Compliant Calibration - 5 years



R-50C-021-3



ANSI Z540-1-1994 Calibration - 3 years



R-50C-021-5



ANSI Z540-1-1994 Calibration - 5 years



R-50J-001-3



Onsite System Verification - 3 years



R-50U-001-3



Onsite Agilent Calibration - 3 years



R-50U-002-3



Onsite ANSI Z540-1-1994 Calibration - 3 years



R-51B-001-3C



Return to Agilent Warranty - 3 years



R-51B-001-5C



Return to Agilent Warranty - 5 years



R-51B-001-C



Return to Agilent Warranty - 1 year



R-51C-001-1CU



Onsite Warranty - 1 year



R-51C-001-3CU



Onsite Warranty - 3 years



S02



Second Source Module



UK6



Commercial Calibration Certificate with test data



Our Service:



One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.





FAQ:



1. Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
