| Place of Origin: | Malaysia |
| Brand Name: | Keysight (Agilent) |
| Model Number: | E5061B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | In Stock |
| Product Name: | ENA Vector Network Analyzer | Frequency: | 5 Hz To 3 GHz |
|---|---|---|---|
| Form Factor: | Benchtop | Type: | Vector Network Analyzer (VNA) |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |

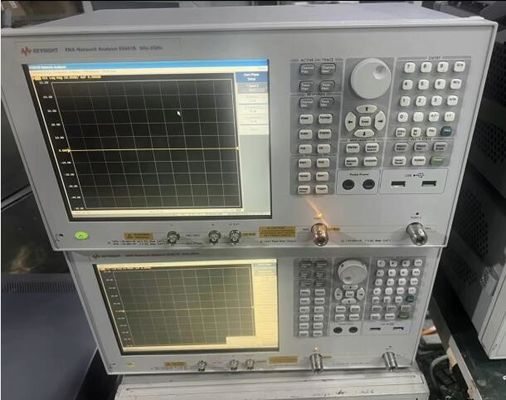

Used E5061B ENA Vector Network Analyzer 5 Hz to 3 GHz Impedance Measurement

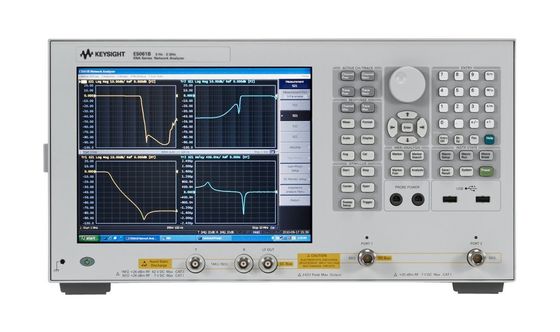

Description of E5061B ENA Vector Network Analyzer
The Agilent E5061B is a member of the ENA Series network analyzers. The E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies. The E5061B now provides a new standard of frequency-domain device analysis from 5 Hz to 3 GHz.
RF NA Options: E5061B-115/117/135/137/215/217/235/237
Solid performance in an enhanced platform
The E5061B RF Network Analyzer options are the successors of the E5061/62A and they provide high-performance network analysis for testing RF components, including cellular BTS filters/antennas, MRI coils, RFIDs, and CATV components. A wide variety of test set options allows you to select the best configuration to suit your test requirements and budget.
LF-RF NA Option: E5061B-3L5
Comprehensive LF-to-RF network analysis
The E5061B-3L5 LF-RF NA option offers versatile network analysis in the broad frequency range from 5 Hz to 3 GHz. Comprehensive LF network measurement capabilities including built-in 1 MO inputs have been seamlessly integrated with the high-performance RF network analyzer. The E5061B-3L5 is the right solution for component and circuit evaluations in the R&D environment.
E5061B-3L5 LF-RF network analyzer option plus 005 impedance analysis option - NA plus ZA in one box
The E5061B-005 provides the impedance analysis (ZA) firmware for the E5061B-3L5 LF-RF network analyzer. This option enables the analyzer to measure impedance parameters of electronic components such as capacitors, inductors, and resonators. The combination of NA and ZA capabilities further enhances the analyzer’s versatility as a general R&D tool.
Test Set Options
50O RF NA Options:
Option 115 Transmission / Reflection test set, 100 kHz to 1.5 GHz
Option 135 Transmission / Reflection test set, 100 KHz to 3 GHz
Option 215 S-parameter test set, 100 kHz to 1.5 GHz
Option 235 S-parameter test set, 100 kHz to 3 GHz
75O RF NA Options:
Option 117 Transmission / Reflection test set, 100 kHZ to 1.5 GHz
Option 137 Transmisson / Reflection test set, 100 kHz to 3 GHz
Option 217 S-parameter test set, 100 kHz to 1.5 GHz
Option 237 S-parameter test set, 100 kHz to 3 GHz
LF RF NA Option
Option 3L5 5 Hz to 3 GHz
When you just can’t wait
Evaluate the pre-configured E5061BEP ENA series network analyzer – express configuration
RF-NA option
List of Options
|
005
|
Impedance analysis for LF-RF network analyzer |
|
006
|
Wireless power transfer analysis |
|
010
|
Time domain/fault location analysis |
|
019
|
Standard hard disk drive |
|
020
|
Standard hard disk drive |
|
115
|
Transmission/Reflection test set, 100 kHz to 1.5 GHz, 50 ohm system impedance |
|
117
|
Transmission/Reflection test set, 100 kHz to 1.5 GHz, 75 ohm system impedance |
|
135
|
Transmission/Reflection test set, 100 kHz to 3 GHz, 50 ohm system impedance |
|
137
|
Transmission/Reflection test set, 100 kHz to 3 GHz, 75 ohm system impedance |
|
1A7
|
ISO 17025 compliant calibration |
|
1CM
|
Rack mount kit |
|
1CN
|
Front handle kit |
|
1CP
|
Rack mount and front handle kit |
|
1E5
|
High stability timebase |
|
215
|
S-parameter test set, 100 kHz to 1.5 GHz, 50 ohm system impedance |
|
217
|
S-parameter test set, 100 kHz to 1.5 GHz, 75 ohm system impedance |
|
235
|
S-parameter test set, 100 kHz to 3 GHz, 50 ohm system impedance |
|
237
|
S-parameter test set, 100 kHz to 3 GHz, 75 ohm system impedance |
|
3L3
|
LF-RF network analyzer with DC bias source, 5 Hz to 500 MHz |
|
3L5
|
LF-RF network analyzer with DC bias source, 5 Hz to 3 GHz |
|
720
|
Add 50 ohm resistor set |
|
721
|
Add GPIB |
|
731
|
Add Handler IO |
|
810
|
Add keyboard |
|
820
|
Add mouse |
|
A6J
|
ANSI Z540 compliant calibration |
|
PS-S20
|
Startup assistance |
|
R-50C-011-3
|
Agilent Calibration - 3 years |
|
R-50C-011-5
|
Agilent Calibration - 5 years |
|
R-50C-021-3
|
ANSI Z540-1-1994 Calibration - 3 years |
|
R-50C-021-5
|
ANSI Z540-1-1994 Calibration - 5 years |
|
R-51B-001-3C
|
Return to Agilent Warranty - 3 years |
|
R-51B-001-5C
|
Return to Agilent Warranty - 5 years |
|
R-51B-001-C
|
Return to Agilent Warranty - 1 year |
|
Win10
|
|
|
WIN7
|
|
|
WXP
|
Windows XP |
