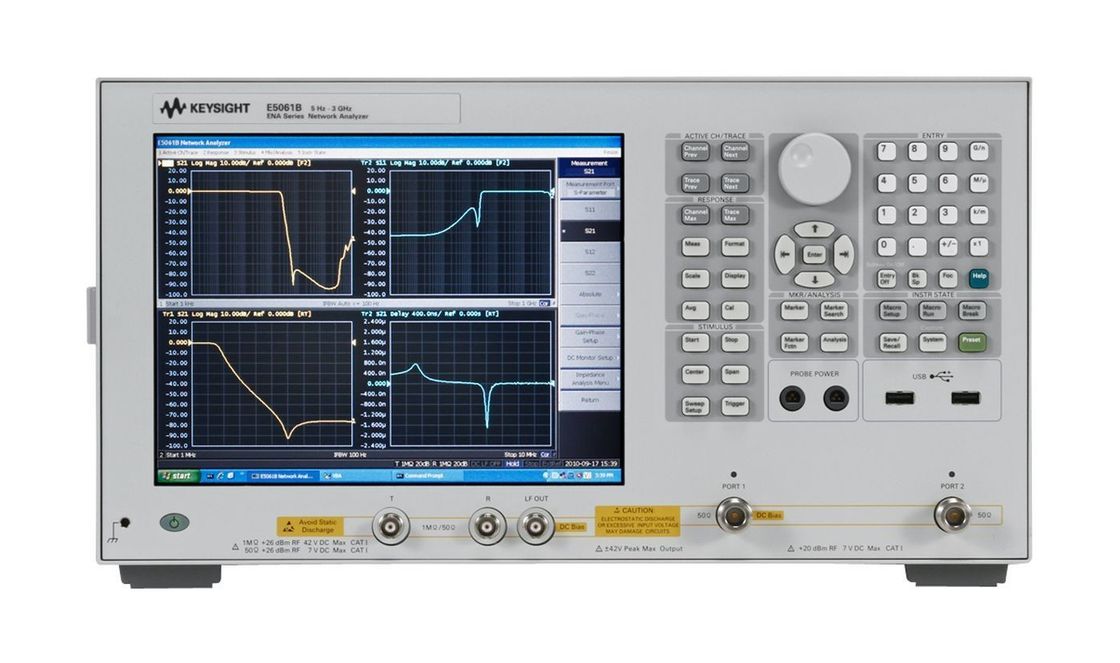

Pre-Owned E5061B ENA Series Vector Network Analyzer with 5 Hz to 3 GHz Frequency and Impedance Measurement

Name: Pre-Owned E5061B ENA Series Vector Network Analyzer with 5 Hz to 3 GHz Frequency and Impedance Measurement
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: E5061B
Availability: InStock

Brand Name:	Keysight (Agilent)
Model Number:	E5061B
MOQ:	1 set
Price:	Negotiation
Delivery Time:	1~3 Working Days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Malaysia

Product Name:

ENA Vector Network Analyzer

Frequency:

5 Hz To 3 GHz

Form Factor:

Benchtop

Type:

Vector Network Analyzer (VNA)

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Packaging Details:

Carton

Supply Ability:

In Stock

Highlight:

3 GHz ENA Vector Network Analyzer

Used ENA Vector Network Analyzer

Product Description

Used E5061B ENA Vector Network Analyzer 5 Hz to 3 GHz Impedance Measurement

Product Overview

The Agilent E5061B is a member of the ENA Series network analyzers, designed to address a broad range of measurement needs for electronic components and circuits from low to high frequencies. This instrument sets a new standard for frequency-domain device analysis from 5 Hz to 3 GHz.

Available Configurations

RF Network Analyzer Options

The E5061B RF Network Analyzer options provide high-performance network analysis for testing RF components, including cellular BTS filters/antennas, MRI coils, RFIDs, and CATV components. Available options include:

E5061B-115/117/135/137/215/217/235/237

LF-RF Network Analyzer Option

The E5061B-3L5 LF-RF NA option offers versatile network analysis in the broad frequency range from 5 Hz to 3 GHz, seamlessly integrating comprehensive LF network measurement capabilities with high-performance RF network analysis.

Impedance Analysis Option

The E5061B-005 provides impedance analysis firmware for the E5061B-3L5 LF-RF network analyzer, enabling measurement of impedance parameters for electronic components such as capacitors, inductors, and resonators.

Test Set Options

50Ω RF NA Options

Option 115: Transmission/Reflection test set, 100 kHz to 1.5 GHz
Option 135: Transmission/Reflection test set, 100 kHz to 3 GHz
Option 215: S-parameter test set, 100 kHz to 1.5 GHz
Option 235: S-parameter test set, 100 kHz to 3 GHz

75Ω RF NA Options

Option 117: Transmission/Reflection test set, 100 kHz to 1.5 GHz
Option 137: Transmission/Reflection test set, 100 kHz to 3 GHz
Option 217: S-parameter test set, 100 kHz to 1.5 GHz
Option 237: S-parameter test set, 100 kHz to 3 GHz

LF-RF NA Option

Option 3L5: 5 Hz to 3 GHz

Express Configuration

The pre-configured E5061BEP ENA series network analyzer offers rapid deployment for immediate testing requirements.

RF-NA Option Features

100 kHz to 1.5 GHz / 3 GHz frequency range
Transmission/Reflection test set and S-parameter test set
50Ω and 75Ω system impedance

LF-RF NA Option Features

5 Hz to 3 GHz frequency range
50Ω S-parameter test set
Gain-phase test port (1 MΩ / 50Ω inputs)
DC-bias source
Impedance analysis function (option 005)

Complete Options List

Option Code	Description
005	Impedance analysis for LF-RF network analyzer
006	Wireless power transfer analysis
010	Time domain/fault location analysis
019	Standard hard disk drive
020	Standard hard disk drive
115	Transmission/Reflection test set, 100 kHz to 1.5 GHz, 50 ohm system impedance
117	Transmission/Reflection test set, 100 kHz to 1.5 GHz, 75 ohm system impedance
135	Transmission/Reflection test set, 100 kHz to 3 GHz, 50 ohm system impedance
137	Transmission/Reflection test set, 100 kHz to 3 GHz, 75 ohm system impedance
1A7	ISO 17025 compliant calibration
1CM	Rack mount kit
1CN	Front handle kit
1CP	Rack mount and front handle kit
1E5	High stability timebase
215	S-parameter test set, 100 kHz to 1.5 GHz, 50 ohm system impedance
217	S-parameter test set, 100 kHz to 1.5 GHz, 75 ohm system impedance
235	S-parameter test set, 100 kHz to 3 GHz, 50 ohm system impedance
237	S-parameter test set, 100 kHz to 3 GHz, 75 ohm system impedance
3L3	LF-RF network analyzer with DC bias source, 5 Hz to 500 MHz
3L5	LF-RF network analyzer with DC bias source, 5 Hz to 3 GHz
720	Add 50 ohm resistor set
721	Add GPIB
731	Add Handler IO
810	Add keyboard
820	Add mouse
A6J	ANSI Z540 compliant calibration
PS-S20	Startup assistance
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C	Return to Agilent Warranty - 3 years
R-51B-001-5C	Return to Agilent Warranty - 5 years
R-51B-001-C	Return to Agilent Warranty - 1 year
Win10
WIN7
WXP	Windows XP
