Keysight Agilent E8363B PNA Network Analyzer 10 MHz to 40 GHz with 110 dB Dynamic Range and Rackmount

Name: Keysight Agilent E8363B PNA Network Analyzer 10 MHz to 40 GHz with 110 dB Dynamic Range and Rackmount
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: E8363B
Availability: InStock

Brand Name:	Keysight (Agilent)
Model Number:	E8363B
MOQ:	1 set
Price:	Negotiation
Delivery Time:	1~3 Working Days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Malaysia

Certification:

ISO 17025 Calibration Certificate

Product Name:

Vector Network Analyzer

Frequency:

10 MHz To 40 GHz

Form Factor:

Rackmount ( /1CM /1CP )

Type:

Vector Network Analyzer (VNA)

Condition:

Pre-Owned

Functions:

Tested In Full Working Conditions

Packaging Details:

Carton

Supply Ability:

in stock

Highlight:

10 MHz PNA Network Analyzer

40 GHz PNA Network Analyzer

Keysight PNA Network Analyzer

Product Description

E8363B PNA Network Analyzer 10 MHz to 40 GHz Keysight Agilent

Product Overview

The E8363B PNA Network Analyzer from Keysight (formerly Agilent) is a high-performance general-purpose network analyzer covering 10 MHz to 40 GHz. This instrument supports optional software and hardware configurations to customize for specific applications including multiport, pulsed-RF, and more.

Network Analyzer Discussion Forum - Discuss calibration, applications, and programming topics
PNA Series Service & Support

Key Features

110 dB dynamic range with <0.006 dB trace noise
<26 μsec/point measurement speed with 32 channels and 16,001 points
TRL/LRM calibration for on-wafer, in-fixture, waveguide, and antenna measurements
Mixer conversion loss, return loss, isolation, and absolute group delay measurements
Amplifier gain compression, harmonic, IMD, and pulsed-RF measurements

Available Options

Option Code	Description
010	Time Domain
014	Configurable Test Set Option (front panel access loops between source output and coupler input)
016	Add Receiver Attenuators (35 dB in 5 dB steps)
022	Extended Memory 512MB
080	Frequency-Offset (for use with mixers, converters and amplifiers)
081	Reference Channel Switch (Adds internal switch to R1 Path)
083	Frequency Converter Measurement Application S/W
1A7	ISO 17025 Compliant Calibration
1CM	Rackmount Kit
1CP	Rackmount and Handle Kit
550	4 Port Measurement Application (Enables full 4-port error correction and differential measurements on 2 Port N/A)
700	Standard test set
720	Extended Memory 512 MB
830	Option Bundle Package of UNL, 014, 016, 080, 081, and H11
831	Option Bundle Package of UNL, 014, 080, 081, and H11
903	120V POWER CORD
A6J	ANSI Z540 compliant calibration with test data
AB1	Korea Quick Users Guide (Korean localization)
AB2	China Quick Users Guide (Chinese localization)
ABA	U.S. Quick Users Guide (English localization)
ABD	Germany Quick Users Guide (German localization)
ABE	Spain Quick Users Guide (Spanish localization)
ABF	France Quick Users Guide (French localization)
ABJ	Japan Quick Users Guide (Japanese localization)
ABZ	Italy Quick Users Guide (Italian localization)
H08	Pulsed-RF measurement capability
H11	IF Access (for antenna, point in pulse, pulse profile and broadband MM wave measurements)
H85	High Power Option w/o Bias Tees (allows RF Amplifiers between RF Source and Coupler Input)
P02	2 Port
P04	4 Port
R-51B-001-3C	1 year Return-to-Agilent warranty extended to 3 years
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6	Commercial calibration with test results data
UNL	High Power Measurement w/ Bias tees Configuration (Allows Ext. Amplifiers between RF Source and Coupler Input)
Z5623A-H81	2 GHz - 20 GHz Uni Directional Pulse Test Set
Z5623A-H83	2 GHz - 20 GHz Dual Directional Pulse Test Set
Z5623A-H84	2GHz-40 GHz Dual Directional Pulse Test Set
Z5623A-H85	1GHz-40 GHz Dual Directional Pulse Test Set
Z5623A-H86	2GHz-40 GHz Uni Directional Pulse Test Set
Z5623A-H87	1GHz-50 GHz Dual Directional Pulse Test Set
Z5623A-H88	1GHz-50 GHz Dual Directional Pulse Test Set (No HPIB)
Z5623A-H89	10 MHz - 5 GHz Uni Directional Pulse Test Set (no HPIB)
Z5623A-H90	1GHz-50 GHz Dual Directional Pulse Test Set (Test Ports on Test Set)

Frequently Asked Questions

Can you ship orders to Canada or Australia?

Yes, we can. We send orders worldwide.

What delivery method do you use and what is the delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

What is your payment term?

100% T/T payment before shipment.

How can I ask any other question?

You can contact us online or leave us messages below.

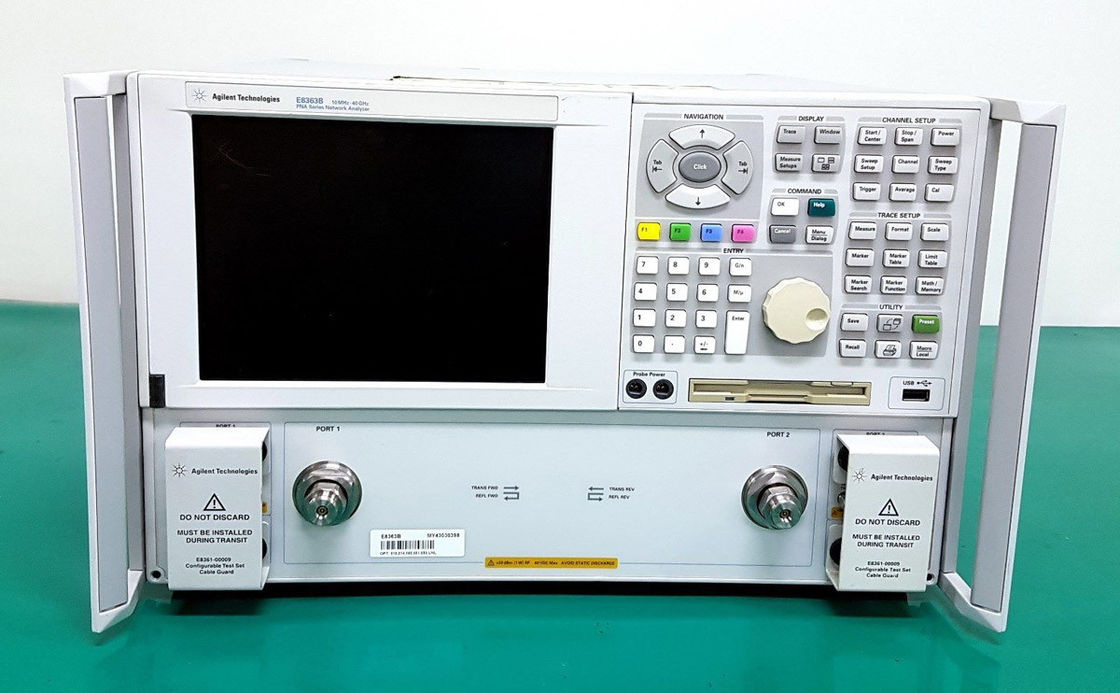

Product Images
