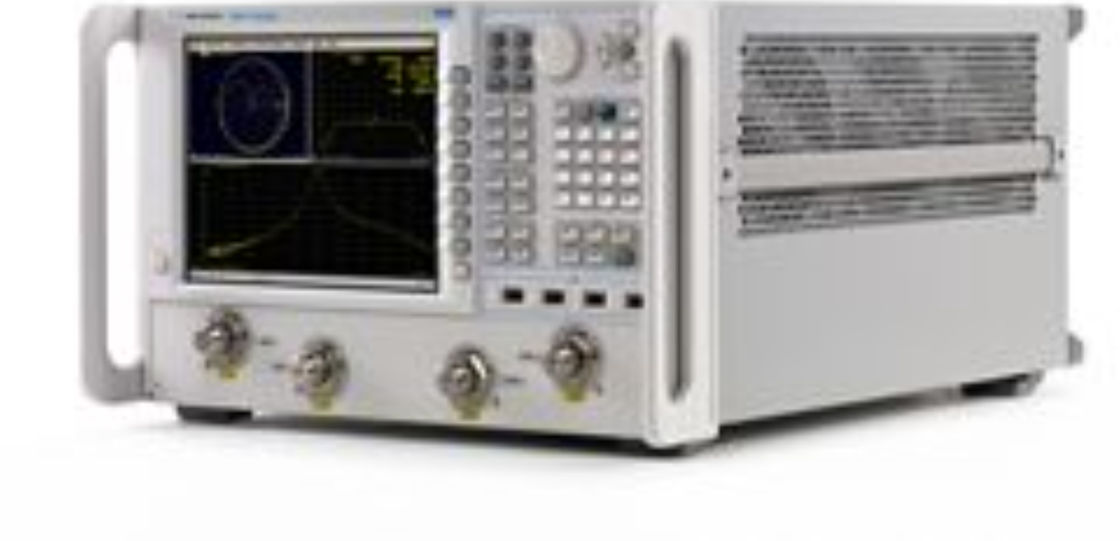

Pre-Owned Keysight N5224A PNA Microwave Network Analyzer 43.5 GHz with Calibration Certificate

Name: Pre-Owned Keysight N5224A PNA Microwave Network Analyzer 43.5 GHz with Calibration Certificate
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: N5224A
Availability: InStock

Brand Name:	Keysight (Agilent)
Model Number:	N5224A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Malaysia

Product Name:

PNA Microwave Network Analyzer

Frequency:

10 MHz To 43.5 GHz

Certificate:

Calibration Certificate

Type:

Vector Network Analyzer (VNA)

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Highlight:

Practical Agilent PNA Network Analyzer

43.5GHz Agilent PNA Network Analyzer

Keysight N5224A

Product Description

Practical 43.5GHz Agilent PNA Network Analyzer, Keysight N5224A VNA

Keysight Agilent N5224A PNA Microwave Network Analyzer 43.5 GHz

The PNA Series represents the highest-performing microwave network analyzer in the industry for passive and active device testing. Choose from five frequency models (13.5, 26.5, 43.5, 50, or 67 GHz) and customize your PNA with the precise level of performance to meet your specific budget and measurement requirements.

The Agilent PNA is designed to test a wide variety of passive and active devices including filters, duplexers, amplifiers, and frequency converters. Its high-performance characteristics make it an ideal solution for component characterizations as well as millimeter-wave, signal integrity, and materials measurements.

Key Features & Specifications

Frequency range: 10 MHz to 43.5 GHz
2-ports with single source or 4-ports with two built-in sources
127 dB system and 132 dB receiver dynamic range
32,001 points, 200 channels, 15 MHz IF bandwidth
High output power (+13 dBm) with wide power sweep range (38 dB)
Best dynamic accuracy: 0.1 dB compression with +12 dBm input power
Low noise floor of -114 dBm at 10 Hz IF bandwidth

Available Options

View the complete list of options

Option Code	Description
007	Automatic Fixture Removal
008	Pulsed RF Measurements
010	Time Domain
020	Add IF inputs
021	Add pulse modulator to internal first source
022	Add pulse modulator to internal second source
025	Add four internal pulse generators
028	Noise figure measurements using standard receivers
080	Frequency offset measurements
082	Scalar calibrated converter measurements
083	Vector and scalar calibrated converter measurements
084	Embedded LO measurements
086	Gain compression application
087	Intermodulation distortion measurements
088	Source phase control
090	Add Spectrum Analyzer Upgrade Option
118	Fast CW Mode
1A7	Agilent Calibration + Uncertainties + Guardbanding
1CM	Rack mount kit for installation without handles
1CP	Rack mount kit for installation with handles
200	2 ports, single source, base hardware configuration
201	2 ports, single source, with configurable test set
210	2 ports, single source, with metrology configuration
217	2 ports, single source, configurable test set, extended power range
219	2 ports, single source, configurable test set, extended power range, bias-tees
301	Application for use with standard CalPods
302	Application for use with temperature-characterized CalPods
400	4 ports, dual source, base hardware configuration
401	4 ports, dual source, with configurable test set
410	4 ports, dual source, with metrology configuration
417	4 ports, dual source, configurable test set, extended power range
419	4 ports, dual source, configurable test set, extended power range, bias-tees
460	Integrated true-mode stimulus application
551	N-port calibrated measurements
897	Built-in performance test software for Agilent inclusive calibration, perpetual license
898	Built-in performance test software for standards compliant calibration, perpetual license
A6J	ANSI Z540-1-1994 Calibration
N1966A	Pulse/IO Adapter
N6171A	MATLAB Software
N6171A-M01	MATLAB-Basic Package, individual license – node-locked
N6171A-M02	MATLAB-Standard Package, individual license – node-locked
N6171A-M03	MATLAB-Advanced Package, individual license – node-locked
P02	2 Port
UK6	Commercial calibration certificate with test data
W7X	Windows 7
