| Brand Name: | Keysight (Agilent) |
| Model Number: | N5224A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

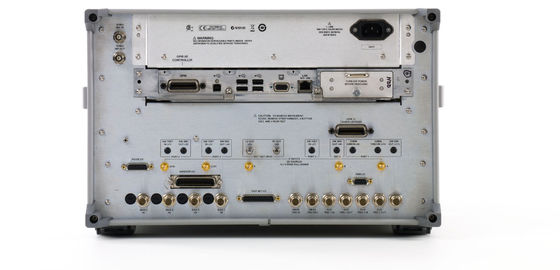

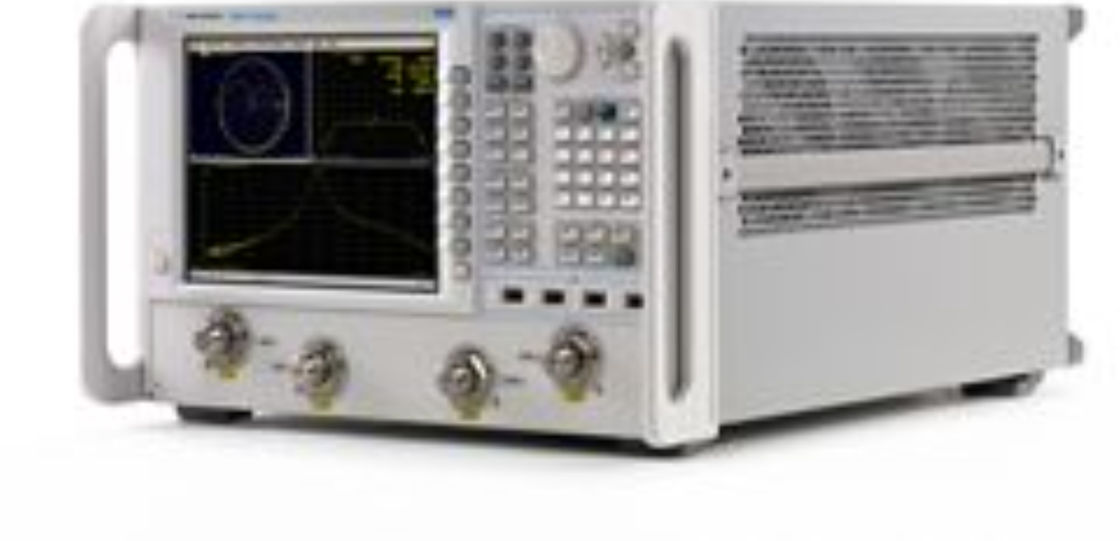

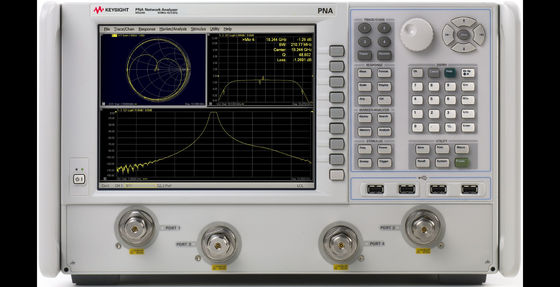

Keysight Agilent N5224A PNA Microwave Network Analyzer 43.5 GHz
Description of Keysight Agilent N5224A
The PNA Series is the highest-performing microwave network analyzer in the industry for passive and active device test. You can choose from five frequency models, 13.5, 26.5, 43.5, 50, or 67 GHz, and customize your PNA with the just the right level of performance to meet your specific budget and measurement needs.
The Agilent PNA is used to test a wide variety of passive and active devices such as filters, duplexers, amplifiers and frequency converters. The high-performance characteristics of the PNA make it an ideal solution for these types of component characterizations as well as millimeter-wave, signal integrity and materials measurements.
Overview and Features of N5224A PNA Microwave Network Analyzer
Features:
| 007 | Automatic Fixture Removal |
| 008 | Pulsed RF Measurements |
| 010 | Time Domain |
| 020 | Add IF inputs |
| 021 | Add pulse modulator to internal first source |
| 022 | Add pulse modulator to internal second source |
| 025 | Add four internal pulse generators |
| 028 | Noise figure measurements using standard receivers |
| 080 | Frequency offset measurements |
| 082 | Scalar calibrated converter measurements |
| 083 | Vector and scalar calibrated converter measurements |
| 084 | Embedded LO measurements |
| 086 | Gain compression application |
| 087 | Intermodulation distortion measurements |
| 088 | Source phase control |
| 090 | Add Spectrum Analyzer Upgrade Option |
| 118 | Fast CW Mode |
| 1A7 | Agilent Calibration + Uncertainties + Guardbanding |
| 1CM | Rack mount kit for installation without handles |
| 1CP | Rack mount kit for installation with handles |
| 200 | 2 ports, single source, base hardware configuration |
| 201 | 2 ports, single source, with configurable test set |
| 210 | 2 ports, single source, with metrology configuration |
| 217 | 2 ports, single source, configurable test set, extended power range |
| 219 | 2 ports, single source, configurable test set, extended power range, bias-tees |
| 301 | Application for use with standard CalPods |
| 302 | Application for use with temperature-characterized CalPods |
| 400 | 4 ports, dual source, base hardware configuration |
| 401 | 4 ports, dual source, with configurable test set |
| 410 | 4 ports, dual source, with metrology configuration |
| 417 | 4 ports, dual source, configurable test set, extended power range |
| 419 | 4 ports, dual source, configurable test set, extended power range, bias-tees |
| 460 | Integrated true-mode stimulus application |
| 551 | N-port calibrated measurements |
| 897 | Built-in performance test software for Agilent inclusive calibration, perpetual license |
| 898 | Built-in performance test software for standards compliant calibration, perpetual license |
| A6J | ANSI Z540-1-1994 Calibration |
| N1966A | Pulse/IO Adapter |
| N6171A | MATLAB Software |
| N6171A-M01 | MATLAB-Basic Package, individual license ? node-locked |
| N6171A-M02 | MATLAB-Standard Package, individual license ? node-locked |
| N6171A-M03 | MATLAB-Advanced Package, individual license ? node-locked |
| P02 | 2 Port |
| UK6 | Commercial calibration certificate with test data |
| W7X | Windows 7 |
FAQ:
1. Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
|
|
