Vector PNA X Microwave Network Analyzer , 10MHz-50GHz Keysight Agilent N5245B

Vector PNA X Microwave Network Analyzer , 10MHz-50GHz Keysight Agilent N5245B

  • Vector PNA X Microwave Network Analyzer , 10MHz-50GHz Keysight Agilent N5245B
  • Vector PNA X Microwave Network Analyzer , 10MHz-50GHz Keysight Agilent N5245B
Vector PNA X Microwave Network Analyzer , 10MHz-50GHz Keysight Agilent N5245B
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: N5245B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: PNA-X Microwave Network Analyzer Frequency: 900 Hz/10 MHz To 50 GHz
Number Of Built-In Ports: 2 Or 4 Ports Type: Vector Network Analyzer
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Vector PNA X Microwave Network Analyzer

,

50GHz PNA X Microwave Network Analyzer

,

N5245B

Keysight Agilent N5245B PNA-X Microwave Network Analyzer 900 Hz / 10 MHz to 50 GHz



Description of  Keysight Agilent N5245B



More than just a vector network analyzer, the PNA-X is the world’s most integrated and flexible microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. The hardware includes two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points. These hardware features provide a powerful core for a broad range of linear and nonlinear measurements, all with a single set of connections to your device under test.



Highlights of N5245B PNA-X Microwave Network Analyzer



  • Simplify your test system by replacing an entire rack of equipment with one PNA-X network analyzer.
  • Reduce test time with the widest range of single-connection measurement applications.
  • Accurately test linear and nonlinear device characterization using advanced error correction.
  • Choose from the industry's widest range of measurement applications for speed, accuracy, and ease of use in advanced RF test.
  • Accelerate insight into component behavior using a multitouch display and intuitive user interface.

Technical Specification

10 MHz to 50 GHz, 2 and 4 ports, up to three sources.





List of Options



007 Automatic fixture removal
010 Time Domain Analysis
011 Enhanced Time Domain Analysis with TDR
015 Dynamic Uncertainty for S-Parameter Measurements
020 Add IF inputs
021 Add pulse modulator to internal 1st source
022 Add pulse modulator to internal 2nd source
025 Basic Pulsed-RF Measurements
026 Advanced Pulsed-RF Measurements
029 Add noise receiver to 50 GHz
080 Frequency Offset Measurements
082 Scalar Mixer/Converter Measurements
083 Vector and Scalar Mixer/Converter Measurements
084 Embedded LO Capability
086 Gain-Compression Measurements
087 Intermodulation Distortion Measurements
088 Source Phase Control
089 Differential and I/Q Device Measurements
201 2-port, configurable test set
217 2-port, configurable test set, source attenuators, receiver attenuators
219 2-port, configurable test set, source attenuators, receiver attenuators, bias tees
222 2-port, configurable test set, source attenuators, receiver attenuators, second source, combiner, mechanical switches
224 2-port, config test set, source/rcvr attenuators, bias tees, 2nd source, combiner, mech switches
401 4-port, configurable test set, with second source
417 4-port, configurable test set, second source, source attenuators, receiver attenuators
419 4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees
422 4-port, configurable test set, second source, source attenuators, receiver attenuators, combiner, mechanical switches
423 4-port, config test set, 2nd source, source/receiver attenuators, bias tees, combiner, mech switches
425 4-port configurable test set, second source, attenuators, low frequency extension, combiner and mechanical switches
S93029B Noise figure measurements with vector correction
S93029B-R-A5A-001-A Node-locked perpetual license
S93029B-R-A6A-001-L KeysightCare software support subscription, node-locked - 12 months
S93083B S93083B Vector and scalar mixer/converter measurements
WIN10 Windows 10



FAQ:

1. Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .

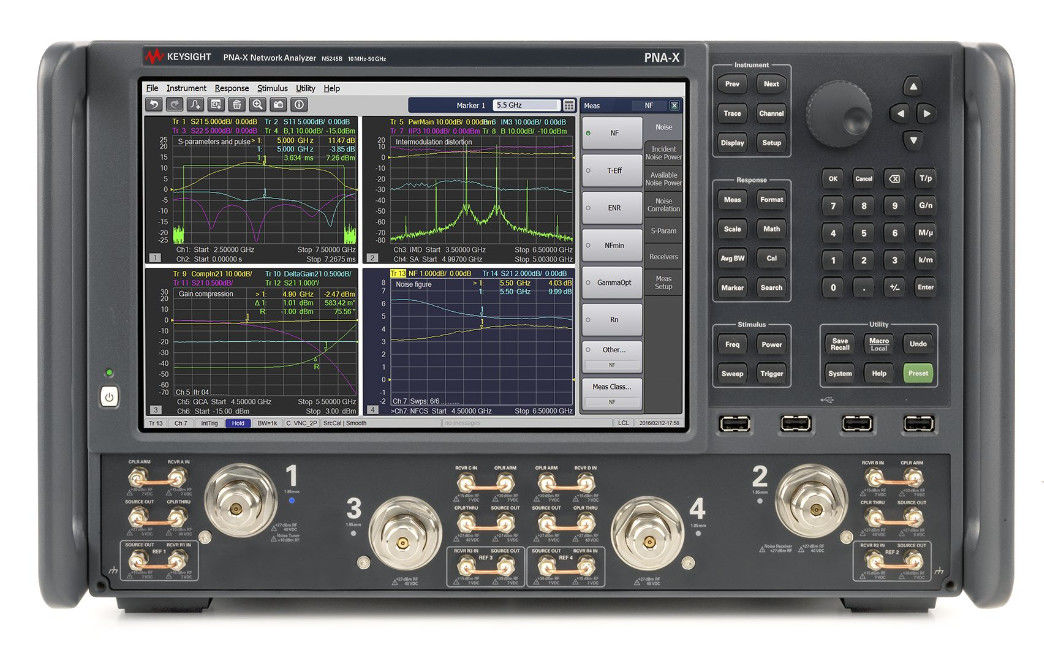

Vector PNA X Microwave Network Analyzer , 10MHz-50GHz Keysight Agilent N5245B 0

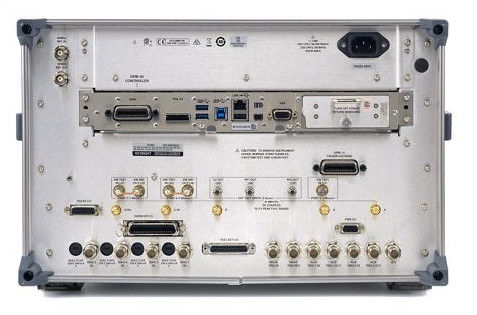

Vector PNA X Microwave Network Analyzer , 10MHz-50GHz Keysight Agilent N5245B 1
