Vector Network Analyzer
Created with Pixso. Practical ENA Vector Network Analyzer Keysight Agilent E5071C Rackmount
Detail Information
Place of Origin:
Malaysia
Product Name:
ENA Vector Network Analyzer
Frequency:
9 KHz To 20 GHz
Form Factor:
Rackmount ( /1CM /1CP )
Type:
Vector Network Analyzer (VNA)
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:

Practical Vector Network Analyzer

,

E5071C Vector Network Analyzer

,

Rackmount ENA Network Analyzer

Product Description

Keysight Agilent E5071C ENA Vector Network Analyzer 9 KHz To 20 GHz



Description of  Keysight Agilent E5071C



The E5071C ENA vector network analyzer, 9 kHz to 20 GHz, with enhanced TDR measurement option.

The E5071C network analyzer offers the highest RF performance and fastest speed in its class, with a wide frequency range and versatile functions. The E5071C is the ideal solution for manufacturing and R&D engineers evaluating RF components and circuits for frequency range up to 20 GHz.


Overview and Features of E5071C ENA Vector Network Analyzer

  • Wide dynamic range: > 123 dB dynamic range at test port (typical)
  • Fast measurement speed: 41 ms @ full 2-port cal, 1601 points
  • Low trace noise: 0.004 dB rms @ 70 kHz IFBW
  • Integrated S-parameter test set
  • Port options: 2-port and 4-port
  • Balanced measurements (4-port option)
  • Frequency options: From 9 kHz - 4.5 GHz/6.5 GHz/8.5 GHz,                                                                                                                                          100 kHz - 4.5 GHz/6.5 GHz/8.5 GHz (with bias tees),                                                                                                                     300 kHz - 14 GHz/20 GHz (with bias tees)
  • Built-in Visual Basic for Applications (VBA)



List of Options



008

Frequency offset mode

010

Time domain analysis

017

Removable hard disk drive

019

Standard hard disk drive

1A7

ISO 17025 compliant calibration

1CM

Rack mount kit

1CN

Front handle kit

1CP

Rack mount and front handle kit

1E5

High stability timebase

230

2-port Test Set, 9 kHz to 3 GHz without Bias Tees

235

2-port Test Set, 100 kHz to 3 GHz with Bias Tees

240

2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees

245

2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees

260

2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees

265

2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees

280

2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees

285

2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees

2D5

2-port Test Set, 300 kHz to 14 GHz with Bias Tees

2K5

2-port Test Set, 300 kHz to 20 GHz with Bias Tees

430

4-port Test Set, 9 kHz to 3 GHz without Bias Tees

435

4-port Test Set, 100 kHz to 3 GHz with Bias Tees

440

4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees

445

4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees

460

4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees

465

4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees

480

4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees

485

4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees

4D5

4-port Test Set, 300 kHz to 14 GHz with Bias Tees

4K5

4-port Test Set, 300 kHz to 20 GHz with Bias Tees

4K5



4K5

4-port Test Set, 300 kHz to 20 GHz with Bias Tees

790

Measurement wizard assistant software

810

Add keyboard

820

Add mouse

903

Power cord

A6J

ANSI Z540 compliant calibration

DM1

Accessories for Demo Unit

E5092A

Configurable Multiport Test Set

PS-S20

Startup assistance

R-50C-011-3

Agilent Calibration - 3 years

R-50C-011-5

Agilent Calibration - 5 years

R-50C-021-3

ANSI Z540-1-1994 Calibration - 3 years

R-50C-021-5

ANSI Z540-1-1994 Calibration - 5 years

R-50J-001-3

Onsite System Verification - 3 years

R-50U-001-3

Onsite Agilent Calibration - 3 years

R-50U-002-3

Onsite ANSI Z540-1-1994 Calibration - 3 years

R-51B-001-3C

Return to Agilent Warranty - 3 years

R-51B-001-5C

Return to Agilent Warranty - 5 years

R-51B-001-C

Return to Agilent Warranty - 1 year

R-51C-001-1CU

Onsite Warranty - 1 year

R-51C-001-3CU

Onsite Warranty - 3 years

TDR

Enhanced Time Domain Analysis

UNQ

Standard stability timebase

W10X

Windows 10 Operating System

W7X

Windows 7 Operating System

WXP

Windows XP OS



FAQ:

1. Can you ship order to Canada or Australia ?

    Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below .

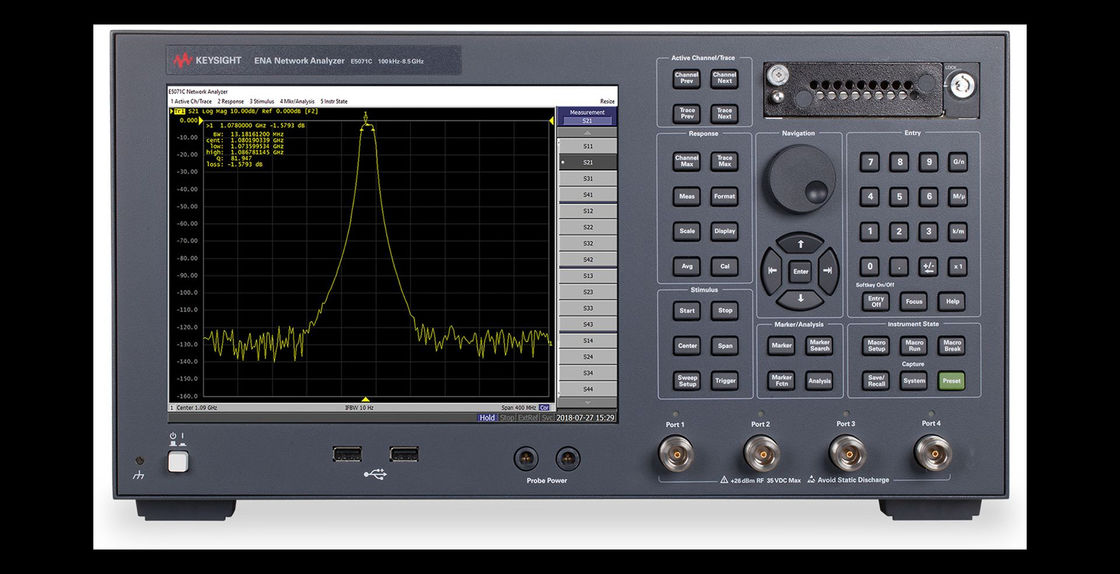

Practical ENA Vector Network Analyzer Keysight Agilent E5071C Rackmount 0

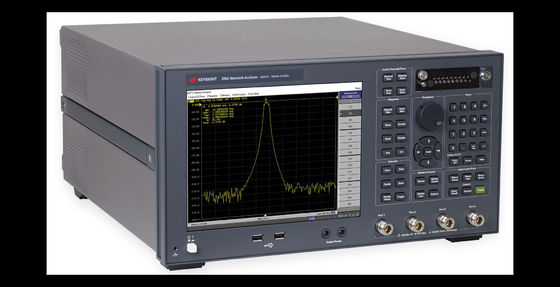

Practical ENA Vector Network Analyzer Keysight Agilent E5071C Rackmount 1

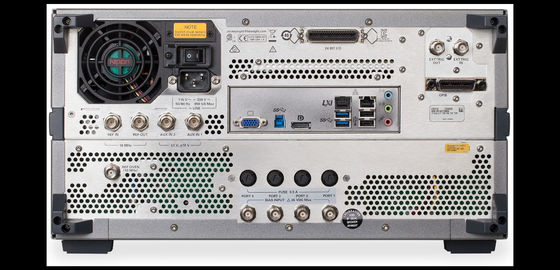

Practical ENA Vector Network Analyzer Keysight Agilent E5071C Rackmount 2
