| Place of Origin: | Malaysia |
| Brand Name: | Keysight (Agilent) |
| Model Number: | N5242A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | in stock |
| Product Name: | PNA-X Microwave Network Analyzer | Form Factor: | Rackmount ( /1CM /1CP ) |
|---|---|---|---|
| Frequency: | 10 MHz - 26.5 GHz | No. Of Ports: | 2- Or 4-ports |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |
| High Light: | N5242A Vector Network Analyzer,26.5 GHz Vector Network Analyzer,Microwave PNA X Network Analyzer |
||

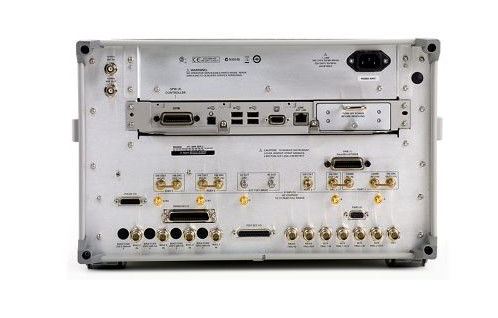

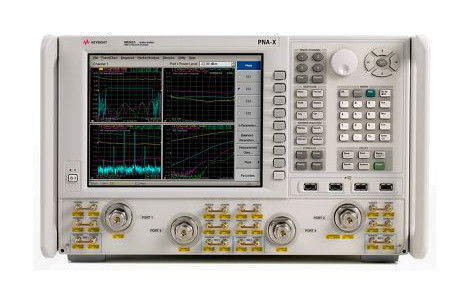

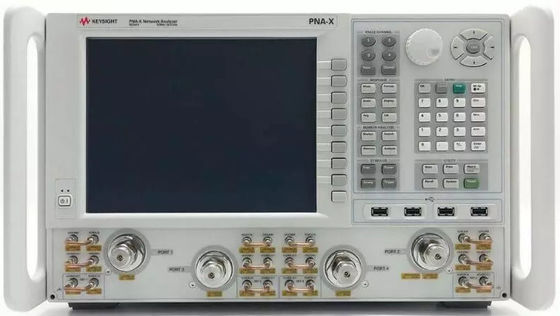

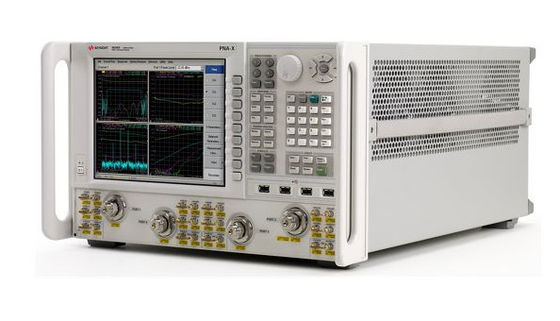

Keysight Agilent N5242A PNA-X Microwave Network Analyzer 26.5 GHz
Description of Keysight Agilent N5242A
The PNA-X network analyzer is the world´s most integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. You can choose from five frequency models to meet your specific device test needs: 13.5, 26.5, 43.5, 50, and 67 GHz. The PNA-X provides unrivaled configurability with a built-in second source, combiner, and internal signal-routing switches.
Overview and Features of N5242A PNA-X Microwave Network Analyzer
Applications:
Features:
| 007 | Automatic Fixture Removal |
| 008 | Pulsed-RF measurements |
| 010 | Time-domain measurements |
| 014 | Configurable Test Set Option (front panel access loops between source output and coupler input) Standard Option |
| 016 | Add Reciever Attenuators (35 dB in 5 dB steps)(Standard Option) |
| 020 | Add IF inputs |
| 021 | Add pulse modulator to internal first source |
| 022 | Add pulse modulator to internal second source |
| 025 | Add four internal pulse generators |
| 028 | Noise figure measurements using standard receivers |
| 029 | Fully-corrected noise-figure measurements to 26.5 GHz |
| 080 | Frequency offset measurements |
| 081 | Reference Channel Switch (Adds internal switch to R1 Path)(Standard Option w/080) |
| 082 | Scalar calibrated converter measurements |
| 083 | Vector and scalar calibrated converter measurements |
| 084 | Embedded LO measurements |
| 086 | Gain compression application |
| 087 | Intermodulation distortion measurements |
| 088 | Source phase control |
| 090 | Spectrum Analyzer |
| 118 | Fast CW mode |
| 1A7 | ISO 17025 compliant calibration |
| 1CM | Rack mount kit for installation without handles |
| 1CP | Rack mount kit for installation with handles |
| 200 | 2 ports, single source |
| 219 | Add extended power range and bias-tees to 2 port analyzer |
| 224 | Add internal second source, combiner and mechanical switches to 2-port analyzer |
| 285 | Add extended power range to 2 port analyzer (no bias tees. |
| 301 | Application for use with standard CalPods |
| 302 | Application for use with temperature-characterized CalPods |
| 400 | 4 ports, dual source |
| 419 | Add extended power range and bias-tees to 4 port analyzer |
| 423 | Add internal combiner and mechanical switches to 4-port analyzer |
| 460 | Integrated true-mode stimulus application |
| 485 | Add extended power range to 4 port analyzer (no bias-tees) |
| 510 | Nonlinear Component Characterization |
| 514 | Nonlinear X-Parameters |
| 518 | Nonlinear Pulse Envelope Domain |
| 520 | Arbitrary load impedance X-parameters |
| 551 | N-port calibrated measurements |
| 629 | Noise figure accessories |
| 897 | Built-in performance test software for Agilent inclusive calibration, perpetual license |
| 898 | Built-in performance test software for standards compliant calibration, perpetual license |
| A6J | ANSI Z540 compliant calibration |
| H08 | Pulsed - RF measurments |
| H85 | Removes bias tees between source attenuators and test port couplers |
| N1966A | Pulse/IO Adapter |
| N8981A | Spare hard drive for use with 1.1 GHz Pentium M CPU board Recommended for use in secure environments |
| P04 | 4 Ports Native |
| PS-S10 | Remote scheduled productivity assistance. Select 1 to 999 hours. |
| PS-S20 | Startup assistance |
| PS-S20-01 | Recommended Startup assistance |
| PS-T10-PNA | PNA operator training for 8 students at the customer's site , H7215B-203 |
| PS-T12-PNA | PNA programming for 8 students at the customer's site , H7215B-204 |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-016-3 | ISO 17025 Compliant Calibration - 3 years |
| R-50C-016-5 | ISO 17025 Compliant Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| R-50J-001-3 | Onsite System Verification - 3 years |
| R-50U-001-3 | Onsite Agilent Calibration - 3 years |
| R-50U-002-3 | Onsite ANSI Z540-1-1994 Calibration - 3 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| R-51B-001-5C | Return to Agilent Warranty - 5 years |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
| R-51C-001-1CU | Onsite Warranty - 1 year |
| R-51C-001-3CU | Onsite Warranty - 3 years |
| S02 | Second Source Module |
| UK6 | Commercial calibration certificate with test data |
| UNL | High Power Measurement w/ Bias tees Configuration (Allows Ext. Amplifiers between RF Source and Coupler Input)(Standard Option) |
| Win7 | Windows 7 Operating System |
| WXP | Windows XP OS |
