Dual Output Autoranging DC Power Supply 400 W Programmable Bench Power Supply

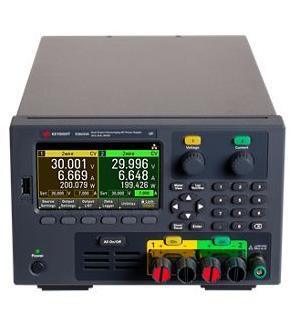

Keysight Agilent E36233A Dual Output Autoranging DC Power Supply — 400 W, 30 V / 20 A per Output

The Keysight (Agilent) E36233A is a 400 W bench power supply with two independent autoranging outputs. Each output delivers up to 200 W at 30 V and 20 A, and the autoranging topology lets one instrument cover the wide voltage and current combinations typically needed across a bench full of different loads, instead of stacking several fixed-range supplies.

Both outputs can be used independently, or connected in series for up to 60 V or in parallel for up to 40 A when a single higher-power rail is required. Four-wire remote sensing compensates for lead resistance at the load, keeping the voltage at the device under test accurate even with long cables or high-current wiring.

• Two independent autoranging outputs, 200 W each, 400 W total
• 0–30 V and 0–20 A per output with full autoranging range
• Outputs can be combined in series or parallel for higher voltage or current
• Four-wire remote sense to correct for lead and contact resistance
• High programming and readback accuracy with low ripple and noise
• OVP, OCP and OTP protection to safeguard valuable loads
• Front and rear output terminals for bench or rack system wiring
• USB and LAN interfaces with SCPI command control, GPIB per option
• Pre-owned unit, tested in full working condition with 30-day warranty

• General bench power for R&D and design verification
• Powering RF amplifiers, transceivers and baseband boards
• Automotive electronics and 24 V industrial load testing
• Battery-powered device development and burn-in racks
• Automated test systems using SCPI control over LAN or USB

One pre-owned Keysight Agilent E36233A dual output power supply, function tested and verified in full working condition, supplied with power cord and export-grade protective packaging. Fresh calibration and test reports can be arranged on request, and GPIB option availability varies per unit — tell us your requirement and we will confirm the exact configuration before shipment.

We specialise in pre-owned Keysight, Agilent, Tektronix, Anritsu and Rohde & Schwarz test equipment. Every instrument is function tested before shipment, packed with shock-absorbing foam and backed by a 30-day warranty. Worldwide shipping and technical support are available on every order.
