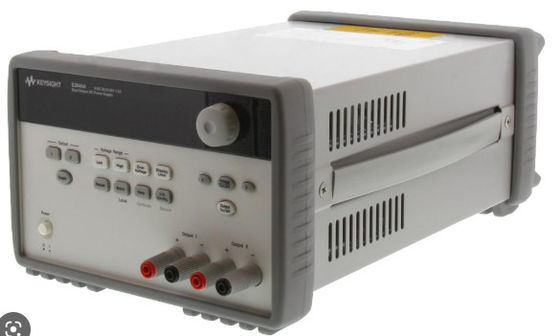

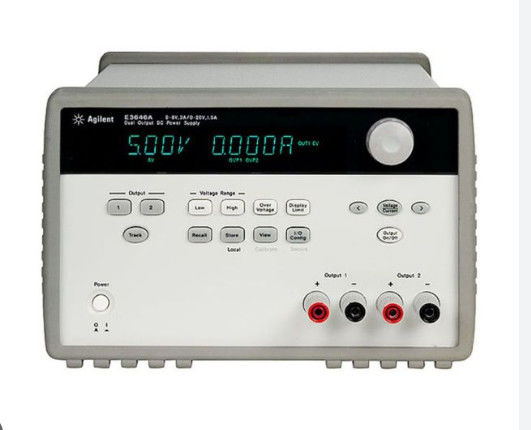

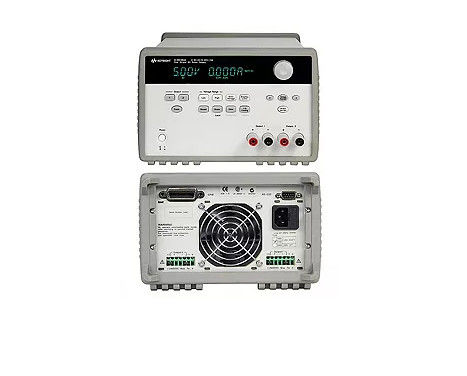

Durable Stable Agilent Power Supply Keysight E3646A With GPIB RS232

Durable Stable Agilent Power Supply Keysight E3646A With GPIB RS232

  • Durable Stable Agilent Power Supply Keysight E3646A With GPIB RS232
  • Durable Stable Agilent Power Supply Keysight E3646A With GPIB RS232
  • Durable Stable Agilent Power Supply Keysight E3646A With GPIB RS232
Durable Stable Agilent Power Supply Keysight E3646A With GPIB RS232
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: E3646A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: DC Power Supply Ripple & Noise: Ripple & Noise 20 Hz To 20 MHz
Normal Mode Voltage:: <5 MVpp / 0.5 MVrms Normal Mode Current:: <4 MArms
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Durable Agilent Power Supply

,

RS232 Agilent Power Supply

,

Stable E3646A Power Supply

Keysight Agilent E3646A DC Power Supply Connectivity GPIB RS232 Programmable
Description of Keysight Agilent E3646A
  • Agilent basic DC power supplies offer essential features for a tight budget. The single & dual output, 30-100 W GPIB E3640 series provide small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features. The Agilent 30W, single output E3641A is a stable and reliable power supply for benchtop and basic automated test applications, and enables versatile solutions for tests that require moderate speed and precision with both GPIB and RS232.


Output Ratings (@ 0°C to 40°C)

  • Range 1: 0 to 8 V / 3 A
  • Range 2: 0 to 20 V / 1.5 A

Programming Accuracy (@ 25°C ±5°C), ±(% output + offset)

  • Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
  • Current: <0.2% + 10 mA

Ripple & Noise 20 Hz to 20 MHz

  • Normal Mode Voltage: <5 mVpp / 0.5 mVrms
  • Normal Mode Current: <4 mArms
  • Common Mode Current: <1.5 uArms

Readback Accuracy (@ 25°C ±5°C), ±(% output + offset)

  • Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
  • Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)



List of Options
0B0 Do not include manuals
0E3 AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
0E9 AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz
0EM AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
0L1 Standard documentation package
0L2 English language operation manual, printed
1CM Rackmount Kit - mounts one with blank filler panel included
E3600A-100 Test Lead Kit, Banana plug to SMT grabber
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
UK6

Commercial calibration certificate with test data included
