AC DC Variable Power Supply
Created with Pixso. MPS 4 Slot Programmable Power Supply , Agilent N6701A DC Power Supply

MPS 4 Slot Programmable Power Supply , Agilent N6701A DC Power Supply

Brand Name: Keysight (Agilent)
Model Number: N6701A
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Malaysia
Product Name:
DC Power Supply
Number Of Outputs:
1
Total Power:
20 To 300 W
Nominal Input Ratings::
100 VAC - 240 VAC; 50/60/400 Hz
Input Range::
86 VAC - 264 VAC
Power Consumption::
1500 VA Typical
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:

MPS Programmable Power Supply

,

4Slot Programmable Power Supply

,

Agilent N6701A

Product Description

Keysight Agilent N6701A DC Power SupplyLow Profile MPS Mainframe 600W 4 Slot Programmable



Description of  Keysight Agilent N6701A



  • The Agilent N6701A is a 600 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB, interfaces standard, and LXI Class C compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W



Maximum total output power (= Sum of Total Module Output Power)

  • 600 W when operating from 100 - 240 VAC input

AC input

  • Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
  • Input Range: 86 VAC - 264 VAC
  • Power Consumption: 1500 VA typical
  • Fuse Internal fuse (not customer accessible)

Protection response characteristics

  • INH input: 5 µs from receipt of inhibit to start of shutdown
  • Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)
List of Options
0B0 Do not include manuals
0L1 English Printed Manual Set (full documentation on CD-ROM)
908 Rack Mount Kit, P/N N6700-60001
FLR Filler Tray Support
FLR FILLER PANEL KIT
N6700B-FLR Filler Panel Kit for Low-Profile Modular Power System Mainframes - 3 panels
N6708A Filler Panel
N6709A Low-Profile MPS Mainframe Rack Mount Kit
PLG Continental European power cord - only for EU DISTR W MULT PWR CORD standards
R-51B-001-C Return to Agilent Warranty - 1 year

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .

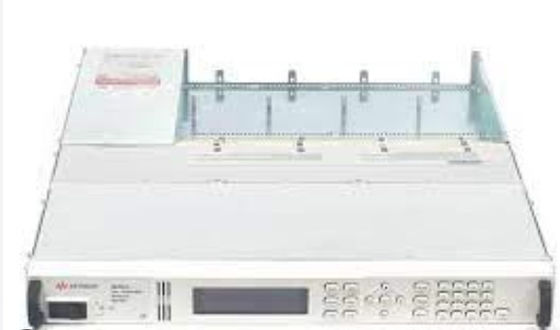

MPS 4 Slot Programmable Power Supply , Agilent N6701A DC Power Supply 0

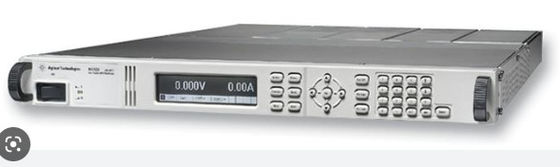

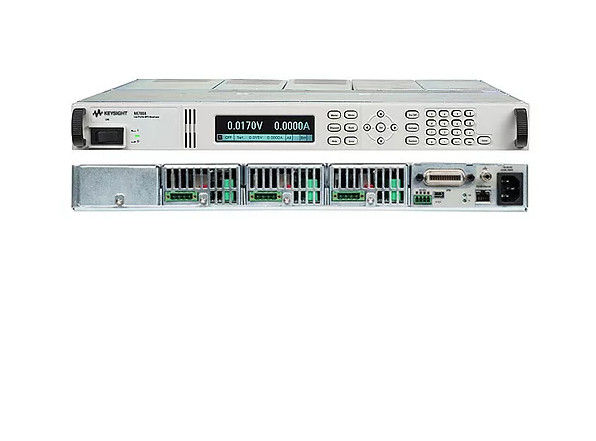

MPS 4 Slot Programmable Power Supply , Agilent N6701A DC Power Supply 1MPS 4 Slot Programmable Power Supply , Agilent N6701A DC Power Supply 2
