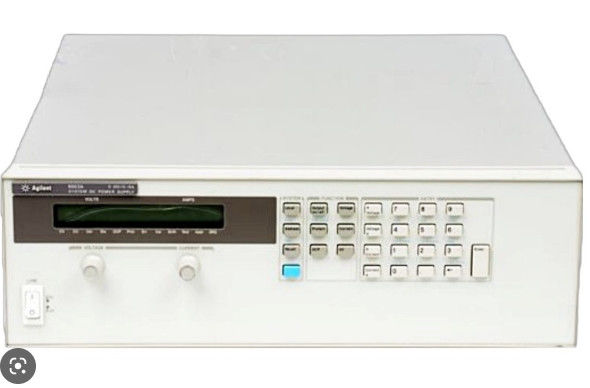

Keysight Agilent 6653A 500Watt Programmable DC Power Supply with 35V Output

Name: Keysight Agilent 6653A 500Watt Programmable DC Power Supply with 35V Output
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 6653A
Availability: InStock

Brand Name:	Keysight (Agilent)
Model Number:	6653A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Malaysia

Product Name:

DC Power Supply

Number Of Outputs:

Output Voltage::

0 To 35 V

Maximum Current (50°C/55°C)::

13.5 A/12.8 A

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Highlight:

500Watt programmable power supply

Keysight Agilent 6653A power supply

AC DC variable power supply

Product Description

500Watt System AC DC Variable Power Supply Programmable Keysight Agilent 6653A

Product Overview

Keysight Agilent 6653A 500 Watt System Power Supply 35V 15A Programmable Power Supply

Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single output, 500W GPIB 665x series provide fast, low-noise outputs; analog control of output voltage and current; and fan-speed control to minimize acoustic noise.
The Agilent 525W, single output 6653A is a fast and flexible power supply for automated testing, designed to increase test throughput with fast up- and down-programming times.

Output Specifications

Output voltage	0 to 35 V
Output current (40°C)	0 to 15 A
Maximum current (50°C)	13.5 A
Maximum current (55°C)	12.8 A

Performance Characteristics

Ripple & Noise (20 Hz to 20 MHz)

Voltage RMS	400 µV
Voltage Peak-to-Peak	4 mV
Current RMS	5 mA
Voltage Accuracy	0.06% + 15 mV
Current Accuracy	0.15% + 13 mA

Programming Accuracy

Measured at 25°C ±5°C

Available Options

Option Code	Description
0B0	Do not include manuals
0B3	Service manual (p/n 5959-3376)
0L1	English Printed Users and Programming Guide (full documentation on CD-ROM)
0L2	Additional standard documentation package
100	87-106VAC operation, 50/60Hz
120	104-127VAC operation, 50/60Hz
1BN	Standard 45662A Calibration Certification
1BP	Standard 45662A Calibration with Test Data
220	191-233VAC operation, 50/60Hz
240	209-254VAC operation, 50/60Hz
82350B	PCI High-Performance GPIB Interface Card
908	Rack Flange Kit for Use without Handles
909	Front Handle & Rack Flange Kit
910	Additional operating and service manual
A6J	Certificate of calibration - ANSI/NCSL Z540, printed
J04	Voltage increased to 40 V, current reduced to 12.5 A; 525 Watts
J17	Current increased to 17.5 A, voltage reduced to 30 V; 525 Watts
PLG	Continental European power cord - only for EU DISTR W MULT PWR CORD standards
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-C	Return to Agilent Warranty - 1 year
S50	Non-latching remote inhibit
UK6	Commercial calibration certificate with test data included
