600 W 4 Slot Modular Mainframe DC Power Analyzer Programmable Power Supply

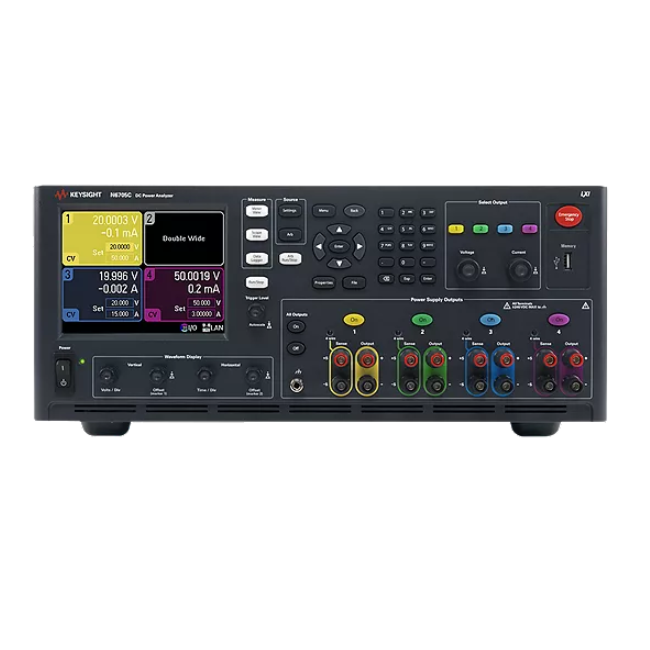

The Keysight N6705C DC power analyzer is the current-generation model of the N6705 family, delivering unrivaled productivity for sourcing and measuring DC voltage and current into the DUT. It integrates up to four advanced N6700-series DC power modules with DMM, oscilloscope, arbitrary waveform generator and data logger functions in a single 4-slot mainframe providing up to 600 W total output power, eliminating the need for multiple instruments, shunts or current probes and complex test setups.

• Easy-to-use R&D tool for sourcing and measuring DC voltage and current into the DUT
• Integrates the capability of up to 4 power supplies, DMM, scope, arb and data logger
• Access all capabilities without programming via the front panel or 14585A software
• Intuitive dedicated physical controls for common functions
• Large color graphics display with color-coded connections and controls
• 4-slot mainframe accepts 30+ N6700-series modules, up to 600 W total output power
• Programmable via standard GPIB, LAN and USB; LXI compliant

• R&D characterization of DC-DC converters, power amplifiers and integrated circuits
• Battery-powered device current profiling and power consumption analysis
• Automated test with built-in data logging and arbitrary waveform generation
• General benchtop DC sourcing and precision measurement
