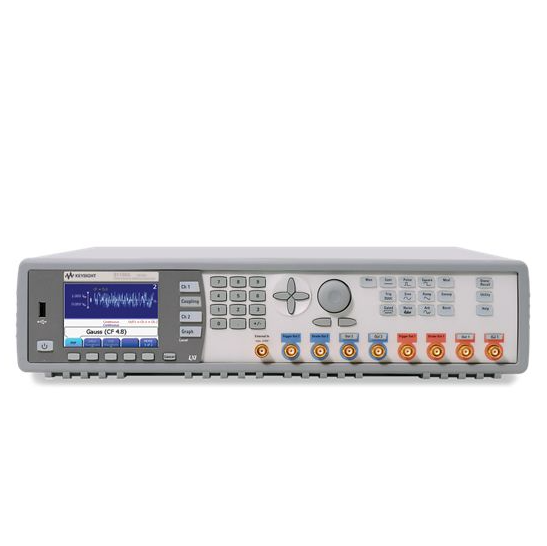

Keysight 81150A Pulse Function Arbitrary Noise Generator with 240 MHz Sine 14-bit Vertical Resolution and 2 GSa/s Sample Rate

Name: Keysight 81150A Pulse Function Arbitrary Noise Generator with 240 MHz Sine 14-bit Vertical Resolution and 2 GSa/s Sample Rate
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 81150A
Availability: InStock

Brand Name:	Keysight
Model Number:	81150A
MOQ:	1 Set
Price:	Negotiation
Delivery Time:	3-5 working days for stock, 2-4 weeks for backorder
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

United States

Certification:

CE, FCC, ISO 9001:2015

Sine Frequency Range:

1 UHz To 240 MHz

Waveform Types:

Pulse, Sine, Square, Ramp, Triangle, Noise, Arbitrary

Output Amplitude:

20 MVpp To 20 Vpp (into 50 Ohm)

Dimensions:

133 X 426 X 375 Mm

Vertical Resolution:

14-bit

Sample Rate:

2 GSa/s

Packaging Details:

Original Keysight packaging with anti-static protection, export-grade corrugated carton with shock-proof foam inserts

Supply Ability:

in stock

Highlight:

Pulse Function Arbitrary Noise

14-bit 2 GSa/s Output

Keysight 81150A 240 MHz

Product Description

Keysight 81150A Pulse Function Arbitrary Noise Generator

1 µHz to 120 MHz Pulse | 240 MHz Sine | 14-bit | 2 GSa/s

Key Features

Four Instruments in One

Combines pulse generator, function generator, arbitrary waveform generator, and noise generator in a single unit

14-bit Vertical Resolution

High 14-bit resolution at 2 GSa/s sampling rate for precise and low-distortion waveform generation

Wide Frequency Coverage

Pulse up to 120 MHz and sine up to 240 MHz with 1 µHz frequency resolution for demanding applications

Built-in Noise Generation

Integrated noise source with selectable crest factor for analog and digital stress testing

Product Overview

The Keysight 81150A is a versatile four-in-one signal generation instrument that combines pulse, function, arbitrary waveform, and noise generation into a single benchtop unit. With 14-bit vertical resolution and a 2 GSa/s sampling rate, it produces exceptionally clean and precise waveforms from 1 µHz to 120 MHz for pulse signals and up to 240 MHz for sine output. The integrated noise generator with selectable crest factor enables realistic signal impairment simulation for stress testing analog and digital circuits. Comprehensive modulation capabilities including AM, FM, PM, PWM, and FSK make the 81150A ideal for communications testing, semiconductor characterization, and R&D applications. Standard LAN, USB, and GPIB interfaces support seamless integration into automated test systems.

Applications

Semiconductor device characterization and validation
Analog and digital circuit stress testing with noise injection
Communications system modulation testing (AM, FM, PM, FSK)
Arbitrary waveform replay for sensor and actuator simulation
Pulse parameter testing for high-speed digital designs
Clock generation and jitter tolerance testing
Automated test equipment (ATE) system integration

Technical Specifications

Parameter	Specification
Pulse Frequency Range	1 µHz to 120 MHz
Sine Frequency Range	1 µHz to 240 MHz
Vertical Resolution	14-bit
Sample Rate	2 GSa/s
Output Amplitude (50 Ohm)	20 mVpp to 20 Vpp
Channel Count	1 Channel
Modulation Modes	AM, FM, PM, PWM, FSK
Waveform Types	Pulse, Sine, Square, Ramp, Triangle, Noise, Arbitrary
Interface	LAN, USB, GPIB
Weight	9.5 kg (20.9 lb)
Dimensions (H x W x D)	133 x 426 x 375 mm
Warranty	1 Year Standard
