U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer

U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer

  • U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer
  • U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer
  • U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer
  • U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer
  • U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer
U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: U8903A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Audio Analyzer Form Factor: Benchtop
Connector: USB 2.0, LAN And GPIB Frequency: 10 Hz To 100 KHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

U8903A Electronic Test And Measurement Equipment

,

Benchtop Electronic Test And Measurement Equipment

,

Agilent U8903A Audio Analyzer

Keysight Agilent U8903A Audio Analyzer 10 Hz To 100 KHz 2 In 1 Screen

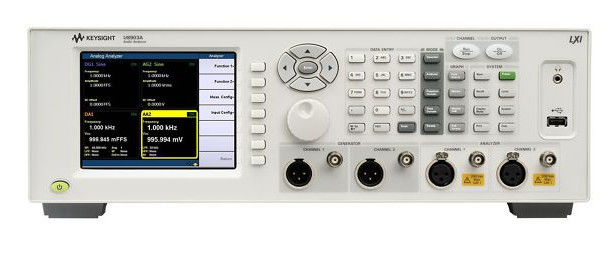

Description of Keysight Agilent U8903A



The U8903A audio analyzer combines the functionality of a distortion meter, SINAD meter, frequency counter, AC voltmeter, DC voltmeter and FFT analyzer with a low-distortion audio source. On the bench or in a test system, its accuracy and versatility will help you make an audible difference in your end product.

The U8903A is the next-generation replacement for the widely used HP 8903B audio analyzer. To further ease the transition process, the U8903A audio analyzer features a built-in code emulator which allows the U8903A to read the old R2D2 programming codes of the 8903B. For existing customers, the code emulator is available via a new firmware upgrade.

Application Note ''Migrating Code from the 8903B to U8903A'' provides compatible equivalent commands, and sample test programs comparing the old R2D2 codes with new U8903A SCPI commands.





Overview and Features of U8903A Audio Analyzer

  • Perform two-channel analog and digital audio measurements for IC components, wireless and consumer audio
  • Simplify your testing environment with automatic tests and built-in test sequences
  • Characterize and meet audio quality standards
  • Code compatible with the HP 8903B audio analyzer
List of Options



101 Male BNC to Male BNC cable, 1.2m, jade gray
102 Male BNC to Male RCA cable, 2m, black
103 Male XLR to Female XLR, 2m, black
107 Cable, accessory- Male XLR-2 male BNC analyzer, 0.26m
108 Cable, accessory- Female XLR-2 male BNC generator, 0.26m
109 BNC accessory kit
113 Audio analyzer 2 channel with 2 in 1 digital audio card, AES3-SPDIF and DSI
114 Audio analyzer 2 channel with digital audio card, AES3-SPDIF
115 Audio analyzer 2 channel with digital audio card, DSI
1A7 ISO17025 Compliant Calibration Test Data
200 Audio Analyzer 2 Channel
A6J ANSI Z540 compliant calibration with data
A6J ANSI Z540 compliant calibration with data
ACF Japan - Japanese quick start guide, printed
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year





FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .





U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer 0U8903A Electronic Test And Measurement Equipment Keysight Agilent Audio Analyzer 1
