Created with Pixso. 200V 1A Semiconductor Parameter Analyzer , Practical Keysight Agilent 4155C
Detail Information
Place of Origin:
Malaysia
Product Name:
Semiconductor Parameter Analyzer
Capabilities:
1A/200V
Volt:
+/- 200s
High-Power:
+/- 1 Amp
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:

200V Semiconductor Parameter Analyzer

,

1A Semiconductor Parameter Analyzer

,

Agilent 4155C

Product Description

Keysight Agilent 4155C Semiconductor Parameter Analyzer Cost-effective



Description of Keysight Agilent 4155C

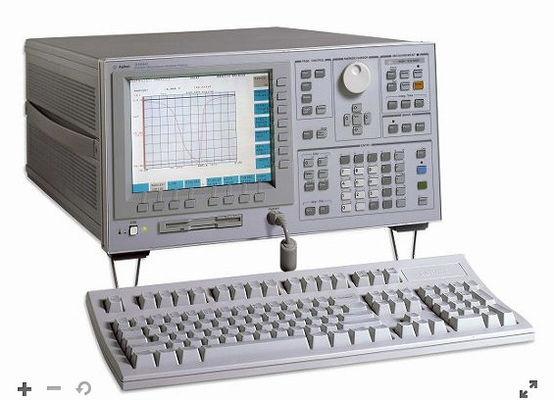

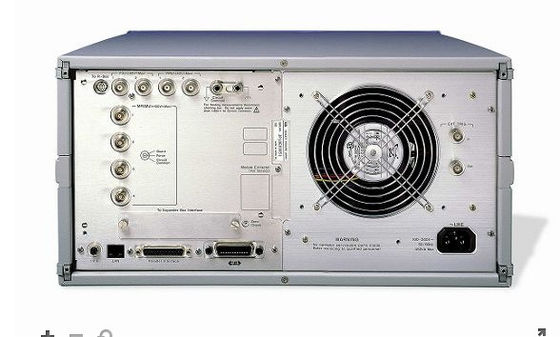

The Agilent 4155C Semiconductor Parameter Analyzer is a cost-effective, accurate laboratory bench top solution for advanced device characterization. The 41501B Expander extends your capabilities to 1A/200V, and add a low noise ground unit and dual pulse generators on the 4155C.

You can also control your 4155B/C or 4156B/C parameter analyzer from a PC with Desktop EasyEXPERT software. The new version of Agilent Desktop EasyEXPERT software, which is included with the 4155C/4156C, is able to control the Agilent 4155B/C and 4156B/C parameter analyzers too. To learn more please see the following document.





Overview and Features of 4155C Semiconductor Parameter Analyzer



  • General features

  • Cost-effective, accurate laboratory bench top parameter analyzer
  • 4x Medium-power SMU, 2xVSU and 2xVMU
  • Fill-in-the blanks front panel operation
  • Includes Desktop EasyEXPERT software for PC-based GUI instrument control

  • Measurement capabilities

  • 10 femtoamp and 0.2 microvolt measurement resolution
  • QSCV, Stress Mode, Knob-sweep, and Stand-by functions
  • +/- 200 Volts and +/- 1 Amp High-Power SMU, Pulse Generator capabilities available by optional 41501B

  • Desktop EasyEXPERT software

  • Same test and measurement environment for B1500A Semiconductor Device Analyzer
  • Intuitive, task-oriented approach to parametric test
  • Furnished with over 80 pre-defined, user-modifiable application tests
  • Automatically save data to hard disk drive or any networked drive
  • Offline data analysis and application test development via Desktop EasyEXPERT software
List of Options
020 Delete Windows Controller for Parametric Analysis and Characterization
0KN Self paced training
200 1.5m interlock, 4x coaxial, 4x triaxial cables
230 3.0m interlock, 4x coaxial, 4x triaxial cables
41501B Pulse Generator and Expander Unit for the 4155C/4156C
A6J ANSI Z540 compliant calibration with test data
ABA U.S. Quick Users Guide (English localization)
ABJ Japan Quick Users Guide (Japanese localization)
L25 Int opt I/CV 3.0 Parallel Security Key
L26 Int opt I/CV 3.0 USB Security Key
L27 Not 4155C-DIV 3.0
L28 Not 4155C-DIV 3.0 (Japanese Localize)
L90 Int opt 100V TEST
L91 Int opt 120V TEST
L92 Int opt 220V TEST
L93 Int opt 240V TEST
PAR Parallel Security Key
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data
USB USB Security Key
