Hioki PQ3100-94 Power Quality Analyzer Kit with 4 Voltage + 4 Current Channels 1000V AC/DC IEC 61000-4-30 Class A

Name: Hioki PQ3100-94 Power Quality Analyzer Kit with 4 Voltage + 4 Current Channels 1000V AC/DC IEC 61000-4-30 Class A
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: PQ3100-94
Availability: InStock

Brand Name:	Hioki
Model Number:	PQ3100-94
MOQ:	1 Set
Price:	Contact for Price
Delivery Time:	3-5 working days for stock, 15-25 days for production
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Japan

Certification:

IEC 61000-4-30 Class A, CE, IEC 61000-4-15

Display:

6.5-inch Color TFT LCD (640x480)

Voltage Channels:

4 Channels, Up To 1000V AC/DC

Current Channels:

4 Channels, Via CT7136 (600A AC)

Frequency Range:

42-69 Hz

Harmonics:

Up To 50th Order

Flicker Measurement:

Pst, Plt (IEC 61000-4-15)

Data Storage:

SD Card (up To 32 GB)

Interfaces:

USB 2.0, Ethernet (LAN)

Battery:

Rechargeable Li-ion (approx. 8 Hours)

Dimensions:

300 X 215 X 68 Mm

Weight:

Approx. 2.4 Kg (main Unit)

Included Accessories:

4x CT7136 Clamps, L9438-02 Voltage Leads, AC Adapter, SD Card, Carrying Case, Software

Packaging Details:

Hioki original packaging with shock-proof foam insert, export-grade corrugated carton

Highlight:

IEC 61000-4-30 Class A Compliance

4-Channel Power Quality Analyzer Kit

Harmonic Flicker Measurement Real-Time

Product Description

Hioki PQ3100-94 Power Quality Analyzer Kit 4CH 1000V with CT7136 Clamps IEC 61000-4-30 Class A

Product Overview

The Hioki PQ3100-94 is a comprehensive power quality analyzer kit designed for professional power quality analysis in industrial, commercial, and utility environments. Fully compliant with IEC 61000-4-30 Class A, this instrument delivers certified accuracy for voltage, current, harmonics, flicker, and transient measurements across 4 voltage and 4 current channels.

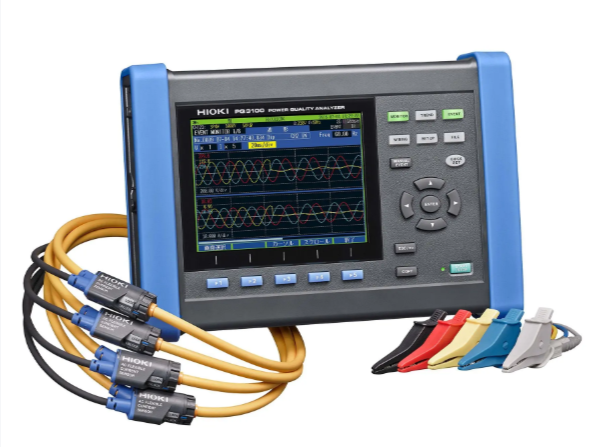

Kit Contents

PQ3100 Main Unit - 4CH power quality analyzer with 6.5-inch color TFT LCD
4 × CT7136 Flexible Clamp Sensors - 600A AC current probes for non-invasive measurement
L9438-02 Voltage Lead Set - 4 voltage measurement leads with color-coded clips
AC Power Adapter / Charger
SD Memory Card for data logging
Rugged Carrying Case
PC Application Software (for data analysis and reporting)

Key Features

IEC 61000-4-30 Class A Certified: Meets the highest international standard for power quality measurement accuracy

4 Voltage + 4 Current Channels: Simultaneous multi-point measurement for comprehensive power system analysis

Wide Voltage Range: Measures up to 1000V AC/DC with high accuracy

Harmonic Analysis up to 50th Order: Detailed harmonic spectrum analysis for troubleshooting power quality issues

Flicker Measurement: Pst and Plt flicker evaluation per IEC 61000-4-15

6.5-inch Color TFT Display: 640×480 resolution for clear waveform and trend visualization

SD Card Logging: Supports up to 32 GB SD cards for long-term unattended monitoring

Dual Connectivity: USB 2.0 and Ethernet (LAN) for remote monitoring and data transfer

Rechargeable Battery: Li-ion battery provides approximately 8 hours of continuous field operation

Transient Detection: Captures voltage transients with waveform recording capability

Measurement Parameters

Parameter Category	Specific Measurements
Voltage	RMS, Peak, DC
Current	RMS, Peak, DC
Power	Active / Reactive / Apparent Power
Power Factor	Power Factor and Displacement Power Factor
Frequency	42-69 Hz
Harmonics	Voltage and Current Harmonics (1st-50th), Total Harmonic Distortion (THD)
Flicker	Pst, Plt
Power Quality Events	Voltage Unbalance, Voltage Dips, Swells, and Interruptions, Transient Overvoltage
Special Measurements	Inrush Current

Applications

Industrial power quality audits and troubleshooting
Utility grid power quality compliance testing
Renewable energy system (solar, wind) grid interconnection analysis
Data center power infrastructure monitoring
Motor drive and inverter harmonic assessment
Semiconductor manufacturing power stability verification

Certifications

The Hioki PQ3100 meets stringent international standards: IEC 61000-4-30 Class A for power quality measurement methods, IEC 61000-4-15 for flicker measurement, and CE marking for European conformity.

Hioki E.E. Corporation - Japan's leading manufacturer of electrical measuring instruments since 1935. www.hioki.com
