ADVANTEST R3755A 300 MHz High Precision Network Analyzer with 4 Measurement Channels

Name: ADVANTEST R3755A 300 MHz High Precision Network Analyzer with 4 Measurement Channels
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: R3755A
Availability: InStock

Brand Name:	ADVANTEST
Model Number:	R3755A
MOQ:	1 set
Price:	Negotiation
Delivery Time:	2 WEEKS
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Japan

Certification:

Product Name:

Network Analyzer

Ripple & Noise:

Ripple & Noise 20 Hz To 20 MHz

Normal Mode Voltage::

<8 MVpp / 1 MVrms

Normal Mode Current::

<4 MArms

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Packaging Details:

Carton

Supply Ability:

in stock

Product Description

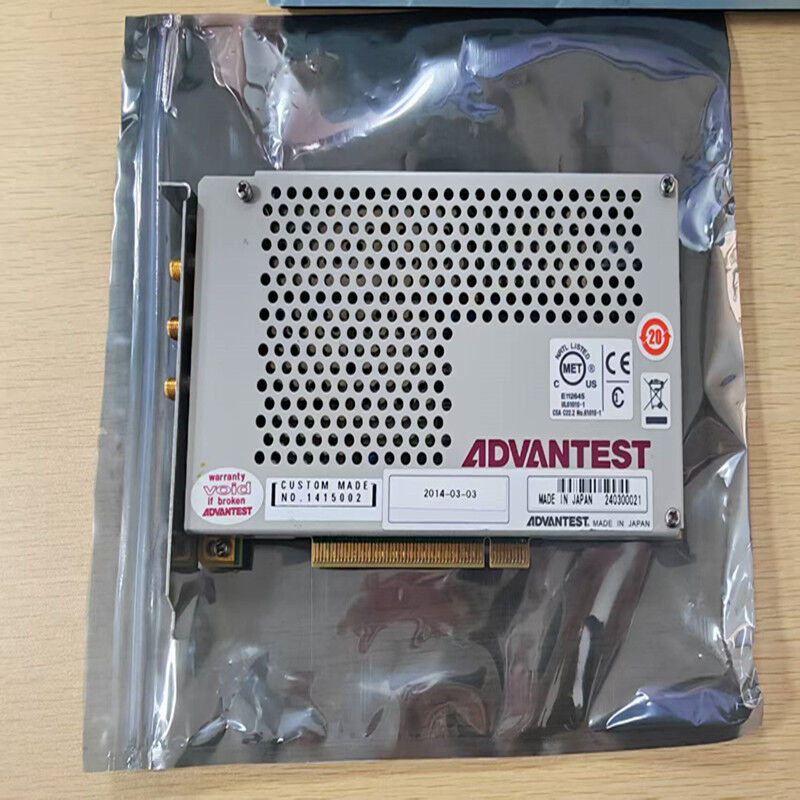

ADVANTEST 300 MHz Board Network Analyzer R3755A With High Precision

Product Overview

The R3755A network analyzer evaluates the frequency characteristics of electronic components, such as crystal resonators and ceramic resonators used in a broad range of electronic equipment, as well as antennas for receiving/transmitting wireless signals.

Measurement Functions

Measurement channels	4
Measurement parameters	A/R (R channel is connected internally)

Signal Source Characteristics

Frequency range	10 kHz to 300 MHz
Resolution	1 mHz
Accuracy	+20 ppm (OPT.20: +1 ppm)
Output range	10 kHz to 1 MHz: 0 to -30 dBm 1 to 300 MHz: +18 to -43 dBm
Resolution	0.1 dB
Range set-up	Start/Stop, or Center/Span
Sweep type	Arbitrary sweep of specified segment
Sweep speed	Maximum 50 usec/point (RBW 15 kHz)
Measurement point	Maximum 1601 points (segment)
Output port	SMA (female) 50Ω connector

Receiving Section Characteristics

Input characteristics

SMA (female) 50Ω connector

General Specifications

Loadable PC expansion slots	2
Development environment	Windows XP sp2 MS VB Net Framework 2.0 or more Microsoft Visual Basic 6.0 or Visual C++ 6.0
Power supply	+5 VDC (7W), +3.3 VDC (10W), +12 VDC (1W), -12 VDC (1W) (typical)
Power consumption	20 W or less
External dimensions	Approx. 190 (W) x 126 (H) x 42 (D) mm
Mass	1 kg or less

Product Specifications

Model No	R3755A
Condition	Used
Manufacturer	Advantest

Optional Feature

This option can change the maximum follow-up voltage in the 1 mA and 10 mA ranges to 1200 V.
