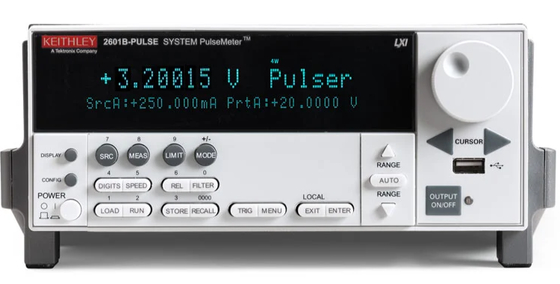

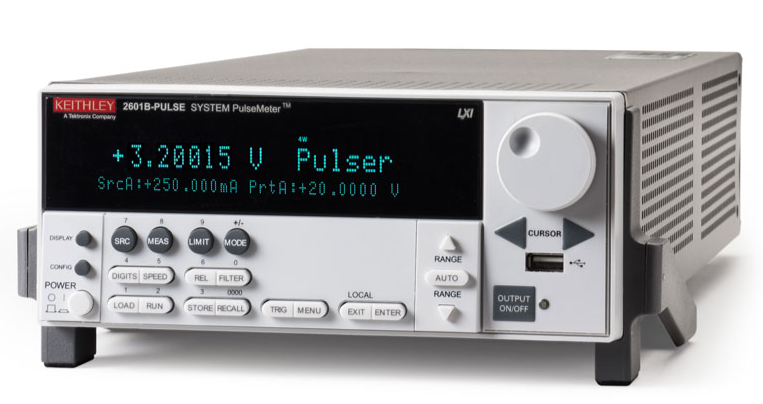

Key Features of Keithley2601B-PULSE

• Industry leading 10 A @ 10 V, 10 microsecond pulse output

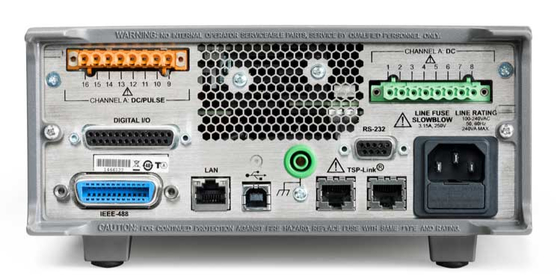

• USB 2.0, LXI Core, GPIB, RS-232, and digital I/O interfaces
• TSP-Link expansion technology for multi-channel parallel test without a mainframe
• TSP technology embeds complete test programs inside the instrument for best-in-class system-level throughput
• DC capability up to ±40 V @ ±1.0 A, 40 Watt
• Dual 1 Megasample/second digitizers for high speed I/V pulse measurements (pulser function only)
• Supported in the Keithley KickStart non-programming software tool

• No tuning required; works with inductive loads up to 3 μH

Specification of Keithley 2601B-PULSE

This document contains specifications and supplemental information for the 2601B-PULSE System SourceMeter 10 µs Pulser/SMU Instrument.

Specifications are the standards against which the 2601B-PULSE is tested. Upon leaving the factory, the 2601B-PULSE meets these
specifications. Supplemental and typical values are non-warranted, apply at 23 °C, and are provided solely as useful information.
Accuracy specifications are applicable for both normal and High Capacitance modes.
The source and measurement accuracies are specified at the terminals of the Pulser/SMU instrument under the following conditions:
1. 18 °C to 28 °C, <70% relative humidity
2. After 2 hour warm-up
3. Speed normal (1 NPLC)
4. A/D auto-zero enabled
5. Remote sense operation only or properly zeroed local operation
6. Calibration period = 1 year
Pulser feature specification accuracies are specified at the terminals of the instrument under these conditions:
• 10 μs aperture minimum.
• Remote sense operation only.
• Total cable and DUT inductance of ≤3 μH, measured at 100 kHz
