Stable N1914A Agilent Power Meter Single Channel Radio Frequency

Stable N1914A Agilent Power Meter Single Channel Radio Frequency

  • Stable N1914A Agilent Power Meter Single Channel Radio Frequency
  • Stable N1914A Agilent Power Meter Single Channel Radio Frequency
  • Stable N1914A Agilent Power Meter Single Channel Radio Frequency
Stable N1914A Agilent Power Meter Single Channel Radio Frequency
Product Details:
Place of Origin: Malaysia
Brand Name: Agilent
Certification: FCC
Model Number: N1914A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Power Meter Form Factor: Plug-In
Video Bandwidth: 400 MHz Measurement Frequency Range: 200 (400)MHz To 4 GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

N1914A Agilent Power Meter

,

Single Channel Agilent Power Meter

,

Stable Radio Frequency Power Meter

N1914A Agilent RF Power Meter



Description of N1914A RF Power Meter



  • Frequency range of 9 kHz to 110 GHz (sensor dependent)
  • Wide dynamic range of -70 to +44 dBm (sensor dependent)
  • Speed improvement by 2X for E-Series sensors: up to 400 readings/sec
  • Go beyond GPIB with LAN LXI-C and USB connectivity
  • Enhanced user interface with high-resolution color display and numeric keypad
  • Code-compatible with 438A power meter
  • Increased measurement channels: up to three channels with two additional U2000 Series power sensors connected using the optional USB hosts
  • Automated frequency/power sweep measurements with the optional external trigger in/out feature

The Agilent N1914A offers powerful features, yet is code compatible with the popular Agilent E4418B and Agilent E4419B EPM power meters. With a reading rate at twice the speed (E-Series power sensors), flexibility of GPIB, LAN LXI-C or USB connectivity, making average power measurements has never been easier. You can connect two additional Agilent U2000 Series power sensors to the power meter via the optional USB hosts, transforming the Agilent N1914A into a 3-channel or 4-channel power meter. Plus, the new color display lets you view and analyze test data more easily.



List of options
004 Delete Power Sensor Cable
005 Include Power Sensor Cable, 11730A Length 5-Ft (1.5m)
0L1 English language user guide, printed
101 Dual Channel Average Power Meter
102 Dual Channel Average Power Meter, Battery
103 Dual Channel Average Power Meter, Battery, 2 Rears USB Ports
104 Dual Channel Average Power Meter, VGA
105 Dual Channel Average Power Meter, Battery, 1 Front 1 Rear USB Ports, VGA
106 Dual Channel Average Power Meter, 1 Front 1 Rear USB Ports
107 Dual Channel Average Power Meter, External Trigger IN/OUT
108 Parallel Rear Panel Sensor Input Connectors and Front Panel Reference Calibrator Connector, 2 Rear USB Ports
109 Parallel Rear Panel Sensor Input Connectors and Rear Panel Reference Calibrator Connector, 2 Rear USB Ports
111 Dual Channel Average Power Meter, Battery, 1 Front 1 Rear USB Ports
112 Dual Channel Average Power Meter; Battery; 1 Front 1 Rear USB Ports; VGA; External Trigger IN/OUT
11730A Sensor Cable 1.5m/5ft (11730A)
11730B Sensor Cable 3m/10ft (11730B)
11730C Sensor Cable 6.1m/20ft (11730C)
11730D Sensor Cable 15.2m/50ft (11730D
11730E Sensor Cable 30.5m/100ft (11730E)
127 Dual Channel Average Power Meter; Battery; External Trigger IN/OUT
167 Dual Channel Average Power Meter; 1 Front 1 Rear USB Ports; External Trigger IN/OUT
1A7 ISO17025 Compliant Calibration Test Data
200 Code Compatibility for 438A
201 Single channel average power meter with VGA, trigger in/out, 1 front and 1 rear USB port
300 Battery pack - spare
34131A Transit case for half-rack 2U high instruments (e.g., 34401A)
34141A Yellow soft carry/operating case
34161A Accessory pouch for 34401A, 33120/250A, 34970A, 53131A, etc.
908 Rackmount kit - 1 unit with blank filler included
909 Rackmount kit for 2 units side by side
A6J ANSI Z540-1-1994 Calibration
A6J ANSI/NCSL Z540 Compliance Calibration
C01 Front calibrator, front sensor
C02 Front calibrator, parallel front and rear sensor
C03 Rear calibrator, parallel front and rear sensor
N1918A Power Analysis Manager -N1918A
N1918A-100 N1918A Power Analyzer (with PC License)
N1918A-200 N1918A Power Analyzer (with USB License Key)
N6902A Standalone Upgrades for N1914A
N6902A-1FP Perpetual License - Code Compatibility for 438A
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year

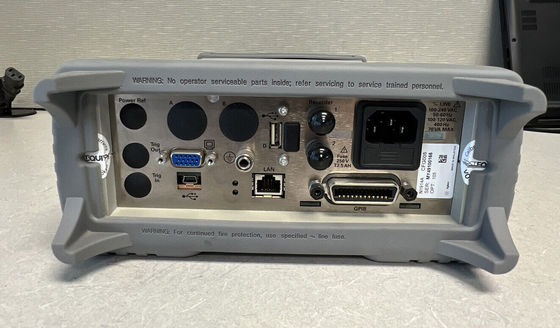

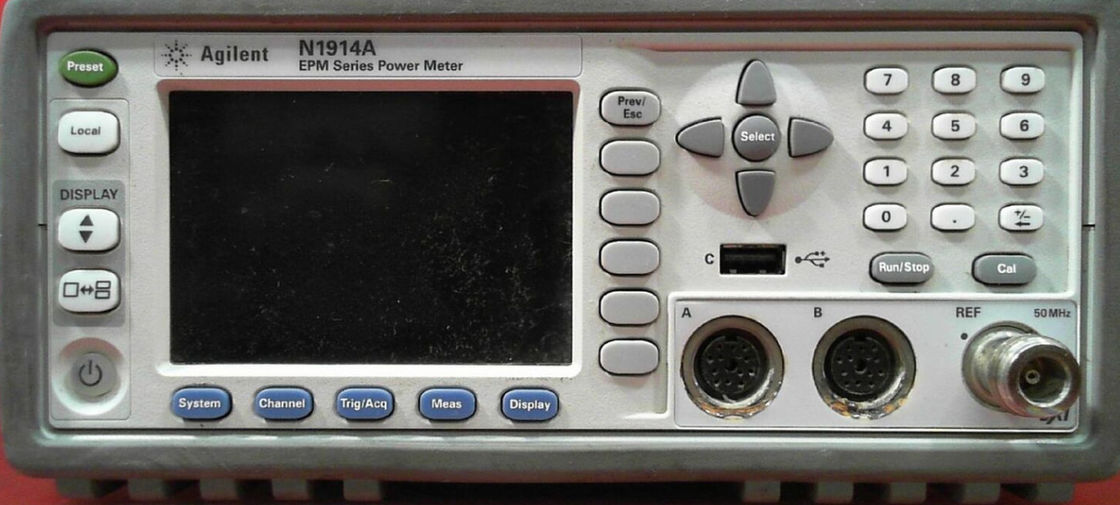

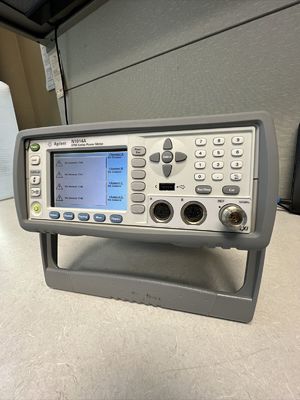

Stable N1914A Agilent Power Meter Single Channel Radio Frequency 0Stable N1914A Agilent Power Meter Single Channel Radio Frequency 1Stable N1914A Agilent Power Meter Single Channel Radio Frequency 2







FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
