Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband

Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband

  • Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband
  • Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband
  • Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband
  • Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband
Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband
Product Details:
Place of Origin: Malaysia
Brand Name: Agilent
Certification: FCC
Model Number: 53147A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Single Channel Power Meter Form Factor: Plug-In
Video Bandwidth: 400 MHz Measurement Frequency Range: 200 (400)MHz To 4 GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

DVM RF Power Meter

,

20GHz RF Power Meter

,

Agilent 53147A

53147A Agilent RF Power Meter



Description of 53147A Agilent RF Power Meter

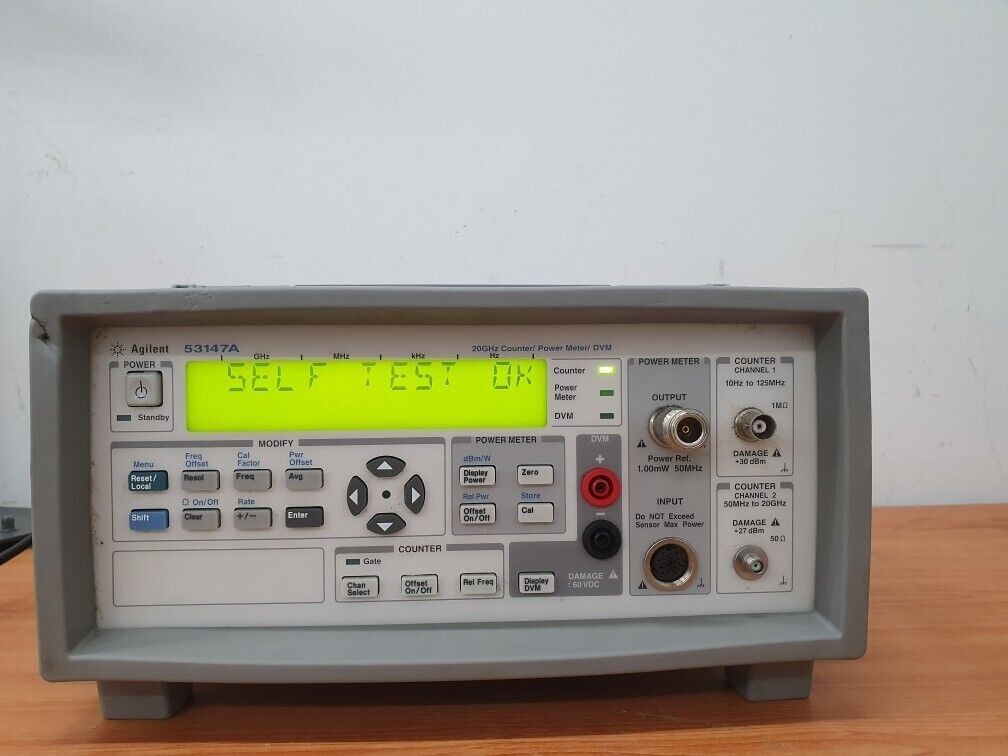

The Agilent 53147A is a full featured 20 GHz CW microwave frequency counter, a true power meter, and a dc DVM. It saves rack space in an ATE system and is ideal for installation and maintenance of point-to-point microwave links.

Features:

  • Single, ultra-wideband CW microwave counter input, 50 MHz to 20 GHz
  • -70 dBm to +44 dBm power meter range with Agilent 8480 series sensors
  • High resolution/accuracy +/- 50 Vdc DVM
  • GPIB and RS-232 interfaces standard



Simplify installation and maintenance of point-topoint microwave links



Whether you are installing or maintaining cell-site to base-station links, business-to-business communication links, digital radio links (along railroads, pipelines or power lines) or even satellite ground stations, installing and maintaining microwave links typically requires three pieces of equipment. These are a CW microwave counter, a true power meter and a dc DVM. The 53140 Series reduces the weight, volume and hassle of carrying multiple pieces of equipment in the field by combining these three instruments into one. Its rubber bumpers make it rugged and ready to withstand the elements. A soft carrying case option makes transit to the field easy and has a pouch for accessory storage. You will not have to worry about ac power availability at the site with the 53140 Series’ battery option. Plus its LCD display with a switchable backlite saves on battery life.



List of options



001 High Stability Oven Timebase
002 Internal Batteries and DC Power Input
007 Soft Carrying Case
10833A GPIB Cable, 1 meter
1CM Rackmount Kit
53146A Soft Carrying Case for 5314xA Microwave Counters
82350B PCI High-Performance GPIB Interface Card
82357B USB/GPIB Interface High-Speed USB 2.0
E5810A LAN/GPIB Gateway
PS-S10 Remote scheduled productivity assistance. Select 1 to 999 hours.
PS-S20 Startup assistance
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year



Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband 0Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband 1Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband 2Agilent 53147A RF Power Meter Microwave Counter DVM 20GHz Ultra Wideband 3
