SRS Stanford Research Systems Model SRS540 Optical Chopper Controller 4 Hz to 3.7 kHz

Description of SRS Stanford Research Systems SRS540 Optical Chopper Controller

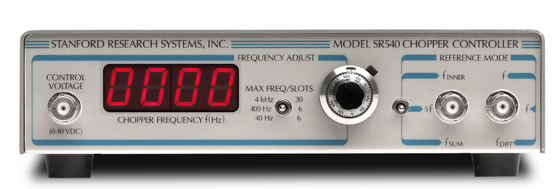

The SR540 chopper will handle all your optical chopping requirements—from simple measurements to dual-beam and intermodulation experiments. The SR540 has a 4-digit frequency display, front-panel frequency control, analog voltage frequency control and two reference outputs with selectable operating modes

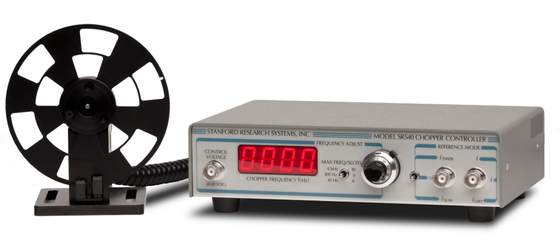

The SR540 chopper will handle all your optical chopping requirements—from simple measurements to dual-beam and intermodulation experiments. The SR540 has a 4-digit frequency display, front-panel frequency control, analog voltage frequency control and two reference outputs with selectable operating modes. Two anodized aluminum blades are provided: a 5/6 slot blade for frequencies up to 400 Hz, and a 25/30 slot blade for frequencies up to 3.7 kHz. Reference outputs are provided for frequencies corresponding to each row of slots, as well as the sum and difference frequencies.

Features of SRS Stanford Research Systems SRS540 Optical Chopper Controller

Optical Chopper Applications

Single-Beam Experiment

In this application, a single optical beam is chopped by the outer row of slots, and the reference output from the right BNC is used to lock the lock-in amplifier to the chop frequency. The inner row of slots could also be used, in which case the left BNC would be the reference output. In either case, the REFERENCE MODE switch is in the “up” position.

Dual-Beam Experiment

In this arrangement, the output from a single source is split and chopped at two different frequencies by the two rows of chopper slots. One beam passes through the experiment while the other is used as a reference beam. The beams are recombined and sent to the same detector. Two lock-ins are used to detect the signals at ƒinner, corresponding to the experimental signal, and ƒouter, corresponding to the reference beam. If the detected signal in the experimental arm is ratioed to the detected signal in the control arm, then effects due to changing source intensity and detector efficiency are removed.

Specification of SRS540

Ordering Information for SRS540

SR540 Optical chopper

O5402530 25/30 dual-slot replacement blade

O54056 5/6 dual-slot replacement blade

O5405 5-slot replacement blade

O54030 30-slot replacement blade

O540RCH Replacement chopper head
