Keysight 4338B Agilent Milliohm Meter 1KHz AC Measurement 34MS

Keysight 4338B Agilent Milliohm Meter 1KHz AC Measurement 34MS

  • Keysight 4338B Agilent Milliohm Meter 1KHz AC Measurement 34MS
  • Keysight 4338B Agilent Milliohm Meter 1KHz AC Measurement 34MS
Keysight 4338B Agilent Milliohm Meter 1KHz AC Measurement 34MS
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: 4338B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Milliohmmeter Form Factor: Benchtop/Rackmount ( /1CM )
Measurements: Current/Resistance/Volts (AC) Connectivity: GPIB / USB
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

4338B Agilent Milliohm Meter

,

1KHz Agilent Milliohm Meter

,

Rackmount 4338B Milliohmmeter

Keysight Agilent 4338B Milliohmmeter 1 KHz Ac Measurement 34 Ms



Description of Keysight Agilent 4338B

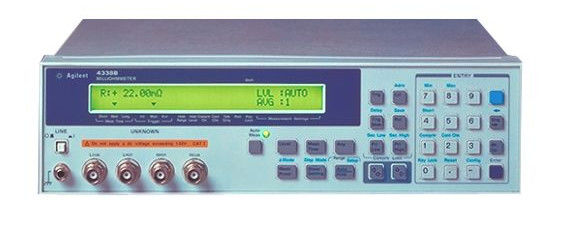

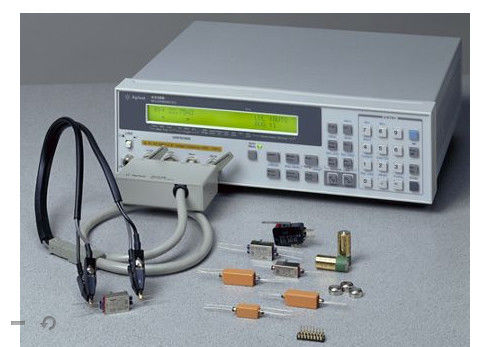

The HP 4338B milliohmmeter is a precise, reliable, high-speed test tool for measurements of low resistance. Contact failure of electromechanical components in a low-current circuit is a key issue for component reliability. The HP 4338B offers selectable low ac test signals(1uA to 10mA). Users can now characterize low resistances of electromechanical components under low-current conditions. A high resolution of 10uohm allows you to determine the slightest differences in contact resistance testing of relays, switches, connectors, PC board traces and cables. The 1kHz test signal eliminates potential errors introduced by thermoelectric effects on the device-under-test(DUT) contacts. The 1kHz test signal is the best solution to evaluate the internal resistance of batteries, because it avoids dc energy consumption.





Overview and Features of 4338B Milliohmmeter



Test current levels

  • Low and selectable test signal current: 1uA to 10 mA

Measurement Range / Time

  • Wide measurement range: 10u ohm to 100 k ohm
  • High-speed measurement: 34 ms

Frequency

  • 1 kHz ac measurement

More Features

  • 10u ohm resolution
  • Contact check function
  • Built-in comparator
  • Auto-measurement mode



List of Options
0B0 Do not include manuals
0B1 Add Manual Set
16006A ACY TO OPT 16143B
16044A SMD LCR Kelvin Contact Test Fixture
16143B MATING CABLE (0.6m)
16338A Test Lead Kit
1A7 ISO 17025 compliant calibration
1BN Military Standard 45662A Calibration Certification
1BP Military Standard 45662A Calibration with Test Data
1CM Rack mount kit
1CN Front handle kit
42030A Four Terminal Pair Standard Resistor Set
42091A Short Termination (4-Terminal Pair)
800 Standard milliohm meter
82357B USB/GPIB Interface High-Speed USB 2.0
A6J ANSI Z540 compliant calibration
AB0 Taiwan Quick Users Guide (Chinese localization)
AB1 Korea Quick Users Guide (Korean localization)
ABA U.S. Quick Users Guide (English localization)
ABD Germany Quick Users Guide (German localization)
ABF France Quick Users Guide (French localization)
ABJ Japan Quick Users Guide (Japanese localization)
ATO Milliohm meter
E5810A LAN/GPIB Gateway
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data





FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
