New Fluke 376 FC True-RMS Clamp Meter with iFlex 1000 V AC or DC in stock

Name: New Fluke 376 FC True-RMS Clamp Meter with iFlex 1000 V AC or DC in stock
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 376FC
Availability: InStock

Brand Name:	Fluke
Model Number:	376FC
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Product Name:

True-RMS Clamp Meter

Condition:

New

Voltage:

To 1000 V AC Or DC

Resistance:

To 60 KΩ

Resolution:

0.1 A

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Product Description

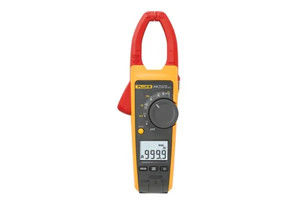

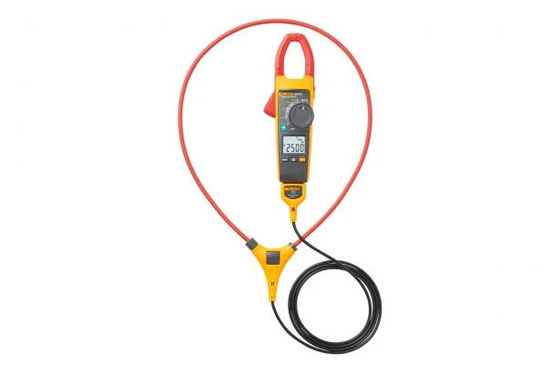

Fluke New Fluke 376 FC True-RMS Clamp Meter with iFlex 1000 V AC or DC

Product overview of Fluke 376 FC True-RMS Clamp Meter with iFlex

The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.

The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.

Features of New Fluke 376 FC True-RMS Clamp Meter

Voltage to 1000 V AC or DC
Resistance to 60 kΩ with continuity detection
Min, max, average, and inrush recording to capture variations automatically
500 mV DC measurement range to interface with other accessories
1000 μF capacitance measurement
Work safely and conveniently
The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.

Specification of New Fluke 376 FC True-RMS Clamp Meter

General Specifications
AC Current via Jaw
Range				999.9 A
Resolution				0.1 A
Accuracy				2% ±5 digits (10 Hz to 100 Hz)
				2.5% ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz)				3 @ 500 A
				2.5 @ 600 A
				Add 2% for C.F. >2
AC Current via Flexible Current Probe
Range				2500 A
Resolution				0.1 A (≤ 600 A)
				1 A (≤ 2500 A)
Accuracy				3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)				3.0 at 1100 A
				2.5 at 1400 A
				1.42 at 2500 A
				Add 2% for C.F. > 2

	i2500-10 Flex		i2500-18 Flex		i2500-36 Flex
A
Distance from Optimum	0.5 in (12.7 mm)		1.4 in (35.6 mm)		4.8 in (122.2 mm)
Error	±0.5 %		±0.5 %		±0.5 %
B
Distance from Optimum	0.8 in (20.3 mm)		2.0 in (50.8 mm)		5.3 in (133.6 mm)
Error	±1.0 %		±1.0 %		±1.0 %
C
Distance from Optimum	1.4 in (35.6 mm)		2.5 in (63.5 mm)		5.8 in (147.6 mm)
Error	±2.0 %		±2.0 %		±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range		999.9 A
Resolution		0.1 A
Accuracy		2% ±5 digits
AC Voltage
Range		1000 V
Resolution		0.1 V (≤600.0 V)
		1 V (≤1000 V)
Accuracy		1% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range		1000 V
Resolution		0.1 V (≤600.0 V)
		1 V (≤1000 V)
Accuracy		1% ±5 digits
mV dc
Range		500.0 mV
Resolution		0.1 mV
Accuracy		1% ±5 digits
Frequency via Jaw
Range		5.0 Hz to 500.0 Hz
Resolution		0.1 Hz
Accuracy		0.5% ±5 digits
Trigger level		5 Hz to 10 Hz, ≥10 A
		10 Hz to 100 Hz, ≥5 A
		100 Hz to 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range		5.0 Hz to 500.0 Hz
Resolution		0.1 Hz
Accuracy		0.5% ±5 digits
Trigger level		5 Hz to 20 Hz, ≥25 A
		20 Hz to 100 Hz, ≥20 A
		100 Hz to 500 Hz, ≥25 A
Resistance
Range		60 kΩ
Resolution		0.1 Ω (≤600 Ω)
		1 Ω (≤6000 Ω)
		10 Ω (≤60 kΩ)
Accuracy		1% ±5 digits
Capacitance
Range		1000 μF
Resolution		0.1 μF (≤ 100 μF)
		1 μ F (≤ 1000 μF)
Accuracy		1% ±4 digits

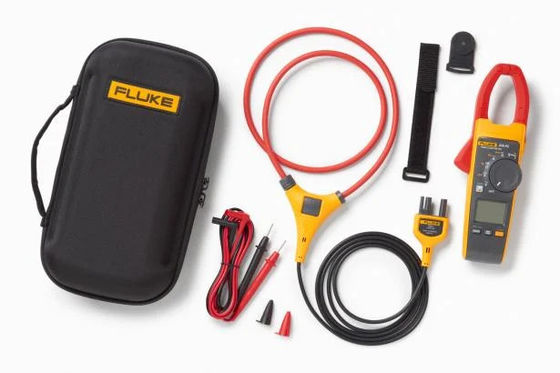

Models of Fluke 376 FC True-RMS Clamp Meter with iFlex

Fluke 376 FC with 18-inch iFlex

Includes:

Fluke 376 FC True-RMS Clamp Meter
18-inch iFlex® Flexible Current Probe
TPAK magnetic hanging strap
TL75 Test Leads
Two AA batteries (Installed)
Soft carrying case
Coated instruction card
Safety information sheet

Fluke 376 FC with 36-inch iFlex

Includes:

Fluke 376 FC True-RMS Clamp Meter
36-inch iFlex® Flexible Current Probe
TPAK magnetic hanging strap
TL75 Test Leads
Two AA batteries (Installed)
Soft carrying case
Coated instruction card
Safety information sheet

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
