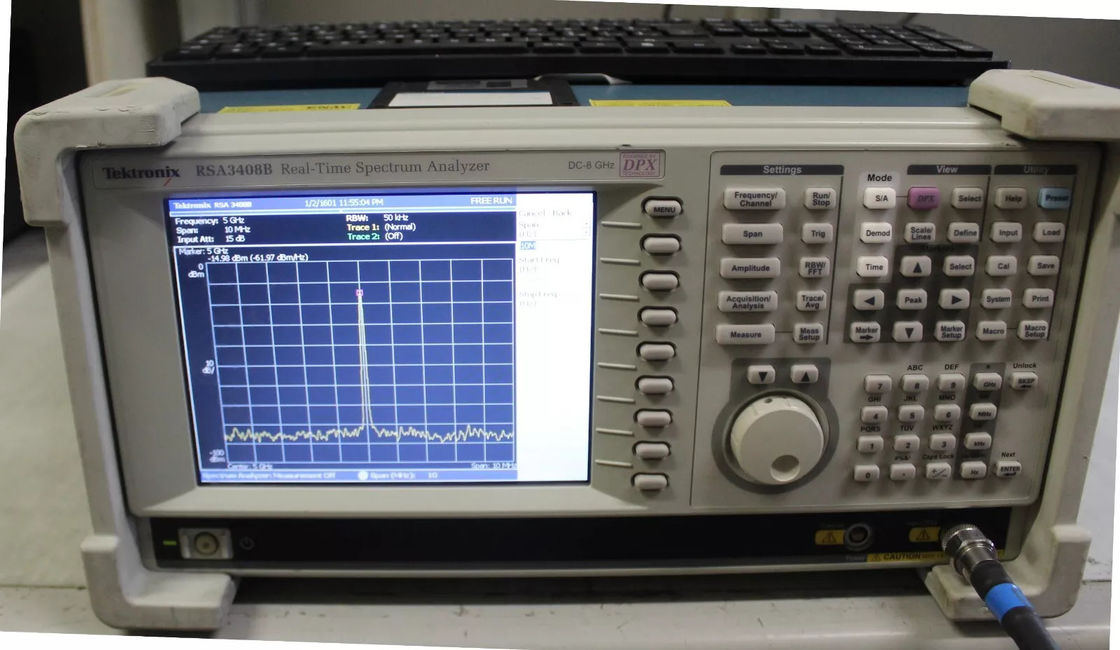

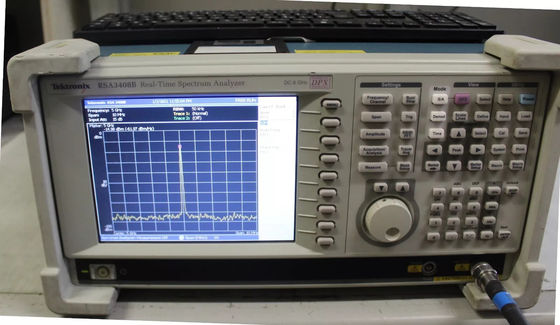

Tektronix RSA3408B DC - 8 GHZ REAL TIME SPECTRUM ANALYZER, 36 MHZ BANDWIDTH

Name: Tektronix RSA3408B DC - 8 GHZ REAL TIME SPECTRUM ANALYZER, 36 MHZ BANDWIDTH
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: RSA3408B
Availability: InStock

Brand Name:	Tektronix
Model Number:	RSA3408B
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Certification:

ISO17025

Document:

Tektronix RSA3408B.pdf

Product Name:

Spectrum Analyzer

Form Factor:

Benchtop

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Product Description

Tektronix RSA3408B DC - 8 GHZ REAL TIME SPECTRUM ANALYZER, 36 MHZ BANDWIDTH

Description of Tektronix RSA3408B

The RSA3000B Series captures a continuous time record of changing RF events and enable time-correlated analysis in the frequency, time and modulation domains with a single acquisition.

The RSA3408B makes it easy for you to discover design issues that other signal analyzers miss. The revolutionary DPX spectrum display offers an intuitive live color view of signal transients changing over time in the frequency domain, giving you immediate confidence in the stability of your design or instantly displaying a fault when it occurs. This live display of transients is impossible with other signal analyzers. Once a problem is discovered with DPX, the RSA3408B Real-Time Spectrum Analyzer (RTSA) can be set to trigger on the event in the frequency domain, capture a continuous time record of changing RF events and perform time-correlated analysis in all domains. You get the functionality of a high-performance vector signal analyzer, a spectrum analyzer and the unique discover-trigger-capture-analyze capability of a Real-Time Spectrum Analyzer – all in a single package.

DPX™ Spectrum Processing Provides an Intuitive Understanding of Time-varying RF Signals with Color Graded Displays Based on Frequency of Occurrence
Revolutionary DPX Displays Transients with >48,000 Spectrum Measurements per Second
Tektronix Exclusive Frequency Mask Trigger (FMT) Offers Easy Event-based Capture of Transient RF Signals by Triggering on Any Change in the Frequency Domain
DC to 8 GHz Frequency Range
All Signals in Spans Up to 36 MHz are Captured into Memory
Up to 1.28 s Acquisition Length at 15 MHz Bandwidth Provides Complete Analysis Over Time Without Making Multiple Acquisitions
Fully Pre-selected and Image-free at all Times for Full Dynamic Range at any Capture Bandwidth
Interfaces with TekConnect® Probes for RF Probing
Differential IQ Input Available
Extensive Time-correlated Multidomain Displays Connect Problems in Time, Frequency, Phase and Amplitude for Quicker Understanding of Cause and Effect when Troubleshooting
Power Measurements and Signal Statistics Help You Characterize Components and Systems: ACLR, Power vs Time, CCDF, PDF
Pulse Measurements Including Pulse Width, Duty Cycle and Pulse-to-Pulse Phase
Offline Analysis Available with RSAVu Software

Specifications & Attributes of Tektronix RSA3408B

Form Factor
Benchtop

Application Software
GSM with Edge ( /24 )
HSUPA ( /40 )
TD-SCDMA ( /28 )
1x - EVDO ( /26 )

Frequency
.1GHz - 3 GHz ( /1A )
8 GHz

List of Options of Tektronix RSA3408B

02	65.5 MSAMPLE DEEP MEMORY, FRQUENCY MASK TRIGGER
03	IQ, DIFFERENTIAL IQ INPUTS
05	DIGITAL IQ OUTPUT
06	REMOVABLE HDD
10	Audio Distortion Analysis
1A	Preamp, External, 0.1 GHz to 3 GHz, 20 dB Gain, 6.5 dB NF (customer-installable).
21	ADVANCED MEASUREMENTS SUITE
24	GSM/EDGE ANALYSIS
25	CDMA 1X FORWARD/REVERSE LINK ANALYSIS
26	1X EVDO FORWARD/REVERSE LINK ANALYSIS
28	TD-SCDMA ANALYSIS
29	WLAN 802.1 1A/B/G/N ANALYSIS
30	3GPP RELEASE 99 AND RELEASE 5 UL/DL ANALYSIS
40	3GPP RELEASE 6 (HSUPA UL/DL) ANALYSIS (REQUIRES OPT 30)
A0	NORTH AMERICA
A1	UNIVERSAL EURO
A10	CHINA
A11	India
A12	Brazil
A2	UNITED KINGDOM
A3	AUSTRALIA
A4	240V NORTH AMERICA
A5	SWITZERLAND
A6	JAPAN
A99	NO POWER CORD OR AC ADAPTER
C3	CALIBRATION SERVICE 3 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 2
C5	CALIBRATION SERVICE 5 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 4
D1	CALIBRATION DATA REPORT
D3	CALIBRATION DATA REPORT 3 YEARS (WITH OPTION C3)
D5	CALIBRATION DATA REPORT 5 YEARS (WITH OPTION C5)
DDU	ACTIVATE SOFTWARE OPTIONS
G3	Three Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others
G5	Five Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others
IF	Installation labor for RSA34BUPxx (no calibration required).
IFC	Installation labor for RSA34BUPxx (with calibration).
L0	ENGLISH MANUAL
L10	RUSSIAN MANUAL
L5	JAPANESE MANUAL
R3	REPAIR SERVICE 3 YEARS (INCLUDING WARRANTY)
R3DW	Repair Service Coverage 3 years (includes product warranty period) 3 year period starts at time of customer instrument purchase
R5	REPAIR SERVICE 5 YEARS (INCLUDING WARRANTY)
R5DW	Repair Service Coverage 5 years (includes product warranty period) 5 year period starts at time of customer instrument purchase
RCN	REMOVE SOFTWARE OPTIONS

Our service:

1.One-stop service from manufacture to shipping.

2.Your inquiry related to our products or prices will be replied in 24hours.
3.Well-trained and experienced staffs to answer all your enquires influent English.
4.Distributor ship is offered for your unique desigh and some our current models.
5.Protection of your sales area, ideas of design and all your private information.

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below.
