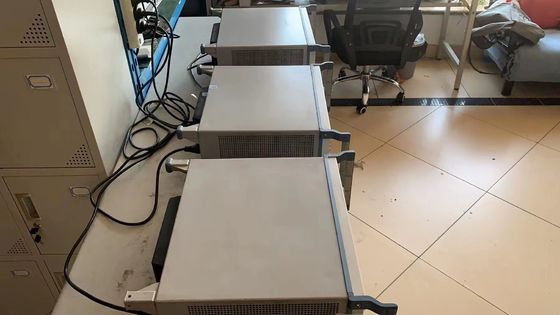

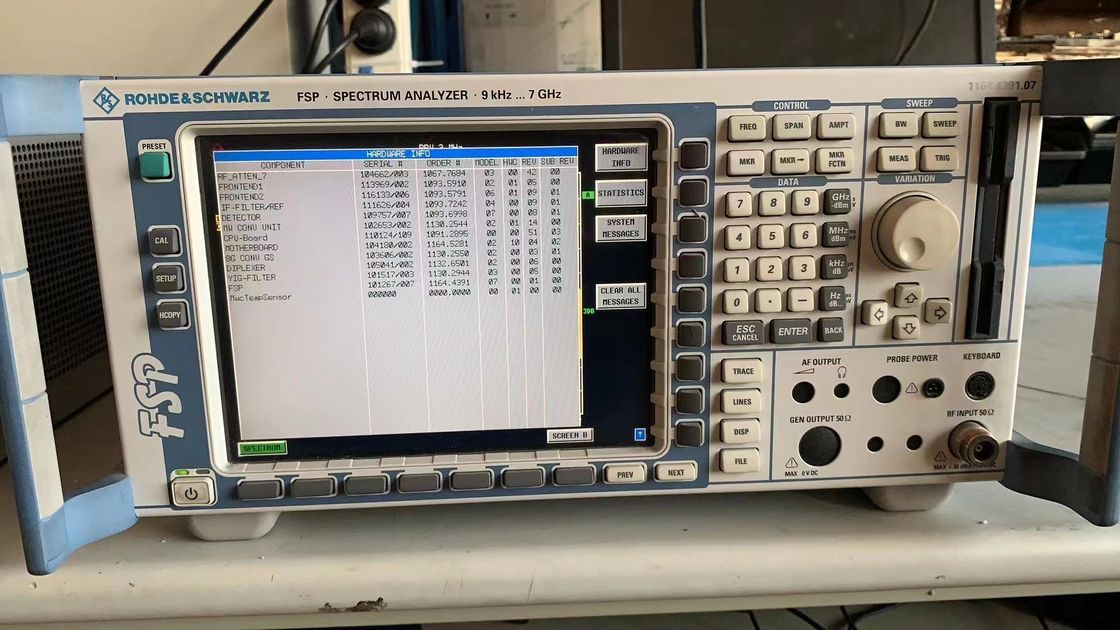

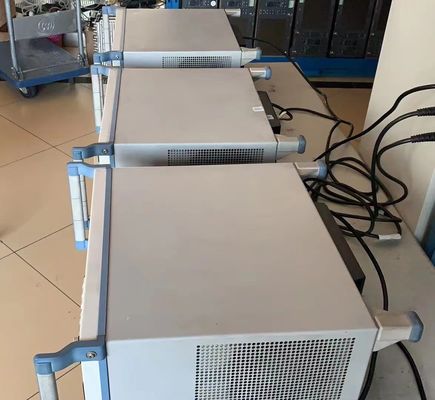

Rohde and Schwarz FSP7 RF Spectrum Analyzer 9 KHz to 7 GHz Benchtop Portable with -155 dBm Noise Level

Name: Rohde and Schwarz FSP7 RF Spectrum Analyzer 9 KHz to 7 GHz Benchtop Portable with -155 dBm Noise Level
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: FSP7
Availability: InStock

Brand Name:	Rohde and Schwarz
Model Number:	FSP7
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Czech Republic

Certification:

FCC

Product Name:

Spectrum Analyzer

Frequency:

9 KHz To 7 GHz

Form Factor:

Benchtop Portable

Average Noise Level:

-155 DBm

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Packaging Details:

Carton

Supply Ability:

in stock

Highlight:

9KHz RF Spectrum Analyzer

7GHz RF Spectrum Analyzer

FSP7

Product Description

Rohde And Schwarz RF Spectrum Analyzer FSP7 9KHz-7GHz Durable

Rohde and Schwarz FSP7 Spectrum Analyzer 9 KHz to 7 GHz

The FSP Spectrum Analyzer is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP stands out for its innovative measurement functions and incorporates proven technology with an all-new hardware design to enable revolutionary performance, reliability, and ease of service.

Key Features

Frequency range 20Hz to 3GHz, 7 GHz, 13 GHz, 30 GHz and 40 GHz
Resolution bandwidth 1 Hz to 10 MHz
Displayed average noise level -155 dBm (1 Hz)
Phase noise -113 dB (1 Hz) at 10 kHz
Additional filters: Channel filters from 100 Hz to 5 MHz and RRC filters; FFT filters from 1Hz to 30 kHz; EMI bandwidths and quasi-peak detector
Total measurement uncertainty 0.5 dB
Measurement routines for TOI, ACP(R), OBW, CCDF, APD, etc. as standard
Fast ACP in time domain
Up to 80 measurements per second (including trace transfer via GPIB)
Electronic attenuator
Application firmware available for GSM/EDGE, Bluetooth, WCDMA/HSDPA/TD-SCDMA, CDMA2000/1xEV-DV/1xEV-DO, WLAN, and more

Specifications & Attributes

Form Factor	Benchtop, Portable
Application Software	Bluetooth (/K8), CDMA2000 (/K83), GSM with Edge (/K5), HSDPA (/K74), Noise Figure (/K3), Phase Noise (/K4), TD-SCDMA (/K76)
Average Noise Level	-155 dBm
Frequency	20 Hz (/B29), 9 KHz - 3 GHz (/B9), 9 KHz - 7 GHz

Available Options

1R - Rack mount Adapter ZZA-94
B1 - Rugged case with variable carrying handle for all FSP models
B10 - External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit
B15 - Pulse calibrator for FSP excludes option FSP-B3
B16 - LAN interface 10/100 base T for FSP 1164.4391.XX and ESPI 1164.6407.XX
B18 - Removable hard disk (factory installed)
B19 - Second hard disk for FSP-B18 incl. analyzer firmware for FSP
B1G - CPU RAM upgrade to 1GB. To upgrade FSP with CPU board (1091.2895.00) with less than 1GB
B20 - Extended environment Spec, Random Vibration 1.9G / 0 - 55°C (not retrofittable)
B25 - Electronic attenuator 0 - 30 dB, 5 dB steps, preamplifier only for FSP3/7
B28 - Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
B29 - 20 Hz frequency extension to FSP3 and FSP7 Not retrofittable
B3 - Audio demodulator AM/FM for FSP internal speaker, control and phones connection
B30 - DC power supply 12 - 28 V for FSP spectrum analyzer and ESPI test receiver
B31 - NiMH battery pack + charger for FSP and ESPI requires FSP-B1 and FSP-B30
B32 - Spare battery pack (NiMH) for FSP spectrum analyzer and ESPI test receiver
B33 - USB mass memory write protection, disables writing to USB memory sticks (ex factory only)
B4 - OCXO 10 MHz for FSP
B512 - CPU RAM upgrade to 512MB for instruments CPU board 1091.2808 or 1091.2814
B6 - TV trigger and adjustable RF power trigger (40 dB) for FSP
B70 - Demodulator hardware and memory extension for FS-K72/FS-K73 on FSP
B9 - Tracking generator for FSP 9 kHz - 3 GHz, I/Q modulator
And many more calibration, application firmware, and service options available
