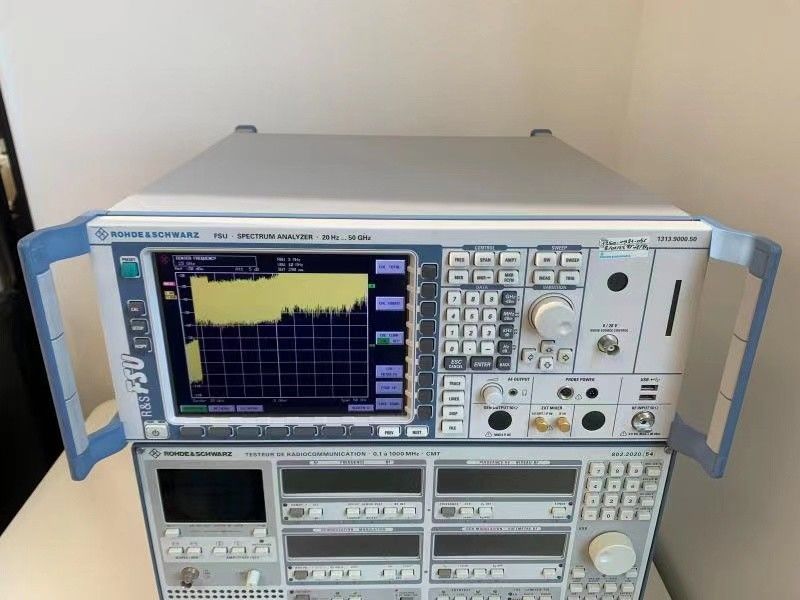

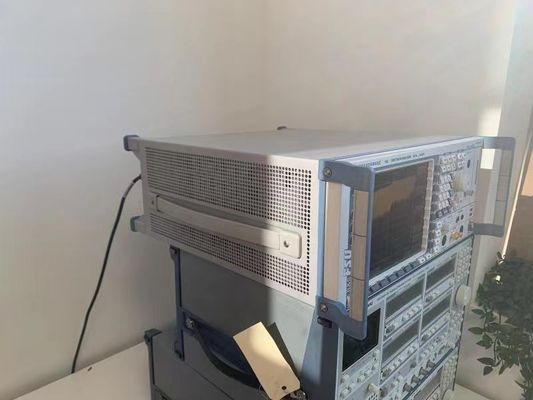

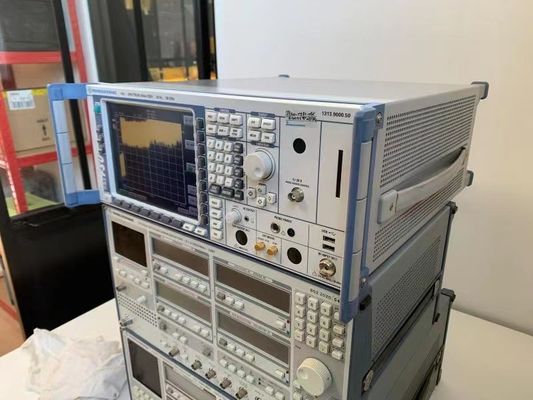

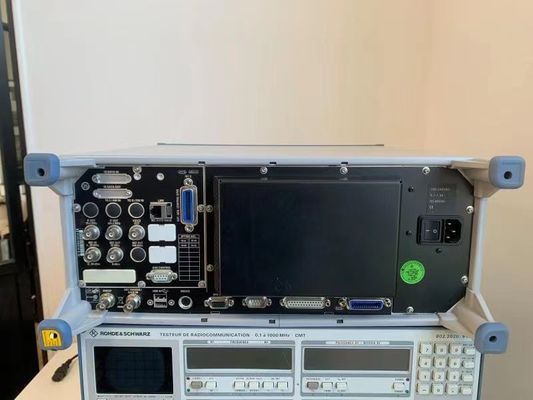

Benchtop Bluetooth Radio Frequency Analyzer , Rohde And Schwarz FSU50

Benchtop Bluetooth Radio Frequency Analyzer , Rohde And Schwarz FSU50

  • Benchtop Bluetooth Radio Frequency Analyzer , Rohde And Schwarz FSU50
  • Benchtop Bluetooth Radio Frequency Analyzer , Rohde And Schwarz FSU50
  • Benchtop Bluetooth Radio Frequency Analyzer , Rohde And Schwarz FSU50
  • Benchtop Bluetooth Radio Frequency Analyzer , Rohde And Schwarz FSU50
Benchtop Bluetooth Radio Frequency Analyzer , Rohde And Schwarz FSU50
Product Details:
Place of Origin: Czech Republic
Brand Name: Rohde and Schwarz
Certification: FCC
Model Number: FSU50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 20 Hz To 50 GHz
Form Factor: Benchtop Average Noise Level: -158 DBm - +25 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Benchtop Radio Frequency Analyzer

,

Bluetooth Radio Frequency Analyzer

,

FSU50

Rohde and Schwarz FSU50 RF Spectrum Analyzer 20 Hz to 50 GHz



Description of FSU50 Spectrum Analyzer



The R&S FSU spectrum analyzers are performance leaders in dynamic range, phase noise, level accuracy and resolution bandwidth- all factors that are essential for the user's ability to design, characterize, and manufacture next generation wireless elements.

Features

  • Frequency Range- 20 Hz to 26.5 GHz
  • DANL- -158dBm (1 Hz RBW)
  • Phase Noise (Typ.)- -133 dBc @ 10 KHz offset (1 Hz RBW)
  • TOI (Typ.) +25 dBm
  • Resolution Bandwidth- 1 Hz to 50 MHz
  • DANL with Preamplifier option B24: typ. -168 dBm (1Hz RBW) @ 20 GHz
  • Fast ACP in time domain
  • Up to 70 measurments per second(including trace transfer via GPIB)
  • Measurement routines for TOI, MC ACP(R), OBW, CCDF, APD, etc. as standard.
  • Application firmware available for GSM/EDGE, Bluetooth, WCDMA/ HSPDA/ TD-SCDMA, CDMA-2000/ 1xEV-DV/ 1xEV-D0, etc.
Specifications & Attributes (Spectrum Analyzers)
Form Factor
Benchtop
Application Software
Bluetooth ( /FS-K8 )
CDMA2000 ( /FS-K83 )
GSM with Edge ( /FS-K5U )
HSDPA ( /FS-K74 )
Noise Figure ( /FS-K30 )
Phase Noise ( /FS-K40 )
TD-SCDMA ( /FS-K77 )
Average Noise Level
-158 dBm - +25 dBm
Frequency
8 MHz ( /B73 )
10 MHz ( /B27 /B4 )
640 MHz ( /B5 )
100 KHz - 3.6 GHz ( /B9 )
10 MHz - 3.6 GHz ( /B25 )
20 Hz - 50 GHz
100 KHz - 50 GHz ( /B24 )
List of Options
B10 External generator control
B12 Output attenuator for tracking generator for FSU, FSQ
B18 Removable Hard Disk (not retrofittable)
B19 Second Hard Disk for FSU-B18 (for FSU-B18,variant 1303.0400.02)
B20 Extended environment specification. Random vibr. 1.9G RMS, 0-55°C (not retrofittable)
B21 LO/ZF connections for external mixers (for FSQ26, FSQ40,FSU26, FSU43, FSU46, FSU50)
B24 Preamplifier 30dB, 100 kHz to 50GHz (for FSMR26/43/50, FSQ26/40, FSU26/43/46/50;
B25 Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6 GHz for FSU, FSQ
B27 FM output, 10 MHz bandwidth
B4 OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
B5 Output for low phase noise 640MHz reference signal for FSU3, FSU8, FSQ3 und FSQ8
B73 Vector signal analysis for FSU demodulation bandwidth 8 MHz (FSU), broadband demodulation hardware included
B9 Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz
C3 Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).
C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).
DCV-2 Documentation of calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
FS-B33 USB mass memory write protection, disables writing to USB memory sticks (ex factory only)
FS-K10 GSM/EDGE/EDGE Evolution Measurement Appl (for FSG/FSQ/FSU)
FS-K110 Analysis of TETRA II / TEDS signals (for FSQ, FSU with option FSU-B73)
FS-K15 VOR/ILS measurements for FSMR
FS-K30 Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU
FS-K40 Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU
FS-K5 Application firmware GSM/EDGE tests for FSP, FSU, FSQ
FS-K5U Upgrade of FS-K5 to FS-K10, GSM/EDGE/EDGE Evolution Measurement Appl (for FSG, FSQ, FSU)
FS-K7 FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU)
FS-K72 Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ
FS-K73 Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ
FS-K73+ 3GPP HSPA+ UE transmitter test, application firmware (for FSMR, FSP, FSQ, FSU, FSUP,
FS-K74 3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ
FS-K74+ 3GPP HSPA plus, base station test. Application firmware (for FSP, FSQ, FSU, FSG;
FS-K76 3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU
FS-K77 3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU
FS-K8 Application firmware for Bluetooth measurement on FSP, FSU and FSQ
FS-K82 CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ
FS-K83 CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU
FS-K84 1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ
FS-K85 1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU
FS-K9 Measurements with NRP power sensors NRP-Z11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4
FSP-B10 External generator control for retrofit of FSP, FSU, FSQ, ESPI, ESCI
FSP-B28 Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
K40 Phase noise measurement application
K7 FM Demodulation
R3 Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
R5 Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
ZZA-411 19" adapter, 4 HU, 1/1 for BW2000 cabinets

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
