| Place of Origin: | Germany |
| Brand Name: | Rohde and Schwarz |
| Certification: | FCC |
| Model Number: | FSP13 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
| Supply Ability: | in stock |
| Product Name: | Spectrum Analyzer | Frequency: | 9 KHz To 13 GHz |
|---|---|---|---|
| Form Factor: | Benchtop | Average Noise Level: | -155 DBm |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |
| High Light: | 9KHz Radio Frequency Spectrum Analyzer,13GHz Radio Frequency Spectrum Analyzer,FSP13 High Frequency Spectrum Analyzer |
||

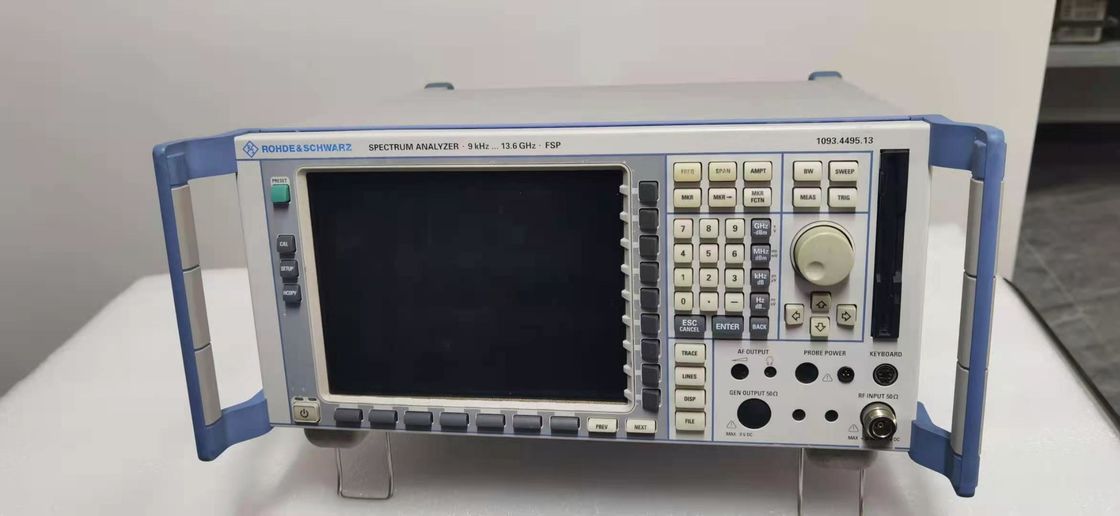

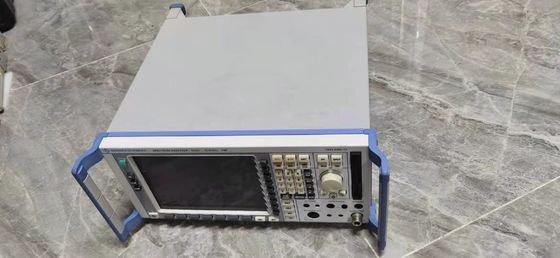

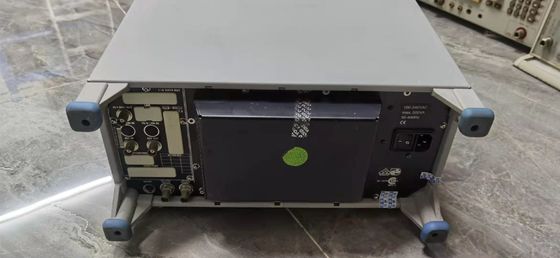

Description of FSP13 Spectrum Analyzer
FSP is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP is outstanding for its innovative measurement functions and incorporates proven technology with an all new hardware design to enable revolutionary performance, reliability and ease of service.
Features
| Form Factor |
|---|
| Benchtop |
| Application Software |
|---|
| Bluetooth ( /FS-K8 ) |
| CDMA2000 ( /K82 ) |
| CDMAONE ( /K82 ) |
| GSM with Edge ( /K5 ) |
| HSDPA ( /K74 ) |
| Noise Figure ( /K3 ) |
| Phase Noise ( /K4 ) |
| TD-SCDMA ( /FS-K77 ) |
| Average Noise Level |
|---|
| -155 dBm |
| Frequency |
|---|
| 20 Hz ( /B29 ) |
| 10 MHz ( /B4 ) |
| 9 KHz - 3 GHz ( /B9 ) |
| 9 KHz - 13 GHz |
| B03 | Audio Demodulator |
| B04 | HIGH STABILITY REFERENCE 10MHz |
| B09 | Tracking Generator |
| B1 | Rugged case with variable carrying handle for all FSP models |
| B10 | External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of |
| B15 | Pulse calibrator for FSP excludes option FSP-B3 |
| B16 | LAN interface 10/100 base T for FSP 1164.4391.XX and ESPI 1164.6407.XX |
| B18 | Removable hard disk with WinXP (factory installed) |
| B19 | Second hard disk for FSP-B18 incl. analyzer firmware for FSP with WinXP |
| B1G | CPU RAM upgrade to 1GB. To upgrade FSP with CPU board (1091.2895.00) with less than 1GB |
| B20 | Extended environment Spec, Random Vibration 1.9G / 0 - 55°C (not retrofittable) |
| B25 | Electronic Attenuator |
| B28 | Trigger port for FSP,FSQ,FSU; for indication of trigger conditions |
| B29 | 20 Hz frequency extension to FSP13 and FSP30 not retrofittable |
| B3 | Audio demodulator AM/FM for FSP internal speaker, control and phones connection |
| B30 | DC power supply 12 - 28 V for FSP spectrum analyzer and ESPI test receiver |
| B31 | NiMH battery pack + charger for FSP and ESPI requires FSP-B1 and FSP-B30 |
| B32 | Spare battery pack (NiMH) for FSP spectrum analyzer and ESPI test receiver |
| B33 | Disabled USB ports, excludes FS-K9 |
| B4 | OCXO 10 MHz for FSP |
| B6 | TV trigger and adjustable RF power trigger (40 dB) for FSP |
| B70 | Demodulator hardware and memory extension for FS-K72/FS-K73 on FSP |
| B9 | Tracking generator for FSP 9 kHz - 3 GHz, I/Q modulator |
| C3 | Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s). |
| C5 | Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s). |
| DCV-2 | Documentation of calibration values |
| DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
| DKD | FSP13 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device) |
| FS-B33 | USB mass memory write protection, disables writing to USB memory sticks (ex factory only) |
| FS-K30 | Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU |
| FS-K40 | Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU |
| FS-K5 | Application firmware GSM/EDGE tests for FSP, FSU, FSQ |
| FS-K7 | FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU) |
| FS-K72 | Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ |
| FS-K73 | Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ |
| FS-K73+ | 3GPP HSPA+ UE transmitter test, application firmware (for FSMR, FSP, FSQ, FSU, FSUP, |
| FS-K74 | 3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ |
| FS-K74+ | 3GPP HSPA plus, base station test. Application firmware (for FSP, FSQ, FSU, FSG; |
| FS-K76 | 3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU |
| FS-K77 | 3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU |
| FS-K8 | Application firmware for Bluetooth measurement on FSP, FSU and FSQ |
| FS-K82 | CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ |
| FS-K83 | CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU |
| FS-K84 | 1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ |
| FS-K85 | 1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU |
| FS-K9 | Measurements with NRP power sensors NRP-Z11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4 |
| K3 | Noise Figure Measurement Software |
| K30 | Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU |
| K4 | FS-K4 PHASE NOISE MEASUREMENT S/W |
| K40 | Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU |
| K5 | Application firmware GSM/EDGE tests for FSP, FSU, FSQ |
| K72 | Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ |
| K73 | Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ |
| K74 | 3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ |
| K82 | CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ |
| K84 | 1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ |
| K90 | Application firmware WLAN 802.11A TX tests (EVM, flatness, mask) for FSP |
| K93 | Application firmware for WIMAX 802.16; OFDM/OFDMA measurements |
| R3 | REPAIR SERVICE 3 YEARS |
| R5 | Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
