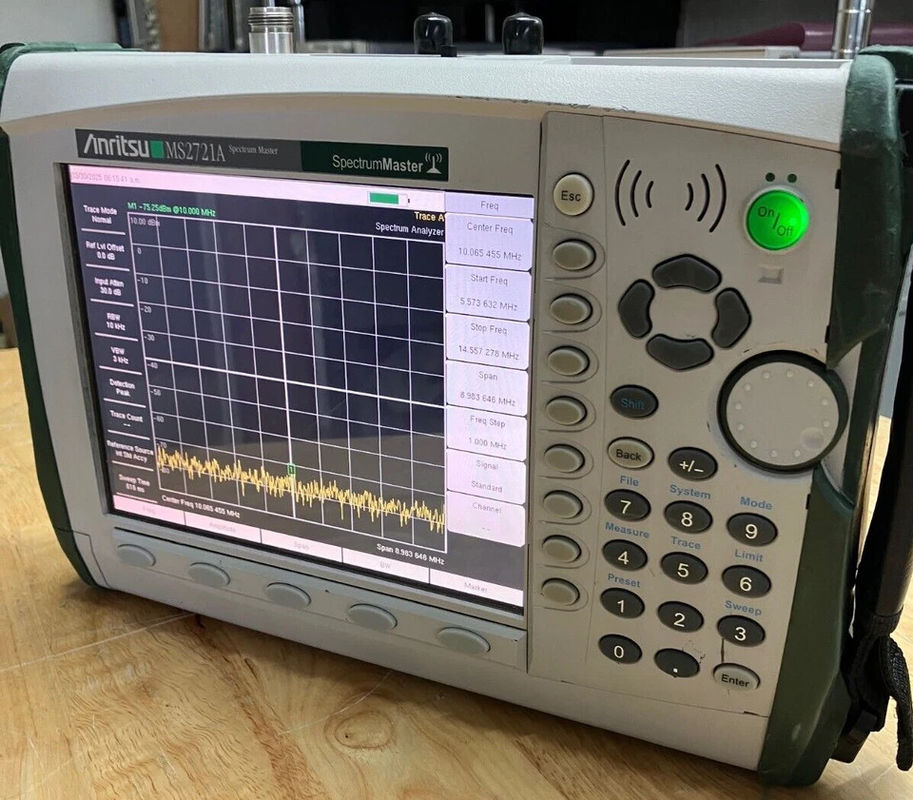

The MS2721A is the first fully-functional handheld spectrum analyzer designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, WiMAX, and wireless medical patient monitoring systems. The MS2721A is ideal for AM and FM broadcast proofing because the wide dynamic range, makes NRSC measurements on analog or IBOC signals easy with no need for an external carrier notch filter. The MS2721A is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 7.1 GHz. Weighing in at less than 7 pounds, it is equally at home on the engineering bench and in the field. Spectrum Master model MS2721A is an entirely new instrument for deploying, maintaining and troubleshooting wireless base stations and Wi-Fi (802.11a, b and g) systems. Options add spectrogram, signal strength and RSSI. There is an option to add user definable channel scanner option that is excellent for interference mitigation work in complicated RF environments. Several smart measurements are built into the MS2721A, including channel power, adjacent channel power ratio, Carrier to Interference ratio (C/I), and field strength. In addition, an AM/FM/SSB demodulator is included. Demodulated signals can be monitored using the internal speaker or by using a universal 2.5 mm 3-wire headset, such as used with many cellular telephones.


Features of  Anritsu  MS2721A Spectrum analyzer 100khz to 7.1Ghz

• Handheld, battery-operated design

• Large daylight viewable transflective color display

• Built in pre-amplifier (standard)

• Lightweight at only 6.9 lbs (typical)

• Best in class Displayed Average Noise Level < -153 dBm typical in a 10 Hz resolution bandwidth at 1 GHz

• Quick Zoom-in, Zoom-out display in 1-2-5 sequence

• RBWs: 10 Hz to 3 MHz in 1-3 sequence

• VBWs: 1 Hz to 3 MHz in 1-3 sequence

• Automatic or manual input attenuator control

• Amplitude Accuracy +/- 0.5 dB typical

• Dedicated smart measurements

• Trace Averaging

• Normal, Max hold, Min hold, user settable averaging (more than 65,000 traces can be averaged!)

• Reference Level Offset

• Three traces

• Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish, Korean, Italian)

• Capability to create two custom languages using Master Software Tools and download the languages into the MS2721A

• Store over 1000 test set-ups internally

• Save over 1000 measurement traces internally

• Save directly to Compact Flash memory

• Alphanumeric labeling of saved measurements

• Automatic time and date stamp of saved data

• Rechargeable/field-replaceable Li-Ion battery

• 6 Markers plus 6 delta markers, or choose 1 marker with 6 delta markers

• Multi-segmented upper and lower limit lines

• 50-ohm Interface standard (75-ohm interface capability - instrument internally corrects for adapter loss)

• RJ45 Ethernet 10/100 Base T and USB 2.0 Interfaces

• AM, FM and SSB demodulation with built-in speaker and headset jack.

The MS2721A spectrum analyzer has low phase noise of -100 dBc/Hz @ 10 kHz offsets, best in its class typical DANL of -153 dBm at 1 GHz, resolution bandwidth (RBW) range of 10 Hz to 3 MHz and video bandwidth (VBW) range of 1 Hz to 3 MHz. It also has the fastest sweep speeds of any spectrum analyzer in its class. The use of external Compact Flash memory modules up to 512 MB allows an unlimited number of traces and setups to be stored. Measurements may be stored directly to the compact flash module. A 512 MB module will hold over 20,000 measurements. Remote programming using the Ethernet 10/100 Base-T connection is provided using SCPI programming. Both the Ethernet connection and the USB 2.0 connection give the user flexibility in remotely operating the instrument using Anritsu''s remote access software, shipped with the product. Measurements and setups may be uploaded and downloaded using either the Ethernet or the USB connection. The MS2721A is shipped with a User''s Guide, a soft carrying case, an AC - DC Adapter, an Automotive Cigarette Lighter/12 Volt DC Adapter, a CD ROM containing Master Software Tools and USB driver, a USB A-mini B cable, an Ethernet Cable, a rechargeable Li-ion battery pack, a 64 MB Compact Flash module, a type-N male to SMA female adapter, a type-N male to BNC female adapter. A wide range of accessories are available including an external dual battery charger, part number 2000-1374.

Specifications & Attributes of Anritsu MS2721A Spectrum analyzer 100khz to 7.1Ghz

List of Options of Anritsu  MS2721A Spectrum analyzer 100khz to 7.1Ghz
