Fluke 1730 BASIC Three-Phase Electrical Energy Logger 1000 V CAT III/600 V CAT IV

Name: Fluke 1730 BASIC Three-Phase Electrical Energy Logger 1000 V CAT III/600 V CAT IV
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 1730
Availability: InStock

Brand Name:	Fluke
Model Number:	1730
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Product Name:

Three-Phase Electrical Energy Logger

Condition:

New

Voltage Range:

1000 V

Number Of Inputs:

Weight:

1.1 Kg (2.5 Lb)

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Product Description

Fluke 1730 BASIC Three-Phase Electrical Energy Logger 1000 V CAT III/600 V CAT IV

Features of Fluke 1730 Three-Phase Electrical Energy Logger

Key measurements: voltage, current, power, power factor and associated values enable energy saving strategies to be implemented
Two USB ports: one for PC connection and another for fast, simple download to standard USB thumb drives, or other USB devices
Comprehensive logging: all measured values are automatically logged and can be reviewed during logging and before downloading for on-the-go analysis. More than 20 separate logging sessions can be stored on the instrument

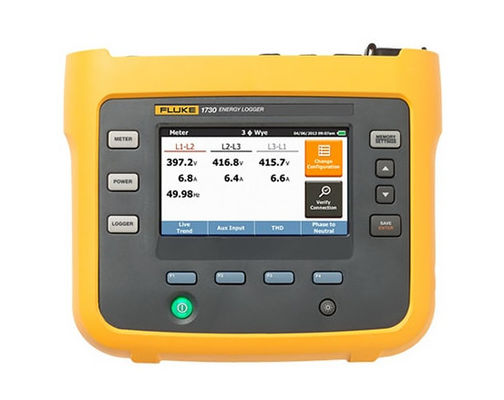

Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display
Optimized user interface: quick, guided, graphical setup ensures you're capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
Complete 'in-the-field' setup through the front panel: no need to return to the workshop for download and setup or to take a computer to the electrical panel
Wide range power: power instrument directly from the measured circuit eliminating the need to find a power outlet while allowing the instrument to be secured safely inside electrical panels
Battery life: four-hour operating time (backup time) per charge on lithium-ion battery
Compact size: designed to fit in tight spaces and panels

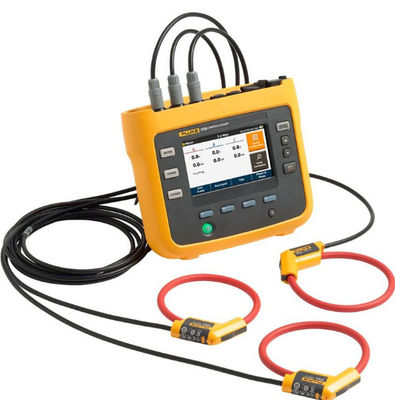

Optimized measurement accessories: flat voltage cable and thin flexible current probes ensure easy installation even in tight spaces
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream

Specification of Fluke 1730 Three-Phase Electrical Energy Logger

Accuracy
Patameter		Range	Resolution	Intrinsic Accuracy at Reference Conditions (% of Reading+% of Full Scale)
Voltage		1000 V	0.1 V	± (0.2 % + 0.01 %)
Current: Direct input	iFlex1500-12	150 A	0.1 A	± (1 % + 0.02 %)
	iFlex1500-12	1500 A	1 A	± (1 % + 0.02 %)
	iFlex1500-24	300 A	1 A	± (1 % + 0.02 %)
	iFlex1500-24	3000 A	10 A	± (1 % + 0.02 %)
	iFlex1500-36	600 A	1 A	± (1.5 % + 0.03 %)
	iFlex1500-36	6000 A	10 A	± (1.5 % + 0.03 %)
	i40s-EL clamp	4 A	1 mA	± (0.7 % + 0.02 %)
	i40s-EL clamp	40 A	10 mA	± (0.7 % + 0.02 %)
Frequency		42.5 Hz to 69 Hz	0.01 Hz	± (0.1 %)
Aux input		± 10 V dc	0.1 mV	± (0.2 % + 0.02 %)
Voltage Min/Max		1000 V	0.1 v	± (1 % + 0.1 %)
Current Min/Max		defined by accessory	defined by accessory	± (5 % + 0.2 %)
Cosϕ/DPF		0 <= Cosϕ <=1	0.01	± 0.025
Power factor		0 <= PF <=1	0.01	± 0.025
THD on voltage		1000%	0.10%	± (2.5 % + 0.05 %)
THD on current		1000%	0.10%	± (2.5 % + 0.05 %)

Ordering information for Fluke 1730

1730/BASIC Three-Phase Electrical Energy logger (excludes current probes).

1730/US Portable Energy Logger US version

1730/EU Portable Energy Logger EU version

1730/INTL Portable Energy Logger INTL version

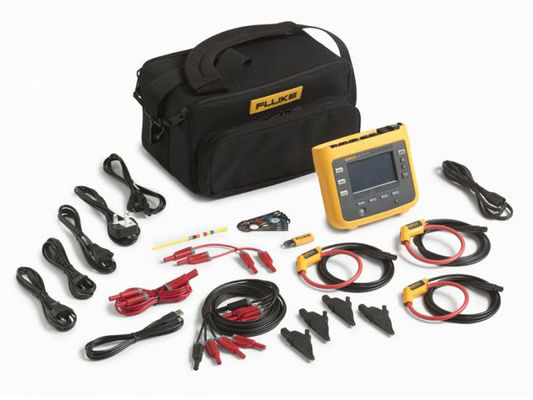

Accessories of Fluke 1730

i1730-flex1500 iFlex flexible current probe 1500A 12 inch

i1730-flex3000 iFlex flexible current probe 3000A 24 inch

i1730-flex6000 iFlex flexible current probe 6000A 36 inch

i40s-EL i40s-EL Clamp-on Current Transformer

i1730-flex1500/3pk iFlex flexible current probe 1500A 12 inch, 3 pack

i1730-flex3000/3pk iFlex flexible current probe 3000A 24 inch, 3 pack

i1730-flex6000/3pk iFlex flexible current probe 6000A 36 inch, 3 pack

i40s-EL/3pk i40s-EL Clamp-on Current Transformer, 3 pack

1730-TL0.1M Test Lead Set; 1000 V CAT III, straight plug; 0.1 m; silicone; red/black

1730-TL2M Test Lead Set, 1000 V CAT III; straight plug; 2 m; PVC red/black

3PHVL-1730 Cable Assembly, Voltage Test Lead 3-Phase+N

C1730 1730 Soft Case

WC100 Color Localization Set

1730-Hanger Hanging strap

1730-Cable AUX input cable

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
