Keysight 53220A 350 MHz Universal Frequency Counter/Timer, 12 digits/s, 100 ps

Name: Keysight 53220A 350 MHz Universal Frequency Counter/Timer, 12 digits/s, 100 ps
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 53220A
Availability: InStock

Brand Name:	Keysight
Model Number:	53220A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Malaysia

Document:

53200 Series of RF and Univ...rs.pdf

Product Name:

Frequency Counter

Frequency:

350MHz

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Packaging Details:

carton

Supply Ability:

in stock

Highlight:

100 ps Universal Frequency Counter/Timer

350 MHz Universal Frequency Counter/Timer

12 digits/s Universal Frequency Counter/Timer

Product Description

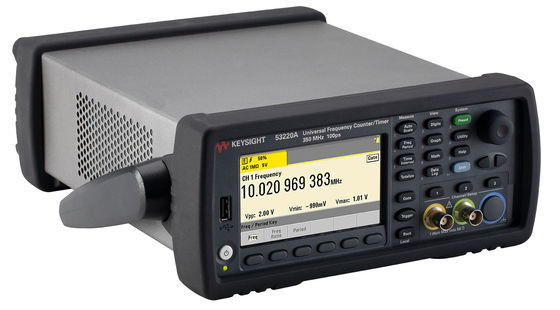

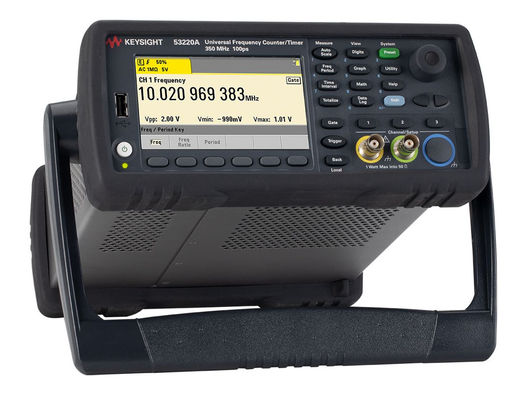

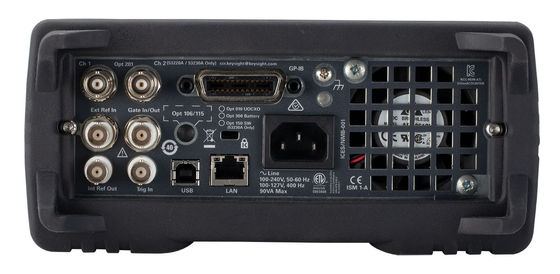

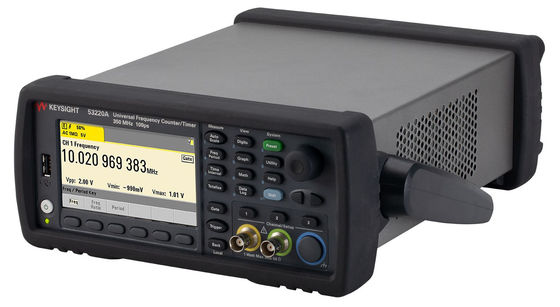

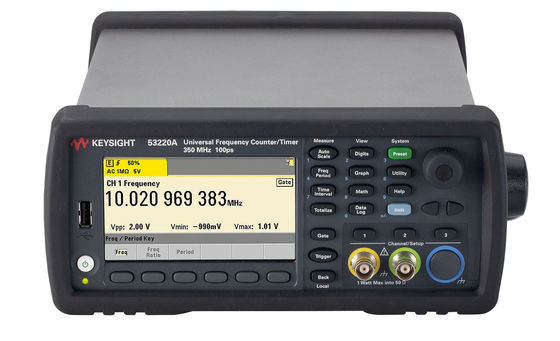

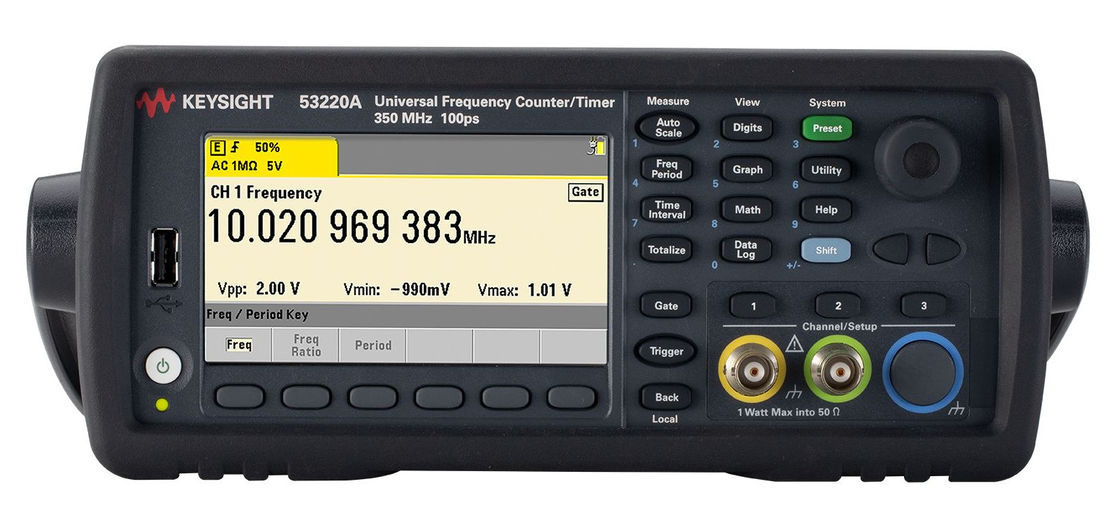

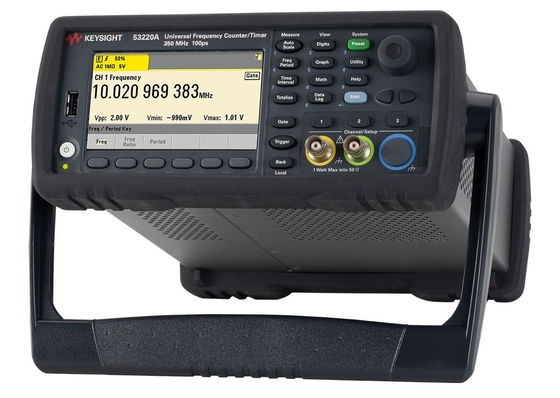

Keysight 53220A 350 MHz Universal Frequency Counter/Timer, 12 digits/s, 100 ps

Description of Keysight 53220A 350 MHz Universal Frequency Counter/Timer, 12 digits/s, 100 ps

The 53220A 350 MHz universal frequency counter/timer is a two-channel frequency counter with the ability to make all the frequency and time interval measurements you depend on. An optional microwave channel can be added to measure 6 or 15 GHz.

Features of Keysight 53220A

Two 350 MHz input channels, plus optional third channel (6 GHz or 15 GHz)
Optional: Lithium Ion Battery
Built-in math analysis and color, graphical display (trend and histogram)
LXI-C/LAN, USB, GPIB
12 digits/second resolution, 100 psec time interval resolution
BenchVue software makes it simple to connect, control instruments, and automate test sequences

Additional Technical Features of Keysight 53220A

More bandwidth
– 350 MHz baseband frequency
– 6- or 15-GHz optional microwave channels

More resolution and speed
– 12 digits/sec
– 20 ps single shot time interval
– Up to 75,000 frequency readings/sec, 90,000 time interval readings/sec
– Up to 1M Sa/sec gap-free frequency/timestamp

More insight
– Datalog trend plot
– Cumulative histogram
– Built-in math analysis and statistics
– 1 M reading memory

More connectivity
– LXI-C/Ethernet LAN
– USB (I/O and memory stick)
– GPIB interface
– Optional battery for timebase accuracy or environments with unstable AC power

List of options of 53220A

Model Numbers
53210A	350 MHz, 10-digit/s RF frequency counter
53220A	350 MHz, 12 digit/s, 100 ps universal frequency counter/time
53230A	350 MHz, 12-digit/s, 20 ps universal frequency counter/timer

Available Options
Option 010	Ultra-high-stability OCXO timebase
Option 106	6 GHz microwave inpu
Option 115	15 GHz microwave inpu
Option 201	Add rear panel parallel inputs for baseband channels
Option 203	Optional microwave input – rear panel SMA(f) connector
Option 300	Add internal lithium ion smart battery and charger for unstable AC power or timebase stability

Recommended Accessories
34190A	Rack mount kit
34194A	Dual-lock link kit
34191A	2U dual flange kit
34131A	Transit case
1250-1476	BNC(f) to Type-N adapter
N2870A	Passive probe, 1:1, 35 MHz, 1.3 m
N2873A	Passive probe, 10:1, 500 MHz, 1.3 m
N2874A	Passive probe, 10:1, 1.5 GHz, 1.3 m

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
