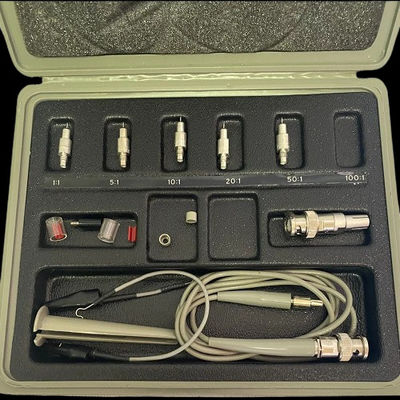

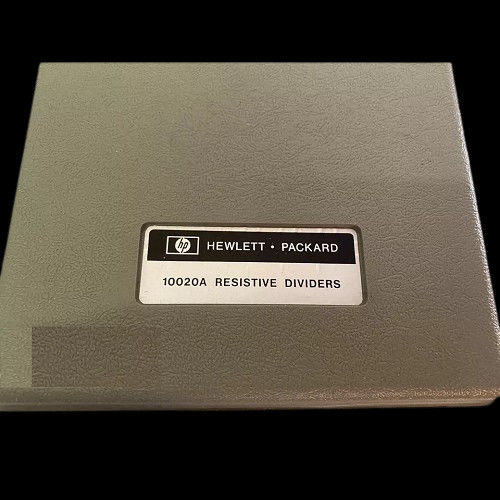

​The Agilent 10020A Resistive Divider Probe Kit is a signal probing system for measuring fast-transition-time signals in high-impedance systems. It is designed for use with 50 © input oscilloscopes, but may be used with other than 50 © systems if a 50 © feedthrough termination such as the Agilent 10100C, is used.

The Agilent 10240B Blocking Capacitor is a probing accessessory that provides ac-coupling while maintaining a 50 ohm system. This capacitor is designed for use with the model 10020A Resistive Divider Kit, but may be used with any probe that must be terminated in 50 ohms.

The Agilent 10229A Hook Tip Adapter is an available accessory.

Features of  Keysight (agilent) 10020a Resistive Divider Probe Kit

• Low input RC provides high-fidelity probing of fast-transition signals
• The Agilent 10218A BNC Adapter allows the Resistive Divider to be connected to a BNC connector
• Use of the Agilent 10240B Blocking Capacitor provides ac-coupling at the divider output
• A spanner tip provides a very short ground lead, which reduces ringing in high-frequency probing
• A special probe handle fits over the short vinyl tip for convenient use
• Output Connector: BNC

Physical Specifications of Keysight (agilent) 10020a Resistive Divider Probe Kit

• Output Connector: BNC.
• Overall Length: Approximately 1.2 m (4 ft).
• Net Weight: 0.45 kg (1 lb).

Electrical Specifications of Keysight (agilent) 10020a Resistive Divider Probe Kit

• Bandwidth: It can achieve a bandwidth of up to 700 MHz, which means it can accurately measure fast - transition - time signals within this frequency range.
• Input Resistance: The input resistance is relatively high, which is beneficial for minimizing the impact on the measured high - impedance circuit and ensuring accurate signal acquisition.
• Output Impedance: The output impedance is 50 ohms, which is suitable for matching with 50 - ohm input oscilloscopes. If a 50 - ohm feed - through termination such as the Keysight 10100C is used, it can also be adapted to other impedance systems.
• Voltage Division Ratio: The specific voltage division ratio is not explicitly given in the common data, but it is designed to reduce high - voltage signals to levels suitable for oscilloscope measurements, helping to protect the oscilloscope from excessive voltage inputs and enabling safe and accurate measurements of high - voltage circuits.

Probe Accessories of Keysight (agilent) 10020a Resistive Divider Probe Kit

• Keysight 10218A BNC Adapter: Allows the resistive divider to be connected to a BNC connector, providing convenience for connecting to different instrument.
• Keysight 10240B Blocking Capacitor: Provides AC - coupling at the divider output while maintaining a 50 - ohm system. This capacitor is designed for use with the 10020A resistive divider kit, but can also be used with other probes that need to be terminated in 50 ohm.
• Spanner Tip: Provides a very short ground lead, which helps reduce ringing in high - frequency probing and improves the accuracy of signal measuremen.
• Special Probe Handle: Fits over the short vinyl tip for convenient use, improving the operability of the prob.
• Keysight 10229A Hook Tip Adapter: It is an optional accessory, which can provide different ways of connecting to the measured object according to specific measurement needs.
