Keysight U1620A Service Oscilloscope, 200 MHz, 2-Channel, Floating Instrument

Name: Keysight U1620A Service Oscilloscope, 200 MHz, 2-Channel, Floating Instrument
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: U1620A
Availability: InStock

Brand Name:	Keysight
Model Number:	U1620A
MOQ:	1 Piece
Price:	Negotiation
Delivery Time:	1~3 Working Days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Malaysia

Certification:

Product Name:

Power Sensor

Frequency Range:

200Mhz

Power Measurements:

-50 DBm To +30 DBm

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Form Factor:

Plug-In

Packaging Details:

Carton

Supply Ability:

In Stock

Highlight:

200 MHz Service Oscilloscope

2-Channel Service Oscilloscope

Floating Instrument Service Oscilloscope

Product Description

Keysight U1620A | Service oscilloscope, 200 MHz, 2-channel, floating

Description of Keysight (Agilent) U1620A

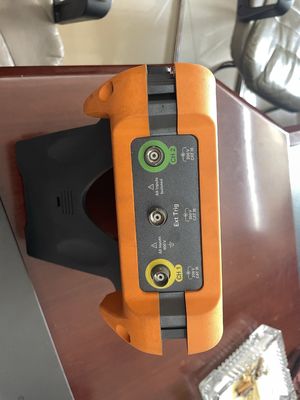

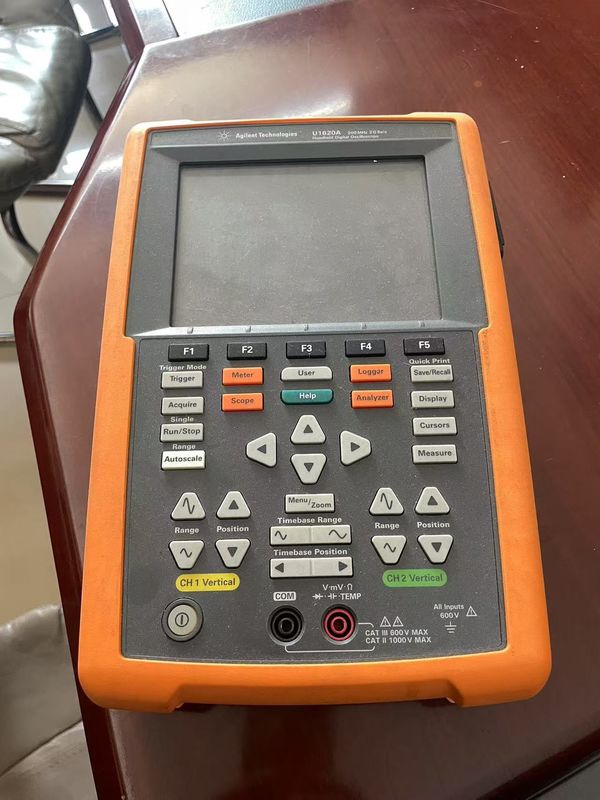

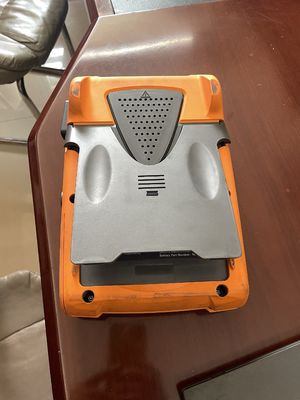

2-channel digital handheld oscilloscope U1620A from Keysight (formerly Agilents electronic measurement technology) with 200MHz bandwidth, 2 MegaPoints memory depth, VGA color display and potential-free inputs.

Bandwidth 200 MHz
2 floating inputs
600 V CAT III channel to channel separation
Storage depth 2 megapoints
Sampling rate 2 GSa / s
Vertical resolution 8 bits
Vertical sensitivity: 2 mV / div to 50 V / div
Trigger system: normal, single, auto
Trigger types: Edge, Glitch, TV, Nth Edge, CAN, LIN
30 automatic measurement functions such as: automatic measurements: delay, duty cycle (+/-), rise / fall time, frequency, period, phase shift, T-max, T-min, width (+/-), amplitude, average, base, peak , Cycle average, maximum, minimum, overshoot, peak-to-peak, undershoot, standard deviation, top, Vrms (AC / DC), active / apparent / reactive power, power factor
Math functions
FFT analysis 1024 points
Brilliant 14.5 cm VGA color display with a wide viewing angle
3 selectable views (indoor, outdoor and night view)
Built-in multimeter and data logger
Resolution 4.5 digits in the digital multimeter
Multimeter functions: voltage DC / AC, current AC / DC, resistance, capacitance, continuity, diode, temperature, frequency
Data logger function to the PC
10 selectable languages for operation (German, English, etc.)
Built-in help system at the push of a button
Storage option: 10 setups and signal data
Interfaces: USB 2.0 full-speed host, USB 2.0 full-speed client
Dimensions W183 x H270 x D65 mm
Weight <2.5 kg

Technical Data

Article number:	U1620A
Bandwidth (MHz):	200
Counter:	No
DVM:	Yes
Dimensions (L x W x H) (mm):	65 x 183 x 270
Function generator:	No
Interfaces:	USB
Model:	U1620A

Our service
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.

FAQ
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
